Axion MSR Unmounted Eye/Face Wash
(Pack of
1.0)

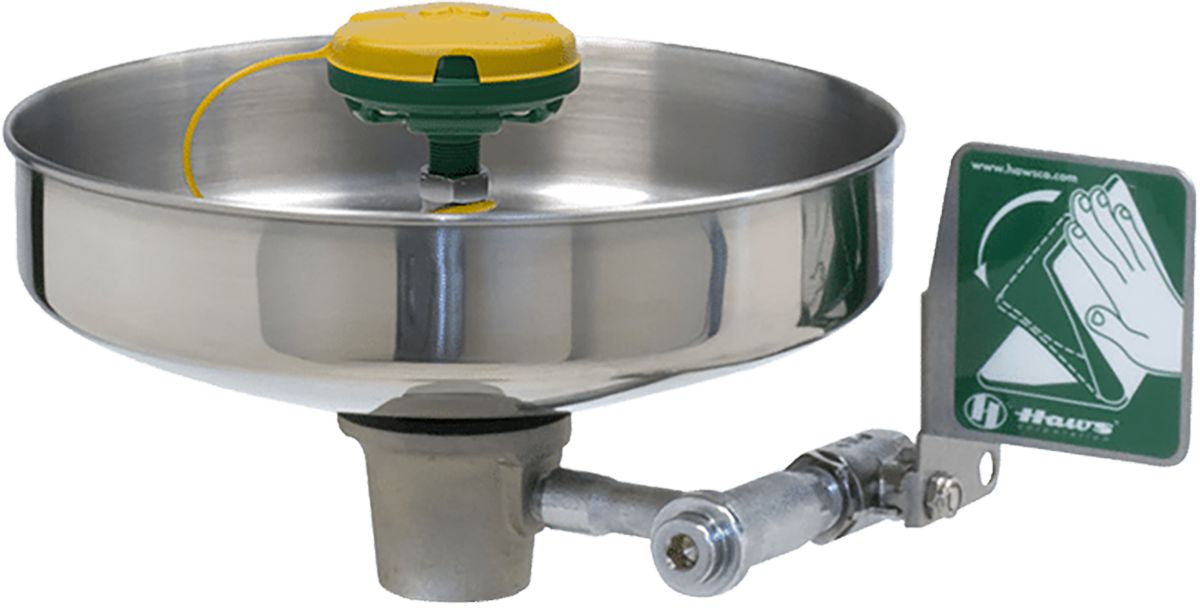

An unmounted eye/face wash includes a stainless steel 11" round bowl. The wash head helps protect against the growth of mold and mildew on the treated components, and features inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 3.7 gpm flow control, and a chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem. Unit also includes a chrome-plated brass in-line 50 x 50 mesh water strainer, yellow plastic pop-off dust cover for eyewash head, universal sign, 1/2" NPT inlet, and 1-1/4" NPT waste.
• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Features a round 11" (27.9 cm) stainless steel receptor
• Includes a mesh in-line strainer to collect line debris, and ball valve with stainless steel ball and stem for durability
• Supply: 1/2" NPT. Waste: 1- 1/4" NPT
• ANSI Z358.1 tempering compliance options
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Axion MSR Wall Mount Eye/Face Wash
Couldn't load pickup availability
Drench Hose Sprays Single Head
Couldn't load pickup availability
Hand Wash Sink with Axion Eye/Face Wash
Couldn't load pickup availability
Friction Tape 3/4" x 60'
Couldn't load pickup availability
Replacement Broom Handle with Threaded Metal End
Couldn't load pickup availability
Acid Brush 3/8 x 5-3/4"
Couldn't load pickup availability
Valve Action® Permanent Paint Marker Orange
Couldn't load pickup availability
Round Tag Brass 1-1/2"
Couldn't load pickup availability
Split Key Ring 1"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Axion MSR Wall Mount Eye/Face Wash
Couldn't load pickup availability
Hand Wash Sink with Axion Eye/Face Wash
Couldn't load pickup availability
Eyewash Station
Couldn't load pickup availability
Product Description
An unmounted eye/face wash includes a stainless steel 11" round bowl. The wash head helps protect against the growth of mold and mildew on the treated components, and features inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 3.7 gpm flow control, and a chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem. Unit also includes a chrome-plated brass in-line 50 x 50 mesh water strainer, yellow plastic pop-off dust cover for eyewash head, universal sign, 1/2" NPT inlet, and 1-1/4" NPT waste.• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Features a round 11" (27.9 cm) stainless steel receptor
• Includes a mesh in-line strainer to collect line debris, and ball valve with stainless steel ball and stem for durability
• Supply: 1/2" NPT. Waste: 1- 1/4" NPT
• ANSI Z358.1 tempering compliance options
Technical Specifications
| Item#: | 1647983 |
|---|---|
| Style | Unmount |
| Type | Eye/Face Wash Station |
| Description | Eye/Face Wash Station |
| Flow Rate | 10 gal/min |
| Water Supply | 1/2" NPT |
| Approvals | ANSI Z358.1-2014, CSA Certified |
| Material | Plastic/Stainless Steel |
| Mount Style | Unmount |
| Color | Silver |
| Eyewash Bowl Diameter | 11 " |
| Width | 15 " |
| Height | 6-1/2 " |
| Eye Wash Material | Plastic |
| Body Material | Stainless Steel |
| Includes | Dust Cover, Identification Sign, Inspection Tag |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 46181810 |
| TAA Compliant: | Yes |
| Weight: | 0.0 lb |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
