Axion MSR Wall Mount Eye/Face Wash Station, Nylon, Chrome-Plated Brass, 3.7 gpm Flow Rate, Yellow, 12 ft
(Pack of
1)
Freeze protected 120 VAC cable heated combination shower and eye/face wash. Includes include ABS plastic 10-5/8" showerhead with integral self-regulating 20 gpm flow control. An eye/face wash head features inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 4 gpm flow control, chrome-plated brass shower and eyewash ball valves equipped with stainless steel ball and stem, separate ball valve activated hose spray, and automatic thermal actuator freeze protection bleed valve. Unit also includes thermostatically controlled electric heat traced cable protected by 3/4" insulation and UV protected ABS green plastic jacket that prevents freezing down to ambient temperatures of -30° F, powder-coated cast-iron 9" diameter floor flange, universal sign, 1-1/4" IPS supply, and rated Class 1, Div 2, Group B, C, and D with a 1.25 amp max.
• For extreme weather conditions dropping down to -30° F (-34.4° C)
• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Universal design allows for top or bottom water supply
• Requires minimal maintenance
• Pre-built and fully pressure tested
• Solid stainless steel pipe stanchion and galvanized fittings make for one sturdy piece of corrosive resistant equipment
• Rated Class 1, Div 2, Group B, C & D. Temperature code T6
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together

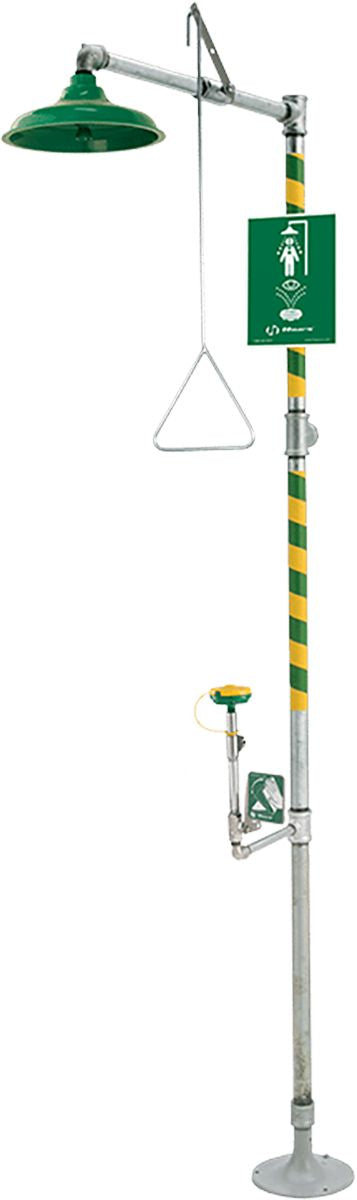

Axion MSR Emergency Shower and Eye/Face Wash
Couldn't load pickup availability
Axion MSR Emergency Shower and Eye/Face Wash
Couldn't load pickup availability
Axion MSR Emergency Shower and Eye/Face Wash
Couldn't load pickup availability
Eye Wash Bottles
Couldn't load pickup availability
Saline Concentrate
Couldn't load pickup availability
Eye Care Treatment Pack
Couldn't load pickup availability
Automotive Refinishing Tape 2" x 60 Yards
Couldn't load pickup availability
General Purpose Duct Tape 2" x 60 Yards
Couldn't load pickup availability
Valve Action® Permanent Paint Marker Red
Couldn't load pickup availability
Laser Lite Ear Plugs
Couldn't load pickup availability
Universal Sorbent Pad
Couldn't load pickup availability
Valve Action® Permanent Paint Marker White
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Product Description
Freeze protected 120 VAC cable heated combination shower and eye/face wash. Includes include ABS plastic 10-5/8" showerhead with integral self-regulating 20 gpm flow control. An eye/face wash head features inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 4 gpm flow control, chrome-plated brass shower and eyewash ball valves equipped with stainless steel ball and stem, separate ball valve activated hose spray, and automatic thermal actuator freeze protection bleed valve. Unit also includes thermostatically controlled electric heat traced cable protected by 3/4" insulation and UV protected ABS green plastic jacket that prevents freezing down to ambient temperatures of -30° F, powder-coated cast-iron 9" diameter floor flange, universal sign, 1-1/4" IPS supply, and rated Class 1, Div 2, Group B, C, and D with a 1.25 amp max.• For extreme weather conditions dropping down to -30° F (-34.4° C)
• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Universal design allows for top or bottom water supply
• Requires minimal maintenance
• Pre-built and fully pressure tested
• Solid stainless steel pipe stanchion and galvanized fittings make for one sturdy piece of corrosive resistant equipment
• Rated Class 1, Div 2, Group B, C & D. Temperature code T6
Technical Specifications
| Item#: | 1648011 |
|---|---|
| Style | Freeze Protected |
| Approvals | ANSI/ISEA Z358.1-2014, CSA Certified |
| Type | Drench Hose |
| Water Supply | 1/2" NPT |
| Includes | AXION MSR Eye/Face Wash Head, Chrome Plated Brass Stay-Open Squeeze Lever Valve, Chrome-Plated Swivel Fitting at One End, Universal Sign |
| Mount Style | Wall |
| Material | Chrome-Plated Brass, Nylon |
| Length | 12 ft |
| Flow Rate | 3.7 gal/min |
| Description | Eye/Face Wash Drench Hose |
| Color | Yellow |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 46181800 |
| TAA Compliant: | Yes |
