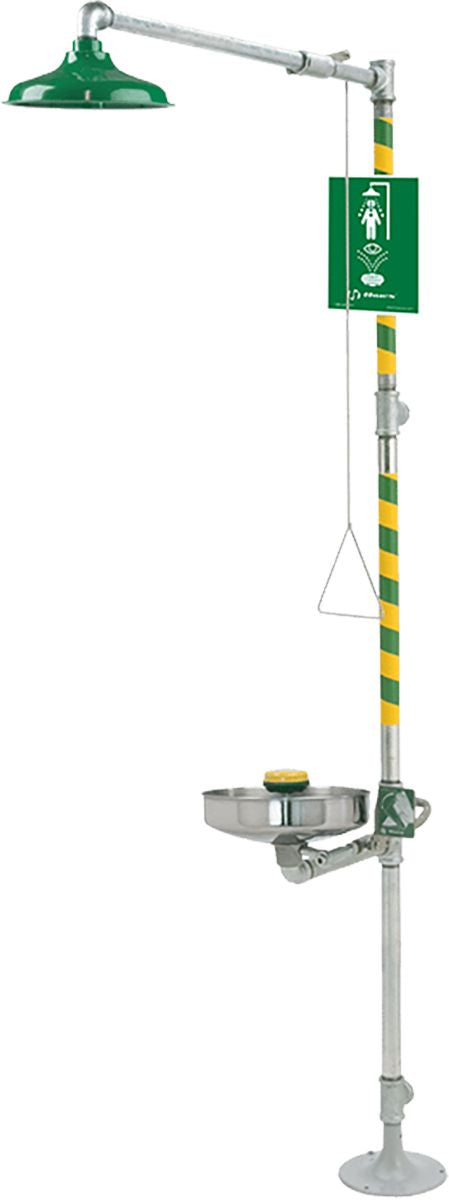

Axion MSR Combination Shower and Eye/Face Wash
(Pack of
1.0)
A barrier-free combination shower and eye/face wash that includes a stainless steel 11" round bowl. An eye/face wash head features an inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 3.7 gpm flow control. Units also include an ABS plastic showerhead with 20 gpm flow control, chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem which requires less than 5lbs push force to operate, and wheel chair accessibility. Included is a Schedule 40 hot-dipped galvanized steel pipe and fittings, powder-coated cast-iron 9" diameter floor flange, yellow plastic pop-off dust cover for eyewash head, self-adhesive high visibility safety green and bright yellow stripes, universal sign, and 1-1/4" NPT supply.
• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Uniform drenching
• Barrier-free design offers a low profile loop assembly allowing for better wheel chair access as well as a longer pull rod for shower activation
• Stainless steel push flag for eyewash activation, a round 11" (27.9 cm) stainless steel bowl, stainless steel pull rod for shower activation, and ball valves with stainless steel ball and stem for durability * Pipe and fitting: 1-1/4" Schedule 40 hot-dipped galvanized steel. Supply and Waste: 1-1/4" NPT
• ANSI Z358.1 tempering compliance options
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Drench Shower/Eye Wash Station Combination
Couldn't load pickup availability
Axion MSR Wall Mount Eye/Face Wash
Couldn't load pickup availability
Axion MSR Combination Corrosion Resistant Shower and Eye/Face Wash
Couldn't load pickup availability
Axion MSR Corrosion Resistant Shower and Eye/Face Wash
Couldn't load pickup availability
Transport Cart
Couldn't load pickup availability
Axion MSR Sink Mount Eye/Face Wash
Couldn't load pickup availability
Universal Sorbent Pad
Couldn't load pickup availability
Magic Monkey
Couldn't load pickup availability
Anti-Rattle/Squeak BRS Tape 8 x 10"
Couldn't load pickup availability
500G Tsunami Grip® Light Coated Gloves
Couldn't load pickup availability
Valve Action® Permanent Paint Marker Black
Couldn't load pickup availability
Valve Action® Permanent Paint Marker Red
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Product Description
A barrier-free combination shower and eye/face wash that includes a stainless steel 11" round bowl. An eye/face wash head features an inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 3.7 gpm flow control. Units also include an ABS plastic showerhead with 20 gpm flow control, chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem which requires less than 5lbs push force to operate, and wheel chair accessibility. Included is a Schedule 40 hot-dipped galvanized steel pipe and fittings, powder-coated cast-iron 9" diameter floor flange, yellow plastic pop-off dust cover for eyewash head, self-adhesive high visibility safety green and bright yellow stripes, universal sign, and 1-1/4" NPT supply.• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Uniform drenching
• Barrier-free design offers a low profile loop assembly allowing for better wheel chair access as well as a longer pull rod for shower activation
• Stainless steel push flag for eyewash activation, a round 11" (27.9 cm) stainless steel bowl, stainless steel pull rod for shower activation, and ball valves with stainless steel ball and stem for durability * Pipe and fitting: 1-1/4" Schedule 40 hot-dipped galvanized steel. Supply and Waste: 1-1/4" NPT
• ANSI Z358.1 tempering compliance options
Technical Specifications
| Item#: | 1648002 |
|---|---|
| Overall Height | 90-3/4 " |
| Style | With Eyewash/Facewash Station |
| Body Material | Stainless Steel |
| Approvals | ANSI/ISEA Z358.1-2014, CSA Certified |
| Type | Drench Shower Combo |
| Drench Shower Material | Plastic |
| Eye Wash Material | Plastic |
| Water Supply | 1-1/4" NPT |
| Includes | AXION MSR Hydrodynamic Showerhead, Inspection Tag, Powder-Coated Cast Iron 9 in Diameter Floor Flange, Self-Adhesive High Visibility Safety Green and Bright Yellow Stripes, Universal Sign |
| Mount Style | Floor |
| Material | Chrome-Plated Brass, Stainless Steel, Plastic |
| Flow Rate | 20 gal/min |
| Description | Shower with Eye/Face Wash Station |
| Color | Silver/Green/Yellow |
| Eyewash Bowl Diameter | 11 " |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 46181810 |
| TAA Compliant: | Yes |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
