Axion MSR Emergency Shower and Eye/Face Wash
(Pack of
1.0)

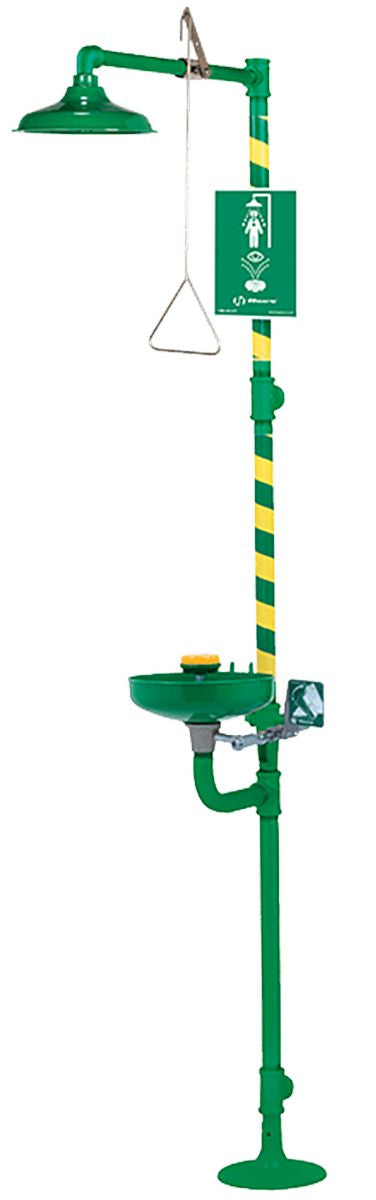

Combination shower and eye/face wash includes a green ABS plastic 11" bowl. An AXION® MSR eye/face wash head features an inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 3.7 gpm flow control. Unit also includes an ABS plastic showerhead with 20 gpm flow control, chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem, and chrome-plated brass in-line 50 x 50 mesh water strainer. Also included is a Schedule 40 hot-dipped galvanized steel pipe and fittings, a cast-iron 9" diameter floor flange all with green corrosion resistant epoxy coating, yellow plastic pop-off dust cover for eyewash head, self-adhesive high visibility safety green and bright yellow stripes, universal sign, and 1-1/4" IPS supply.
• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Uniform drenching
• Stainless steel push flag for eyewash activation, stainless steel pull rod for shower activation, mesh in-line eyewash strainer to collect line debris, and ball valves with stainless steel ball and stem for durability
• Pipe and fitting: 1-1/4" Schedule 40 hot-dipped galvanized steel with green corrosion resistant epoxy coating. Supply and Waste: 1-1/4" IPS
• ANSI Z358.1 tempering compliance options
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Axion MSR Wall Mount Eye/Face Wash
Couldn't load pickup availability
Axion MSR Combination Corrosion Resistant Shower and Eye/Face Wash
Couldn't load pickup availability
Drench Shower/Eye Wash Station Combination
Couldn't load pickup availability
Eye Wash Station Portable Pressurized
Couldn't load pickup availability
Axion MSR Combination Corrosion Resistant Shower and Eye/Face Wash
Couldn't load pickup availability
Axion MSR Wall Mount Eye/Face Wash
Couldn't load pickup availability
Oiler with Rigid Spout 6oz
Couldn't load pickup availability
Hi-Tack Double-Faced Mounting Tape 1" x 30'
Couldn't load pickup availability
Friction Tape 3/4" x 60'
Couldn't load pickup availability
Automotive Refinishing Tape 2" x 60 Yards
Couldn't load pickup availability
Anti-Rattle/Squeak BRS Tape 8 x 10"
Couldn't load pickup availability
Valve Action® Permanent Paint Marker Orange
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Product Description
Combination shower and eye/face wash includes a green ABS plastic 11" bowl. An AXION® MSR eye/face wash head features an inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 3.7 gpm flow control. Unit also includes an ABS plastic showerhead with 20 gpm flow control, chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem, and chrome-plated brass in-line 50 x 50 mesh water strainer. Also included is a Schedule 40 hot-dipped galvanized steel pipe and fittings, a cast-iron 9" diameter floor flange all with green corrosion resistant epoxy coating, yellow plastic pop-off dust cover for eyewash head, self-adhesive high visibility safety green and bright yellow stripes, universal sign, and 1-1/4" IPS supply.• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Uniform drenching
• Stainless steel push flag for eyewash activation, stainless steel pull rod for shower activation, mesh in-line eyewash strainer to collect line debris, and ball valves with stainless steel ball and stem for durability
• Pipe and fitting: 1-1/4" Schedule 40 hot-dipped galvanized steel with green corrosion resistant epoxy coating. Supply and Waste: 1-1/4" IPS
• ANSI Z358.1 tempering compliance options
Technical Specifications
| Item#: | 1648006 |
|---|---|
| Style | Combination Drench Showers and Eye-Face Wash |
| Body Material | Plastic |
| Approvals | ANSI/ISEA Z358.1-2014, CSA Certified |
| Type | Shower with Eye/Face Wash Station |
| Drench Shower Material | Plastic |
| Eye Wash Material | Plastic |
| Water Supply | 1-1/4" IPS |
| Includes | Eye/Face Wash Head, ABS Plastic Showerhead, Green ABS Plastic 11" Bowl, Inspection Tag, Cast Iron 9" Dia. Floor Flange, Sch 40 Gal Steel Pipe/Fittings, Safety Green and Bright Yellow Stripes, Sign, Universal Sign, Yellow Plastic Dust Cover |
| Width | 15 " |
| Mount Style | Floor |
| Material | Plastic/Stainless Steel/Galvanized Steel/Chrome-Plated Brass |
| Flow Rate | 20 gal/min |
| Description | Shower with Eye/Face Wash Station |
| Color | Green/Yellow |
| Height | 93-3/4 " |
| Eyewash Bowl Diameter | 11 " |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 46181810 |
| TAA Compliant: | Yes |
| Weight: | 0.0 lb |
