Axion MSR Emergency Shower and Eye/Face Wash
(Pack of
1.0)

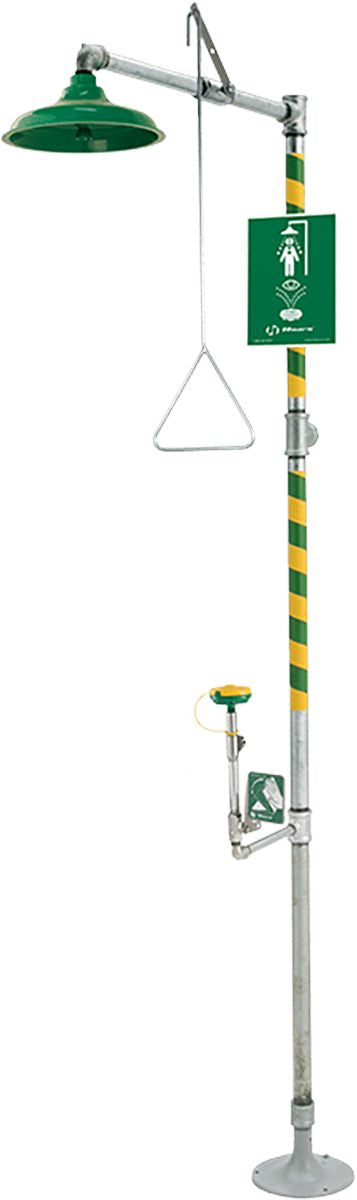

A combination shower and eye/face wash includes an ABS plastic 10-5/8" showerhead with integral self-regulating 20 gpm flow control. An eye/face wash head features an inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 3.7 gpm flow control, chrome-plated brass in-line 50 x 50 mesh water strainer, and chrome-plated brass stay-open shower and eyewash ball valves equipped with stainless steel ball and stem. Unit also includes powder-coated cast iron 9" diameter floor flange, universal sign, self-adhesive high visibility safety green and bright yellow stripes, and 1-1/4" NPT supply.
• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• A great addition to unsafe environments where the eyes, face, and body may be exposed to corrosive materials
• Requires minimal maintenance and is equipped with test card to record weekly testing
• Reducing installation time, eye/face wash and valve assembly is pre-built and fully water/pressure tested
• Solid galvanized steel construction makes for one sturdy piece of emergency equipment
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Axion MSR Wall Mount Eye/Face Wash
Couldn't load pickup availability
Axion MSR Combination Corrosion Resistant Shower and Eye/Face Wash
Couldn't load pickup availability
Drench Shower/Eye Wash Station Combination
Couldn't load pickup availability
Axion MSR Combination Corrosion Resistant Shower and Eye/Face Wash
Couldn't load pickup availability
Axion MSR Wall Mount Eye/Face Wash
Couldn't load pickup availability
Drench Hose Sprays Single Head
Couldn't load pickup availability
Hi-Tack Double-Faced Mounting Tape 1" x 30'
Couldn't load pickup availability
Friction Tape 3/4" x 60'
Couldn't load pickup availability
Replacement Broom Handle with Threaded Metal End
Couldn't load pickup availability
Anti-Rattle/Squeak BRS Tape 8 x 10"
Couldn't load pickup availability
Valve Action® Permanent Paint Marker Orange
Couldn't load pickup availability
Round Tag Brass 1-1/2"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Product Description
A combination shower and eye/face wash includes an ABS plastic 10-5/8" showerhead with integral self-regulating 20 gpm flow control. An eye/face wash head features an inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 3.7 gpm flow control, chrome-plated brass in-line 50 x 50 mesh water strainer, and chrome-plated brass stay-open shower and eyewash ball valves equipped with stainless steel ball and stem. Unit also includes powder-coated cast iron 9" diameter floor flange, universal sign, self-adhesive high visibility safety green and bright yellow stripes, and 1-1/4" NPT supply.• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• A great addition to unsafe environments where the eyes, face, and body may be exposed to corrosive materials
• Requires minimal maintenance and is equipped with test card to record weekly testing
• Reducing installation time, eye/face wash and valve assembly is pre-built and fully water/pressure tested
• Solid galvanized steel construction makes for one sturdy piece of emergency equipment
Technical Specifications
| Item#: | 1648003 |
|---|---|
| Style | Combination Drench Showers and Eye-Face Wash |
| Body Material | Galvanized Steel |
| Approvals | ANSI/ISEA Z358.1-2014, CSA Certified |
| Type | Shower with Eye/Face Wash Station |
| Drench Shower Material | Plastic |
| Water Supply | 1-1/4" NPT |
| Includes | AXION MSR Hydrodynamic Designed Green ABS Plastic 10-5/8 in Showerhead, Inspection Tag, Powder-Coated Cast Iron 9 in Diameter Floor Flange, Self-Adhesive High Visibility Safety Green and Bright Yellow Stripes, Universal Sign |
| Width | 11 " |
| Mount Style | Floor |
| Material | Plastic/Stainless Steel/Galvanized Steel |
| Flow Rate | 20 gal/min |
| Description | Shower with Eye/Face Wash Station |
| Color | Silver/Green/Yellow |
| Height | 94-5/8 " |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 46181810 |
| TAA Compliant: | Yes |
| Weight: | 0.0 lb |
