Axion MSR Wall Mount Eye/Face Wash
(Pack of
1.0)

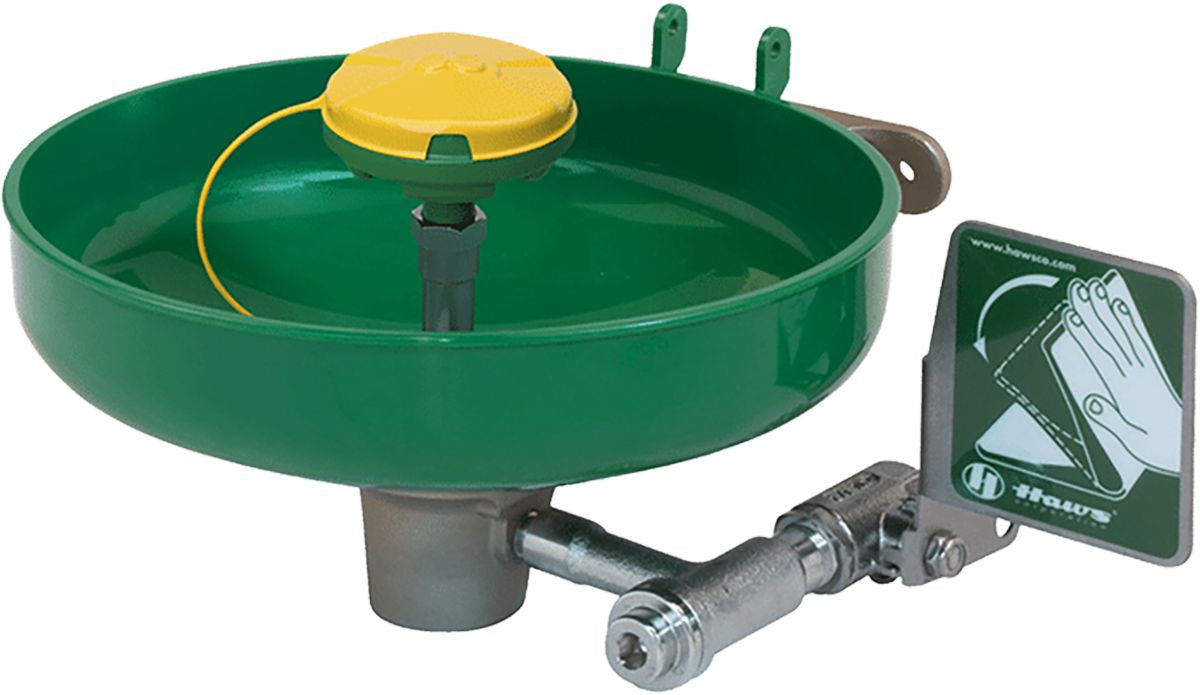

A wall mounted eye/face wash includes a green ABS plastic 11" bowl. The wash head features inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 3.7 gpm flow control, chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem, and chrome-plated brass in-line 50 x 50 mesh water strainer. Unit also includes cast-aluminum chromate protected wall bracket, yellow plastic pop-off dust cover for eyewash head, universal sign, 1/2" NPT inlet, and 1-1/4" NPT waste.
• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Unit features a round 11" (27.9 cm) green ABS plastic receptor and aluminum wall bracket for long life
• Includes a mesh in-line strainer to collect line debris, and ball valve with stainless steel ball and stem for durability
• Supply: 1/2" NPT. Waste: 1- 1/4" NPT * ANSI Z358.1 tempering compliance options
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Wall-Mount Haloâ„¢ Eyewash Station
Couldn't load pickup availability
Axion MSR Emergency Shower and Eyewash
Couldn't load pickup availability
Eye Wash Bottles
Couldn't load pickup availability
WypAll X60 Teri Wiper 12.5 x 13.4"
Couldn't load pickup availability
Pro Line Fire Extinguisher
Couldn't load pickup availability
Universal Three-Ply Heavyweight Sorbent Roll
Couldn't load pickup availability
SafetyPro 8 Mil Nitrile Glove Orange 2X-Large
Couldn't load pickup availability
Prem Org Nitrile Glvs, XLG
Couldn't load pickup availability
BK1 Bearkat Safety Glasses
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
PhysiciansCare Eyewash Station, Single 16 oz. Screw Cap Bottle
Couldn't load pickup availability
Eyewash Station, Double 16 oz. Screw Cap Bottle
Couldn't load pickup availability
Eyewash Station, Single 32 oz. Screw Cap Bottle
Couldn't load pickup availability
Product Description
A wall mounted eye/face wash includes a green ABS plastic 11" bowl. The wash head features inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 3.7 gpm flow control, chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem, and chrome-plated brass in-line 50 x 50 mesh water strainer. Unit also includes cast-aluminum chromate protected wall bracket, yellow plastic pop-off dust cover for eyewash head, universal sign, 1/2" NPT inlet, and 1-1/4" NPT waste.• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Unit features a round 11" (27.9 cm) green ABS plastic receptor and aluminum wall bracket for long life
• Includes a mesh in-line strainer to collect line debris, and ball valve with stainless steel ball and stem for durability
• Supply: 1/2" NPT. Waste: 1- 1/4" NPT * ANSI Z358.1 tempering compliance options
Technical Specifications
| Item#: | 1647976 |
|---|---|
| Style | Wall Mount |
| Type | Eye/Face Wash Station |
| Description | Eye/Face Wash Station |
| Flow Rate | 10 gal/min |
| Water Supply | 1/2" NPT |
| Approvals | ANSI/ISEA Z358.1, CSA Certified |
| Material | Plastic/Chrome-Plated Brass/Stainless Steel |
| Mount Style | Wall |
| Color | Green |
| Eyewash Bowl Diameter | 11 " |
| Width | 14-1/2 " |
| Height | 7 " |
| Eye Wash Material | Plastic |
| Body Material | Plastic |
| Includes | Dust Cover, Identification Sign, Inspection Tag, Wall Bracket |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 46181810 |
| TAA Compliant: | Yes |
