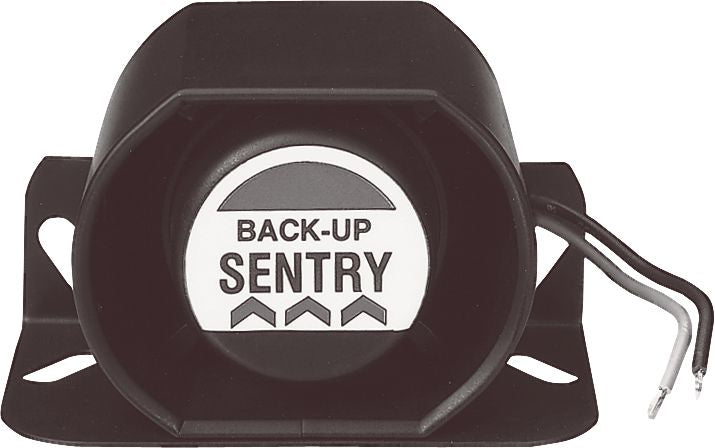

Backup Alarm, 107dB Output, 12-36 Volts DC, Universal Mount, 5 x 3 x 2.75"
(Pack of
1)
SKU:97550 Item#: 97550
• Solid state electronics
• Sealed in epoxy against dust, moisture and vibration
• Voltage spike polarity protected
• Positive or negative ground systems
• Current draw is less than 0.5A
• Nylon housing
• Conforms to SAE J994 criteria
• Meets OSHA, Bureau of Mines, GSA “K-Spec” and all state regulations
• Sound ratings are ±4 dB at 4 feet – 60 pulses per minute
• Extreme temperature operating range: –40°F to +185°F (–40°C to +85°C)
For use on fire trucks, ambulances, cement mixers, buses, refuse trucks, dump trucks and ground support vehicles.
Couldn't load pickup availability
Catalog page#: 23-50
Frequently Bought Together

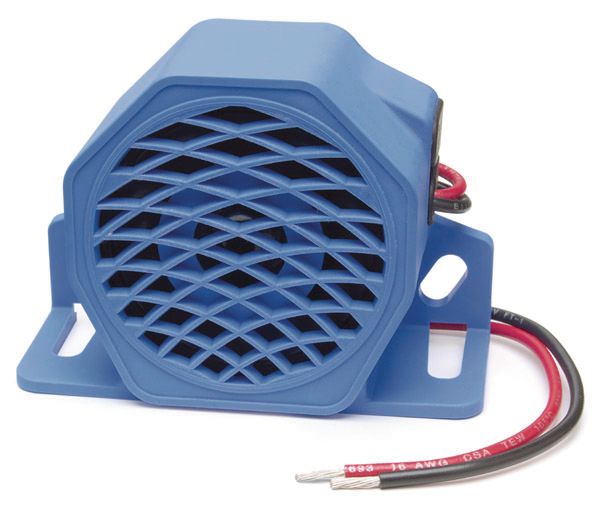

Backup Alarm 97dB
Couldn't load pickup availability

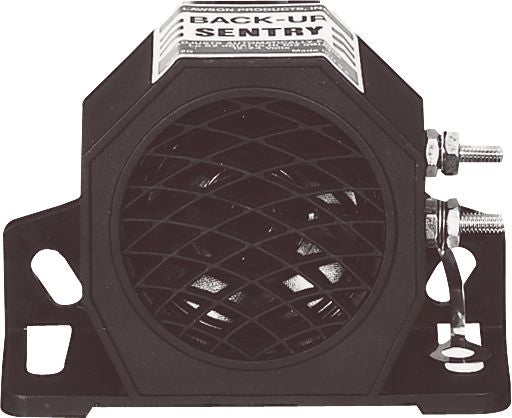

Backup Alarm 107dB
Couldn't load pickup availability
Backup Alarm Wedge Base
Couldn't load pickup availability
Stick-On Tape Reflector Red 1-11/16 x 4-1/4"
Couldn't load pickup availability

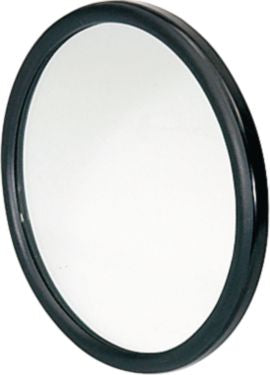

Round Stick-On Convex Mirror 2"
Couldn't load pickup availability
Wide-Angle Reflector Amber 2-7/8"
Couldn't load pickup availability
PZ Series Zinc Clip-On Wheel Weight 1-1/4oz
Couldn't load pickup availability
PZ Series Zinc Clip-On Wheel Weight 3/4oz
Couldn't load pickup availability
Splash Shield and Fascia Retainer Nylon 1"
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Product Description
• Solid state electronics• Sealed in epoxy against dust, moisture and vibration
• Voltage spike polarity protected
• Positive or negative ground systems
• Current draw is less than 0.5A
• Nylon housing
• Conforms to SAE J994 criteria
• Meets OSHA, Bureau of Mines, GSA “K-Spec” and all state regulations
• Sound ratings are ±4 dB at 4 feet – 60 pulses per minute
• Extreme temperature operating range: –40°F to +185°F (–40°C to +85°C)
For use on fire trucks, ambulances, cement mixers, buses, refuse trucks, dump trucks and ground support vehicles.
Technical Specifications
| Item#: | 97550 |
|---|---|
| Decibel Output | 107 |
| Voltage Requirements | 12 - 36V DC |
| Mounting | Universal Mount, Slotted Holes, 4" Centers |
| Width | 5 " |
| Height | 3 " |
| Depth | 2.75 " |
| Dimensions | 5"W x 3"H x 2.75"D |
| UNSPSC #: | 25172100 |
| TAA Compliant: | No |
| Weight: | 1.05 lb |
