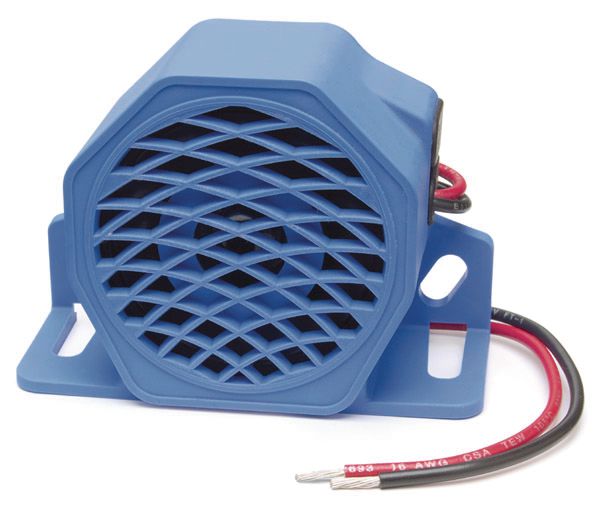

Backup Alarm, 97dB Output, 12-24 Volts DC, Universal Mount, 4 x 2.6 x 1.6"
(Pack of
1)
• Solid state electronics
• Sealed in epoxy against dust, moisture and vibration
• Voltage spike polarity protected
• Positive or negative ground systems
• Current draw is less than 0.5A
• Nylon housing
• Conforms to SAE J994 criteria
• Meets OSHA, Bureau of Mines, GSA “K-Spec” and all state regulations
• Sound ratings are ±4 dB at 4 feet – 60 pulses per minute
• Extreme temperature operating range: –40°F to +185°F (–40°C to +85°C)
For use on light-duty vehicles. Self-grounding. Can be used on UL-approved electrical systems without affecting the approval.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 23-50
Frequently Bought Together
Backup Alarm 102dB
Couldn't load pickup availability
Backup Alarm 107dB Med/Low Noise
Couldn't load pickup availability
Field-Selectable Backup Alarm
Couldn't load pickup availability
Convex Center-Mount Spot Mirror Assembly 6"
Couldn't load pickup availability
Stick-On Tape Reflector Red 1-11/16 x 4-1/4"
Couldn't load pickup availability
Round Stick-On Convex Mirror 2"
Couldn't load pickup availability
MCN Series Lead Clip-On Wheel Weight 1 oz
Couldn't load pickup availability
MCN Series Lead Clip-On Wheel Weight 1/4 oz
Couldn't load pickup availability
Dual Foot Tilt-Lock Air Chuck
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Product Description
• Solid state electronics• Sealed in epoxy against dust, moisture and vibration
• Voltage spike polarity protected
• Positive or negative ground systems
• Current draw is less than 0.5A
• Nylon housing
• Conforms to SAE J994 criteria
• Meets OSHA, Bureau of Mines, GSA “K-Spec” and all state regulations
• Sound ratings are ±4 dB at 4 feet – 60 pulses per minute
• Extreme temperature operating range: –40°F to +185°F (–40°C to +85°C)
For use on light-duty vehicles. Self-grounding. Can be used on UL-approved electrical systems without affecting the approval.
Technical Specifications
| Item#: | 97551 |
|---|---|
| Decibel Output | 97 |
| Voltage Requirements | 12 - 24V DC |
| Mounting | Universal Mount, 3" to 3.25" Centers |
| Width | 4 " |
| Height | 2.6 " |
| Depth | 1.6 " |
| Dimensions | 4"W x 2.6"H x 1.6"D |
| UNSPSC #: | 25172100 |
| TAA Compliant: | No |
| Weight: | 0.78 lb |
