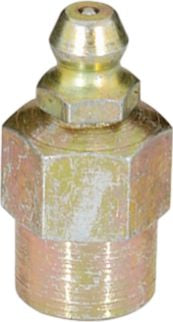

Ball Check Grease Fitting, Straight, Hardened Steel, 1/8" NPT, 15/16" Length
(Pack of
10)
SKU:KT11825 Item#: KT11825
• Ball in tip of fitting keeps out dirt and foreign matter
• Enlarged inner passage admits more lubricant, helps cut time on important lubrication jobs
• Balanced action spring retracts easily to allow maximum lubricant flow under pressure, yet holds ball firmly in sealing position at all other times
• Better coupler connection – Perfect spherical shape of base allows coupler jaws to form leakproof seal, even at a wide angle
• Easy installation – All threads accurately machine cut
• Fitting body made of special hardened steel for long life
• Universal application – industrial motive equipment
• Accepts all standard makes of hydraulic couplers
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
DOT Compression Connector Male Brass 1/4 x 1/8"
Couldn't load pickup availability
DOT Connector Male Brass 3/8 x 3/8-18
Couldn't load pickup availability
DOT Elbow Male 90° Brass 3/8 x 1/4-18
Couldn't load pickup availability
Hose Clamp 304 SS 1-13/16 to 2-3/4"
Couldn't load pickup availability
Hose Clamp 304 SS 3/4 to 1-3/4"
Couldn't load pickup availability
Constant Torque Hose Clamp SS 2-1/4 to 3-1/8"
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/8-27
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 9/16-18
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
Couldn't load pickup availability
Ball Check Grease Fitting Drive Straight
Couldn't load pickup availability
Ball Check Grease Fitting Metric 45°
Couldn't load pickup availability
Ball Check Grease Fitting 45°
Couldn't load pickup availability
Vision Pro Super
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
Product Description
• Ball in tip of fitting keeps out dirt and foreign matter• Enlarged inner passage admits more lubricant, helps cut time on important lubrication jobs
• Balanced action spring retracts easily to allow maximum lubricant flow under pressure, yet holds ball firmly in sealing position at all other times
• Better coupler connection – Perfect spherical shape of base allows coupler jaws to form leakproof seal, even at a wide angle
• Easy installation – All threads accurately machine cut
• Fitting body made of special hardened steel for long life
• Universal application – industrial motive equipment
• Accepts all standard makes of hydraulic couplers
Technical Specifications
| Item#: | KT11825 |
|---|---|
| Category | Grease Fittings |
| Fitting Type | Ball Check Type |
| Group | 1/8" NPT |
| Fitting Angle | Straight |
| Fitting Description | Straight - Female Thread |
| Length | 15/16 " |
| Size | 1/8X15/16 |
| Thread Type | 1/8" NPT |
| Material | Hardened Steel |
| UNSPSC #: | 40141736 |
| TAA Compliant: | Yes |
| Weight: | 0.25 lb |
