Blind Rivet Nut Insert, Riv-Float, Steel, Zinc Clear Finish, Knurled, Small Flange, 1/4-20, 0.027 to 0.15" Grip, 0.531" Hole
(Pack of
25)
SKU:1405573 Item#: 1405573
• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used
• Allows for tolerance stack-up in joint design and misalignment during service of the joint

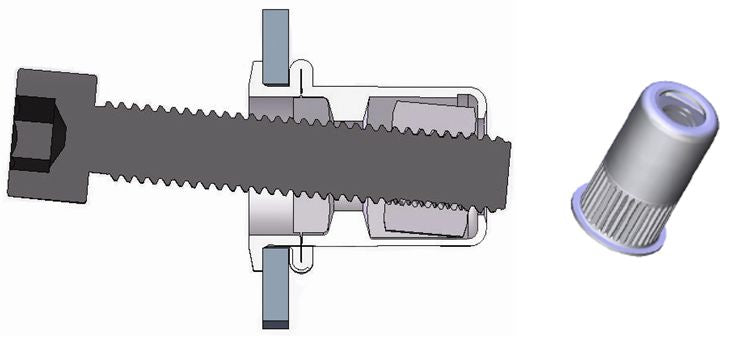

• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 6-20
Frequently Bought Together
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 5/16-18
Couldn't load pickup availability

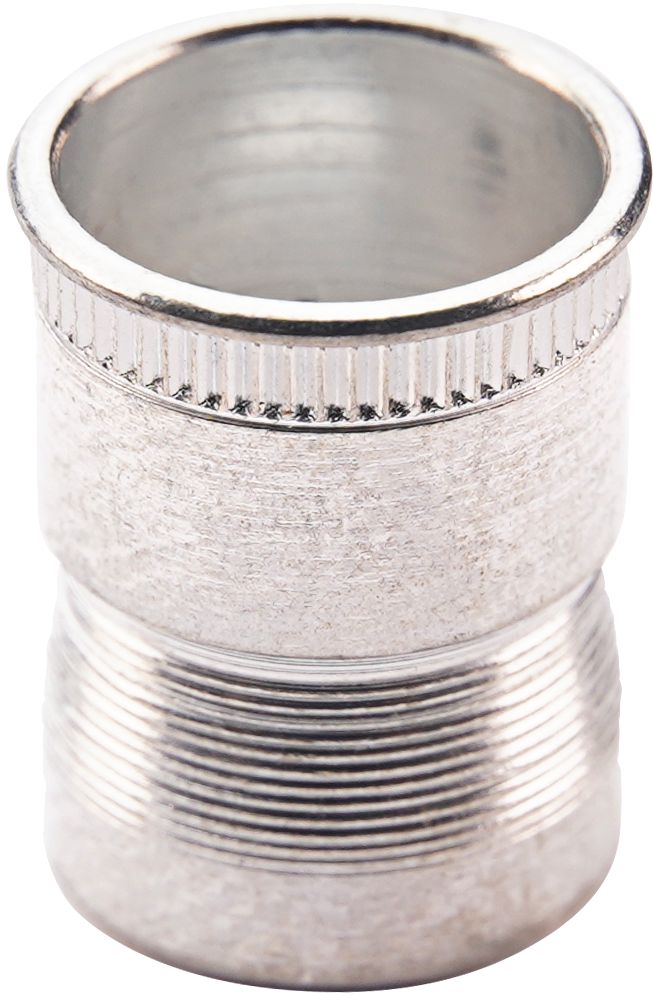

Blind Rivet Nut Insert Thin Wall M10-1.5
Couldn't load pickup availability
Blind Rivet Nut Insert Flat Head #10-32
Couldn't load pickup availability
Blind Rivet Nut Insert Riv-Float M5-0.8
Couldn't load pickup availability
Straight Barrel Battery Terminal 2/0 AWG Negative
Couldn't load pickup availability
Plastic Covered Primary Wire 12 AWG 100' Red
Couldn't load pickup availability

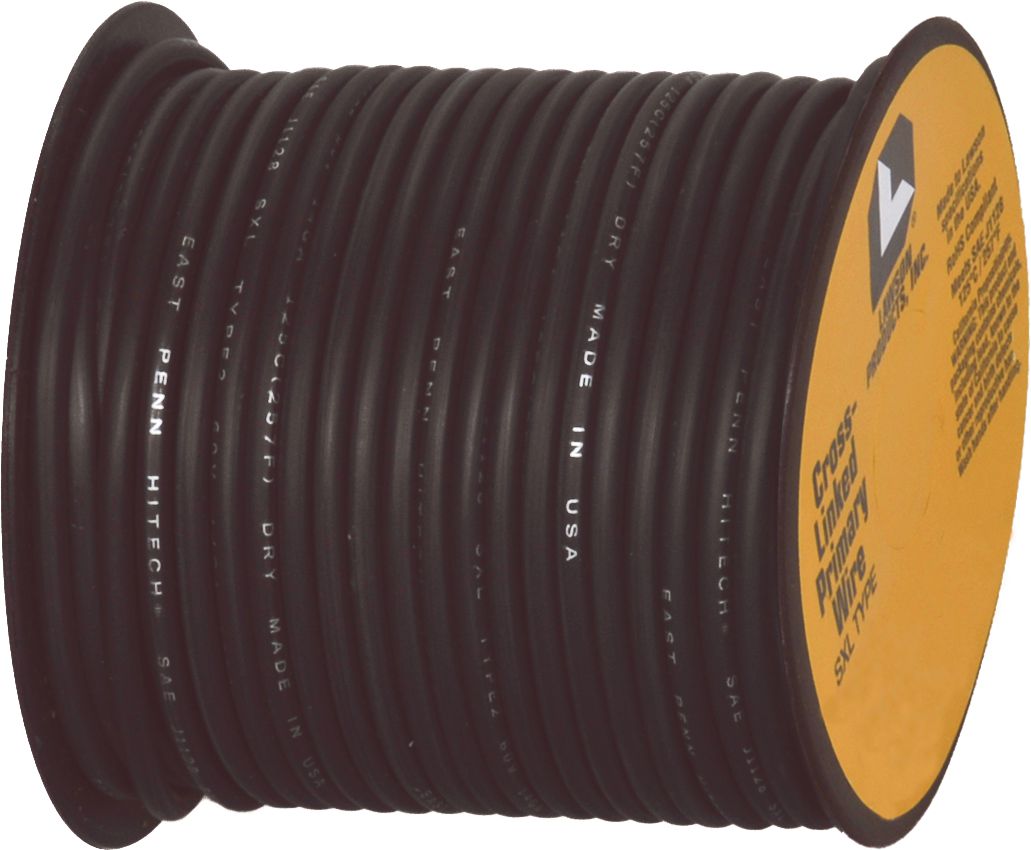

Cross Linked Primary Wire 18 AWG 100' Blue
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Diamond Grip II Threaded Insert #8-32
Couldn't load pickup availability
Standard Threaded Insert 5/16-18
Couldn't load pickup availability
Threaded Insert for Soft Material 1/4-20
Couldn't load pickup availability
Product Description
• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used• Allows for tolerance stack-up in joint design and misalignment during service of the joint
• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body
Technical Specifications
| Item#: | 1405573 |
|---|---|
| Diameter | 1/4 " |
| Grip Range | .027 - .150 " |
| Length | 0.819 " |
| Thread Pitch | 20 |
| Hole Size | 0.531 |
| Body Type | Knurled |
| Head Style | Small Flange |
| Style | Riv-Float |
| Material | Steel |
| Finish | Bright Zinc |
| Size | 1/4-20 |
| Type | Blind Rivet Nut |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
