Blind Rivet Nut Insert, Riv-Float, Steel, Zinc Clear Finish, Knurled, Small Flange, M5-0.8, 0.7 to 3.8mm Grip, 10mm Hole
(Pack of
25)
SKU:1405852 Item#: 1405852
• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used
• Allows for tolerance stack-up in joint design and misalignment during service of the joint

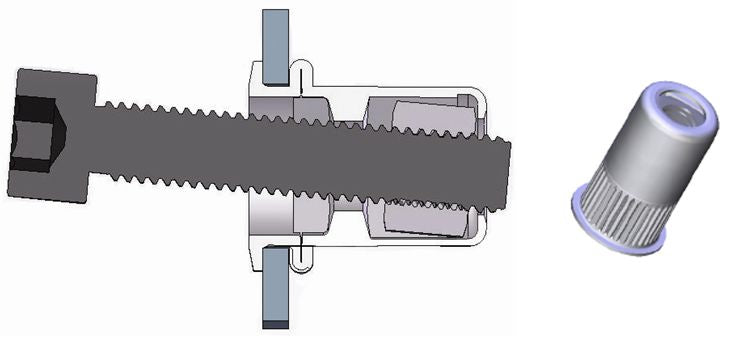

• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 6-20
Frequently Bought Together
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall M10-1.5
Couldn't load pickup availability
Blind Rivet Nut Insert Riv-Float Short #10-32
Couldn't load pickup availability
Blind Rivet Nut Insert Riv-Float #10-32
Couldn't load pickup availability
Hook & Hold Thread Gel Red
Couldn't load pickup availability
Cross Linked Primary Wire 18 AWG 100' Blue
Couldn't load pickup availability
Jacketed Parallel Primary Wire 14 AWG 3C 100'
Couldn't load pickup availability
180-degree Wide Beam Head Light with Side Light
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall 3/8-16
Couldn't load pickup availability
Diamond Grip II Threaded Insert #10-24
Couldn't load pickup availability
Threaded Insert Thin Wall #10-24
Couldn't load pickup availability
Product Description
• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used• Allows for tolerance stack-up in joint design and misalignment during service of the joint
• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body
Technical Specifications
| Item#: | 1405852 |
|---|---|
| Diameter | M5 |
| Grip Range | 0.7- 3.8 mm |
| Length | 18.28 mm |
| Thread Pitch | .8 mm |
| Hole Size | 10 |
| Body Type | Knurled |
| Head Style | Small Flange |
| Style | Riv-Float |
| Material | Steel |
| Finish | Bright Zinc |
| Size | M5-.8 |
| Type | Blind Rivet Nut |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
