Blind Rivet Nut Insert Riv-Float #10-32
(Pack of
25.0)
• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used
• Allows for tolerance stack-up in joint design and misalignment during service of the joint

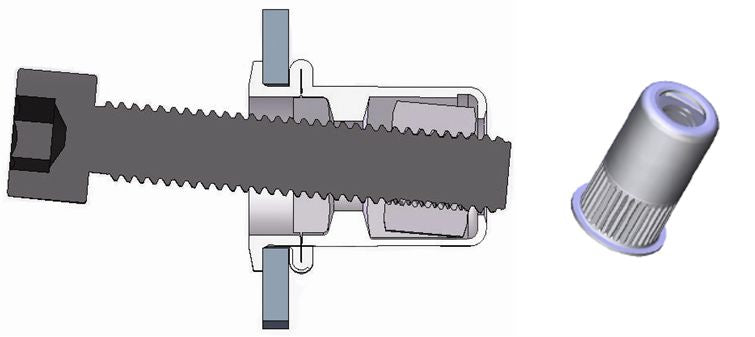

• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog Page#: 6-20
Frequently Bought Together
Hex Cap Screw Grade 8 Alloy Steel 1/4-20 x 3/4"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/4-10
Couldn't load pickup availability
Blind Rivet Nut Insert Riv-Float M6-1
Couldn't load pickup availability
Blind Rivet Nut Insert Flat Head M6-1
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall 1/4-20
Couldn't load pickup availability
Cross Linked Primary Wire 20 AWG 100' Green
Couldn't load pickup availability
Bonded Parallel Primary Wire 14 AWG 2-Conductor
Couldn't load pickup availability
Cross Linked Primary Wire 18 AWG 100' Brown
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
48" Magntic Aluminum Level
Couldn't load pickup availability
Replacement Mandrel for M4/M5 Tool 10-24
Couldn't load pickup availability
Replacement Head Set for M4/M5 Tool 5/16-18
Couldn't load pickup availability
Replacement Head Set for M4/M5 Tool M10
Couldn't load pickup availability
Product Description
• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used• Allows for tolerance stack-up in joint design and misalignment during service of the joint
• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body
Technical Specifications
| Item#: | 1406257 |
|---|---|
| Diameter | #10 |
| Grip Range | .027 - .150 " |
| Length | 0.720 " |
| Thread Pitch | 32 |
| Hole Size | 0.391 |
| Body Type | Knurled |
| Head Style | Large Flange |
| Style | Riv-Float |
| Material | Steel |
| Finish | Bright Zinc |
| Size | #10-32 |
| Type | Blind Rivet Nut |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
| Weight: | 0.0 lb |
