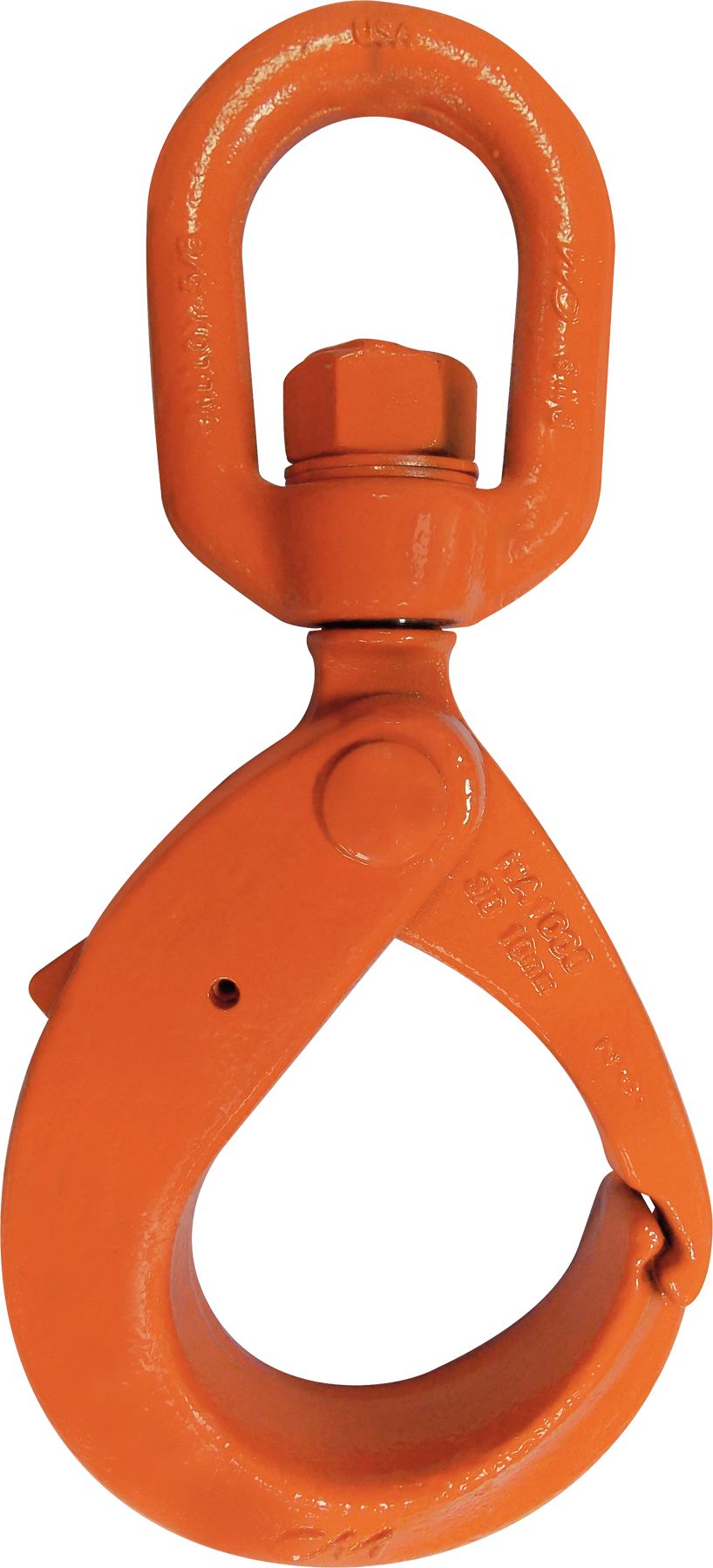

Bushing Swivel Style Latchlok Hook, Grade 100, 9/32", 4,300 lb WLL
(Pack of
1.0)
• The eye easily positions to attach to the load
• 100% proof tested
• Fatigue rated to Grade 100 specifications
• Durable orange powder coated finish
The load must be swiveled and turned into position before attaching, lifting or moving a load.
• Do not apply load unless latch and hook are completely closed and locked
• Make certain that the latch does not support any part of the load
• When lifting, make certain that the load is firmly seated in the base (bowl) of the hook
• Inspect hook and latch periodically. If the hook or latch is damaged or if the latch fails to interlock with the tip, the hook should be removed from service
• Do not exceed the working load limit
• Do not use if the hook is visibly distorted, damaged or worn
• Keep body and other objects clear of the latch when closing to avoid the pinch point
• Do not side load or tip load hook
CAUTION: Do not exceed working load limits.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 15-7
Frequently Bought Together
Hammerlok Coupling Link, Grade 100, 1/2", 15,000 lb WLL
Couldn't load pickup availability
Connecting Link, 3/8", 2,650 lb WLL, Self-Colored
Couldn't load pickup availability
Coupling Link, Stainless Steel, 1/2", 7,300 LB WLL
Couldn't load pickup availability
Eye Slip Hook, Stainless Steel, 1/4"
Couldn't load pickup availability
Clevlok Cradle Grab Hook, Grade 100, 1/2", 15,000 lb WLL
Couldn't load pickup availability
Clevis Slip Hook, Grade 63, 5/8", 14,200 lb WLL
Couldn't load pickup availability
Wire Rope, Steel, Bare, 7x19, 3/16", 4,200 lbs Breaking Strength
Couldn't load pickup availability
Wire Rope, Steel, Nylon Coated, 7x19, 1/4", 7,000 lbs Breaking Strengt
Couldn't load pickup availability
Wire Rope, Steel, Bare, 7x19, 1/4", 7,000 lbs Breaking Strength
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 5/8-11
Couldn't load pickup availability
Product Description
• The eye easily positions to attach to the load• 100% proof tested
• Fatigue rated to Grade 100 specifications
• Durable orange powder coated finish
The load must be swiveled and turned into position before attaching, lifting or moving a load.
• Do not apply load unless latch and hook are completely closed and locked
• Make certain that the latch does not support any part of the load
• When lifting, make certain that the load is firmly seated in the base (bowl) of the hook
• Inspect hook and latch periodically. If the hook or latch is damaged or if the latch fails to interlock with the tip, the hook should be removed from service
• Do not exceed the working load limit
• Do not use if the hook is visibly distorted, damaged or worn
• Keep body and other objects clear of the latch when closing to avoid the pinch point
• Do not side load or tip load hook
CAUTION: Do not exceed working load limits.
Technical Specifications
| Item#: | 1429756 |
|---|---|
| Type | Bushing Swivel Style Latchlok Hook |
| Grade | 100 |
| Chain Size | 9/32 " |
| Working Load Limit | 4,300 lb |
| Material | Alloy Steel |
| Color | Orange Powder Coated |
| Dimension A | 1.50 " |
| Dimension B | 1.33 " |
| Dimension D | 3.77 " |
| Dimension F | 1.64 " |
| Dimension H | 0.62 " |
| Dimension M | 7.17 " |
| Dimension P | 0.88 " |
| UNSPSC #: | 31162605 |
| TAA Compliant: | Yes |
| Weight: | 2.96 lb |
