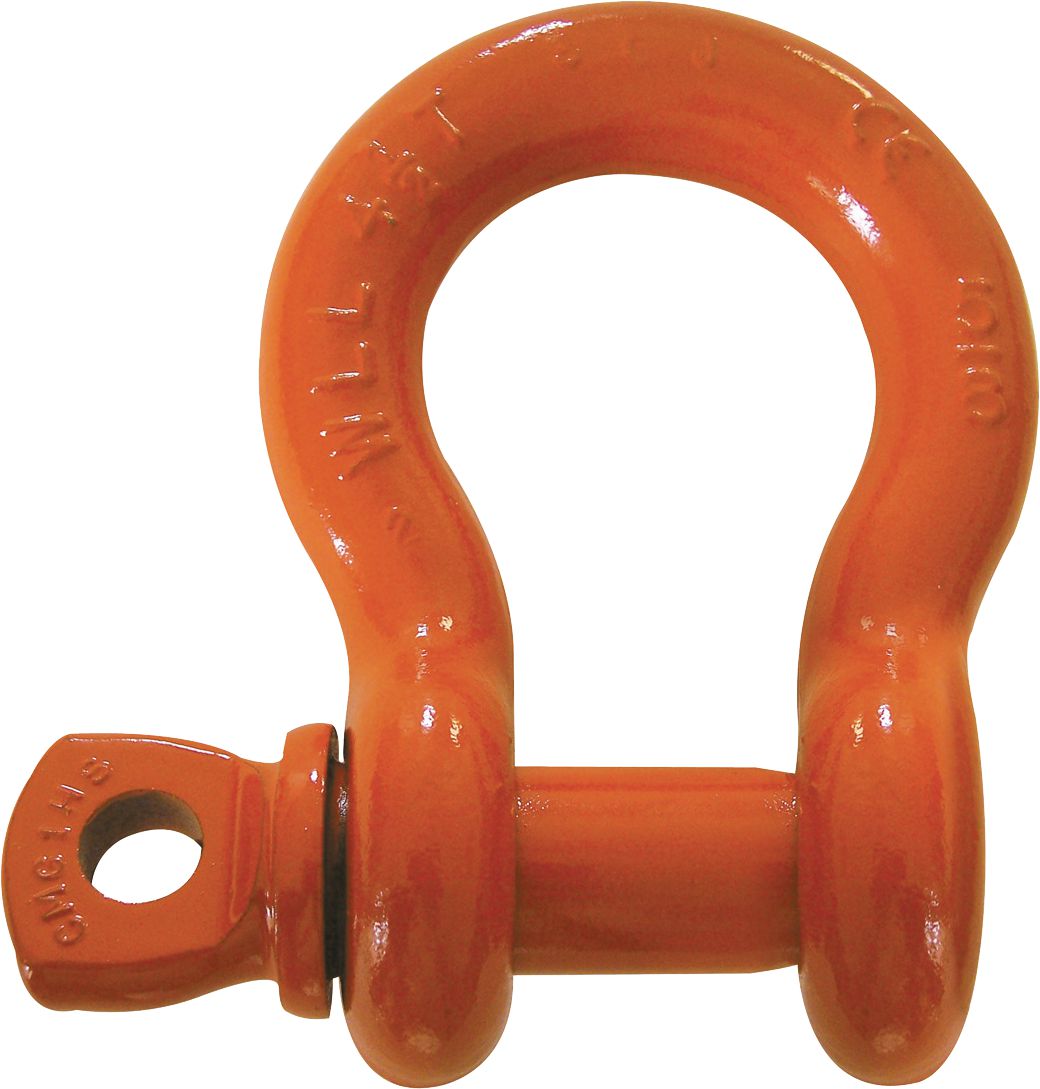

Anchor Shackle, Screw Pin, 3/4", 13,000 lb WLL, Carbon Steel, Orange Powder Coated
(Pack of
2)
SKU:14492 Item#: 14492
Screw pin shackles afford quick and easy removal of the screw pin which is secured by torque. While the threaded pin can resist axial forces, it is vulnerable to backing out and the shackle is not reliable in applications where the pin is subjected to a torque or twisting action.
• Carbon steel bodies
• Alloy steel pins
• Working Load Limit and traceability codes shown as permanent marking on body and pin
• All shackles meet or exceed Federal Specification RRC-271F, Type IVA, Grade A, Class 2
• Design factor 6:1
• Desirable in applications where the shackle is frequently removed
CAUTION: Do not exceed working load limits.
Couldn't load pickup availability
Catalog page#: 15-21
Frequently Bought Together
Screw Pin Anchor Shackle, 1/4", 1,500 lb WLL
Couldn't load pickup availability
Quick Link 3/16" Chain Size 616 Lb Safe Load
Couldn't load pickup availability
Quick Link 3/8" Chain Size 2220 Lb Safe Load
Couldn't load pickup availability
1" X 10' Quick Trac Retractable Ratcheting Tie Down Black 400 Lbs
Couldn't load pickup availability
Quick Link 5/16" Chain Size 1540 Lb Safe Load
Couldn't load pickup availability
Quick Link 1/4" Chain Size 880 Lb Safe Load
Couldn't load pickup availability
Screw Pin Anchor Shackle, 3/8", 3,000 lb WLL
Couldn't load pickup availability
Screw Pin Anchor Shackle, 1/4", 1,000 lb WLL
Couldn't load pickup availability
Screw Pin Anchor Shackle, 3/4", 9,500 lb WLL
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
Product Description
Screw pin shackles afford quick and easy removal of the screw pin which is secured by torque. While the threaded pin can resist axial forces, it is vulnerable to backing out and the shackle is not reliable in applications where the pin is subjected to a torque or twisting action.• Carbon steel bodies
• Alloy steel pins
• Working Load Limit and traceability codes shown as permanent marking on body and pin
• All shackles meet or exceed Federal Specification RRC-271F, Type IVA, Grade A, Class 2
• Design factor 6:1
• Desirable in applications where the shackle is frequently removed
CAUTION: Do not exceed working load limits.
Technical Specifications
| Item#: | 14492 |
|---|---|
| Type | Anchor Shackle |
| Style | Screw Pin |
| Body Material | Carbon Steel |
| Finish | Orange Powder Coated |
| Size | 3/4 " |
| Working Load Limit | 13,000 lb |
| Pin Diameter | 7/8 " |
| Pin Material | Alloy Steel |
| Width Between Eyes | 1-1/4 " |
| Bow Width | 1-3/4 " |
| Depth | 2-13/16 " |
| UNSPSC #: | 24101641 |
| TAA Compliant: | Yes |
| Weight: | 4.76 lb |
