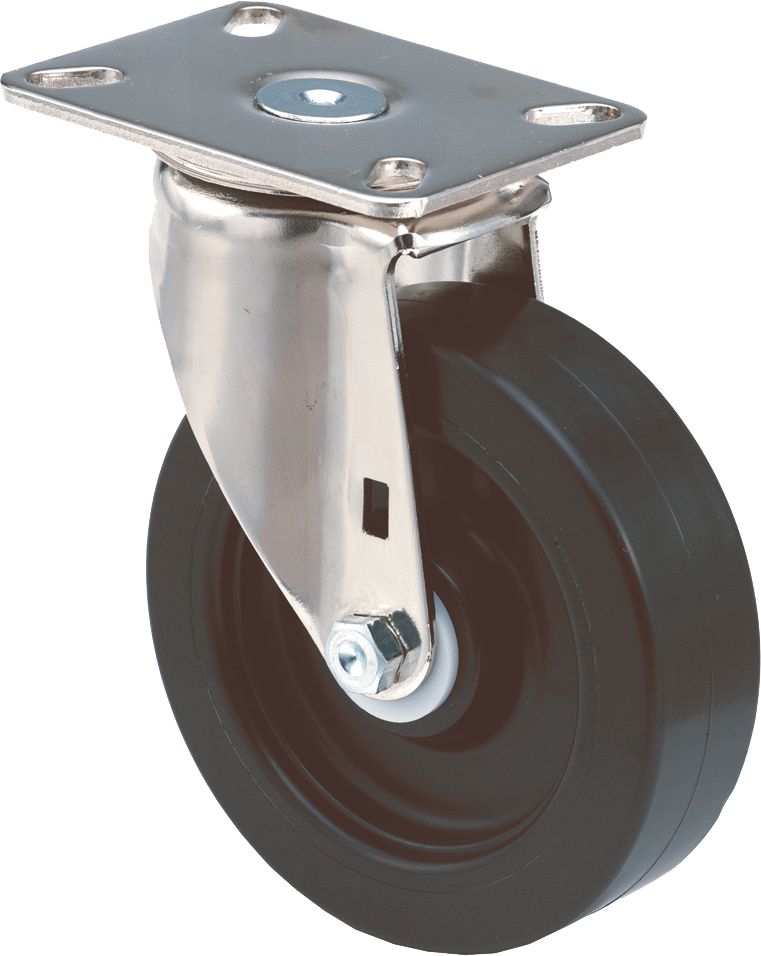

Caster, Swivel, Light-Medium Duty, Institutional, 4" Diameter, 1-3/8" Width, 5-3/8" Overall Height, 375 Lb Safe Load, Polypropylen
(Pack of
1)
SKU:10825 Item#: 10825
PolypropyleneThese wheels are made of a polypropylene compound that is an excellent, multi-application performer. These wheels exhibit superior resistance to abrasion, compression set, acids, oils, grease and impact. They provide easy rolling and good floor protection. Tread hardness: 75 to 85 Shore D.
• Nickel-plated for better corrosion resistance
• Self-lubricating Delrin wheel bearings
• NSF certified
• 3/8" dia. nut and bolt axle
• Extra strength, large diameter swivel caster has durable, heat-treated, factory lubricated double ball raceways for high performance
• Dust cover and both upper and lower grease seals standard on all swivel casters to protect swivel bearings from contaminants
Top Plate Dimensions
Overall Size: 3-1/8" x 4-1/8"
Hole Spacing: 1-3/4" x 3" to 2-3/8" x 3-3/8"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 5/16"
• Applications include food processing, food service, cafeteria, restaurant, kitchen, hospital, pharmaceutical, general purpose industrial and commercial applications
Frequently Bought Together
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability
Interchangeable Hex Bit Set 20Pc Torx
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Product Description
PolypropyleneThese wheels are made of a polypropylene compound that is an excellent, multi-application performer. These wheels exhibit superior resistance to abrasion, compression set, acids, oils, grease and impact. They provide easy rolling and good floor protection. Tread hardness: 75 to 85 Shore D.• Nickel-plated for better corrosion resistance
• Self-lubricating Delrin wheel bearings
• NSF certified
• 3/8" dia. nut and bolt axle
• Extra strength, large diameter swivel caster has durable, heat-treated, factory lubricated double ball raceways for high performance
• Dust cover and both upper and lower grease seals standard on all swivel casters to protect swivel bearings from contaminants
Top Plate Dimensions
Overall Size: 3-1/8" x 4-1/8"
Hole Spacing: 1-3/4" x 3" to 2-3/8" x 3-3/8"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 5/16"
• Applications include food processing, food service, cafeteria, restaurant, kitchen, hospital, pharmaceutical, general purpose industrial and commercial applications
Technical Specifications
| Item#: | 10825 |
|---|---|
| Type | Swivel |
| Style | Medium Duty |
| Wheel Type | Polypropylene |
| Wheel Diameter | 4 " |
| Wheel Width | 1-3/8 " |
| Overall Height | 5-3/8 " |
| Load Rating | 375 lb |
| Top Plate Overall Size | 3-1/8 x 4-1/8 " |
| Top Plate Bolt Diameter | 5/16 " |
| Top Plate Hole Spacing | 1-3/4 x 3 to 2-3/8 x 3-3/8 " |
| Top Plate Hole Diameter | 3/8 x 3/4 slots " |
| Finish | Nickel Plated |
| Specifications | NSF Certified |
| UNSPSC #: | 31162701 |
| TAA Compliant: | Yes |
| Weight: | 2.05 lb |
