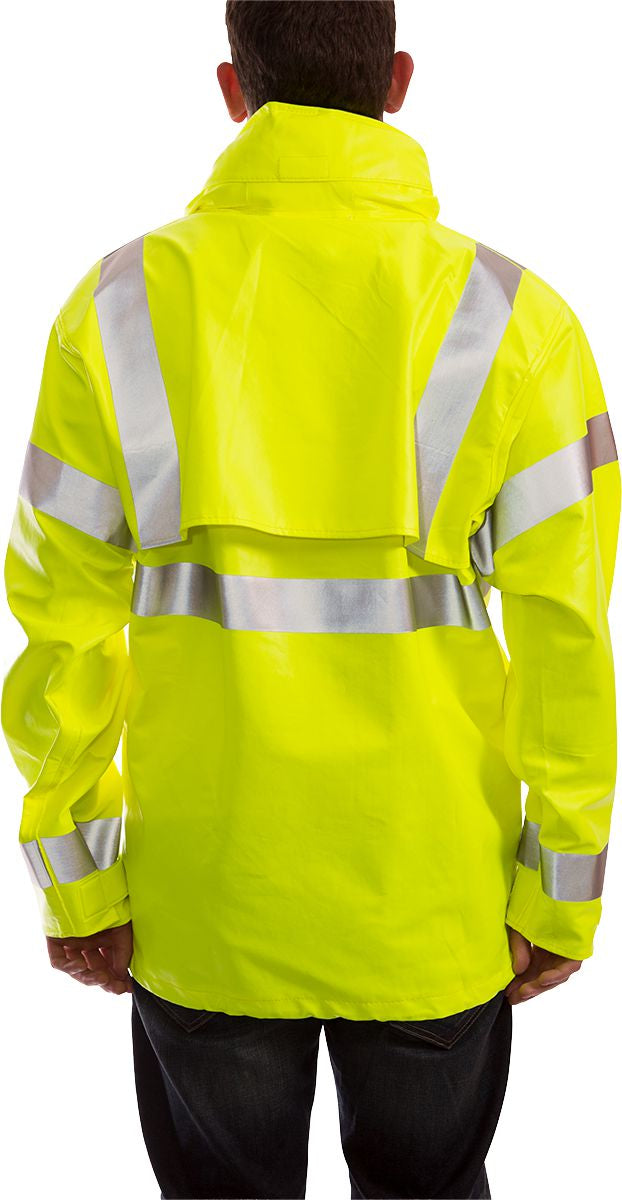

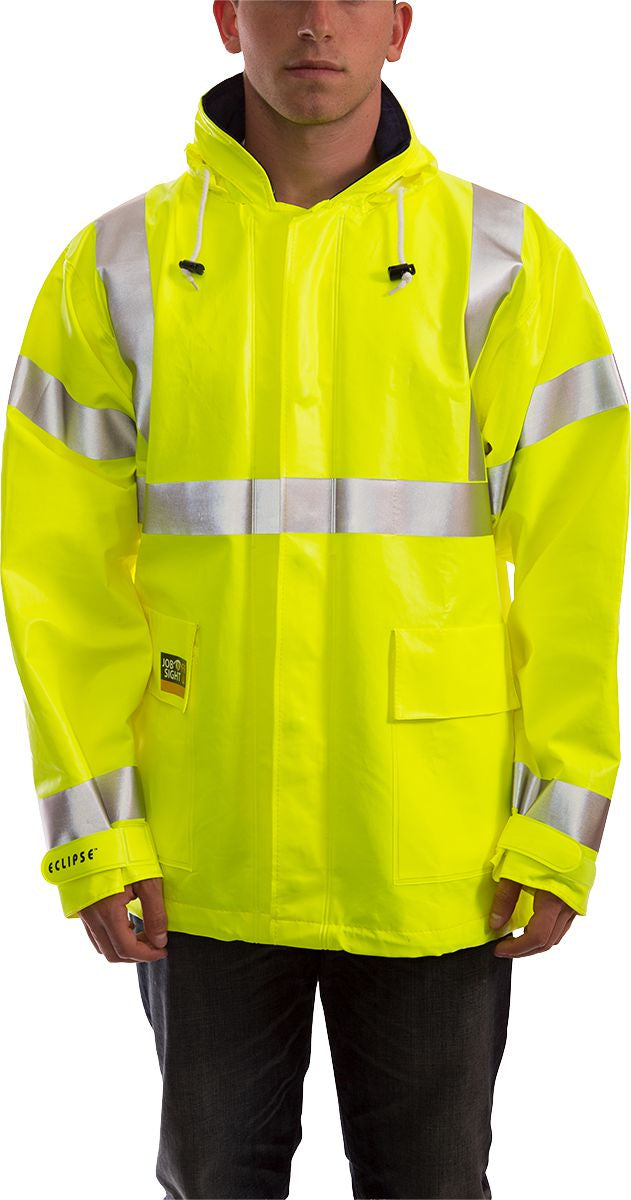

Home Safety PPE Flame Resistant (FR) Rainwear Class 3 Eclipse™ Jacket, Quad-Hazard Arc Flash and Flame Resistant, PVC on Non-Woven Nomex

Eclipse Rain Jacket, Water/Liquid Proof, 8.7cal/cm², Class 3, Conforms To ASTM F2733 For Flash Fire Performance, Fluorescent Yellow-Green, 4X-Large
(Pack of 1)

SKU:1686220 Item#: 1686220

Tingley

Revolutionary Quad-Hazard® technology delivers high visibility, liquidproof, arc flash and flash fire protection. Thermo-Grid® construction helps block out heat energy while the flame-resistant PVC coating on Nomex® provides 100% liquidproof protection in a soft, lightweight jacket.
• ANSI/ISEA 107 Type R Class 3 compliant jacket for high visibility
• Conforms to ASTM F1891 for Arc Thermal Performance and NFPA 70E – CAT 2
• Arc rating 8.7 cal/cm²
• Conforms to ASTM 2733 for Flash Fire Performance
• Average predicted total burn area < 9.5%
• Fluorescent yellow-green background material for excellent daytime visibility
• 2-inch silver reflective tape reflects light for 360° nighttime conspicuity
• Designed for complete freedom of movement while working overhead
• Therm-O-Rad sealed seams for 100% liquidproof protection

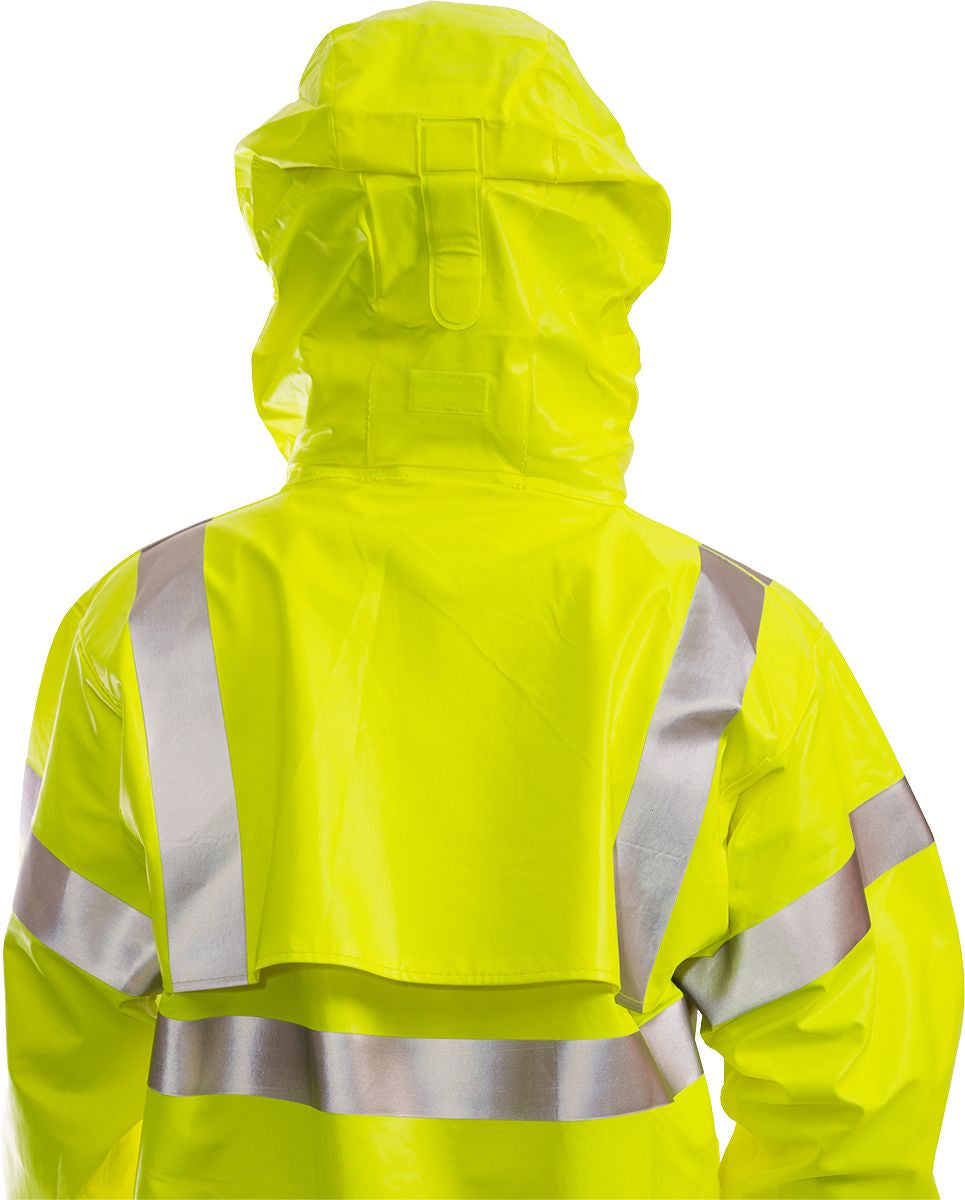

• Flame-resistant corduroy collar with a convenient roll-a-way hood
• Oversized 3 piece hood with adjustable hook & loop take-up strap for safe fit
• Non-conductive, non-corrosive hardware
• Full-vented cape back for improved air circulation
• D-ring access for fall protection harness
• Hook and loop take-up straps on wrists for an adjustable fit
• Adjustable elastic drawcord for added protection
• Zipper storm fly front hides snap closures to seal out heat, wind, rain and contaminants

Quantity

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Frequently Bought Together

AR/FR Coverall, Light Gray, X-Large, 9 Oz. Cotton/Nylon, ATPV 13.2 cal/cm², Hook and Loop Closure

Item#: 1704265

AR/FR Coverall, Navy, 4X-Large, 7 Oz., Cotton/Nylon, ATPV 9.2 cal/cm², Hook and Loop Closure

Item#: 1704259

AR/FR Men Jacket, Navy, 4X-Large, 13 oz. Cotton, Nylon, ATPV 75 cal/cm², HRC Level 4

Item#: 1704427

Class 3 Eclipse™ Jacket, Quad-Hazard Arc Flash and Flame Resistant, PVC on Non-Woven Nomex

Item#: 1678755

Arc Flash Rain Bib, Hi-Vis Yellow, 3XL

Item#: 1334308

Arc Flash Rain Bib, Hi-Vis Yellow, 2XL

Item#: 1334307

Auto-Darkening Panoramic View Welding Helmet

Item#: EG70828000

Wypall L30 Wiper 16.4 x 9.8"

Item#: 28136

CL1 Checklite Safety Glasses

Item#: SF11304

SAE J995C Locknut with Nylon Insert Grade 8 5/8-11

Item#: 53985

Self-Drilling Screw Hex Head #10-16 x 3/4"

Item#: 84931

Hex Nut Grade 8 Alloy Steel 1/2-13

Item#: A104

Product Description

Technical Specifications

Item#:	1686220
Manufacturer Model #:	J44122.4X
Type	Flame Resistant
Size	4X-Large
Approvals	ANSI/ISEA 107 Type R Class 3; ASTM F1891; NFPA 70E – CAT 2; ASTM 2733
Arc Rating	8.7 cal/cm²
Color	Fluorescent Yellow-Green
Material	Non-Woven Nomex
Fabric Weight	11.3 oz/yd²
Quantity Per Package	1 Ea.
UNSPSC #:	46181508
TAA Compliant:	No
