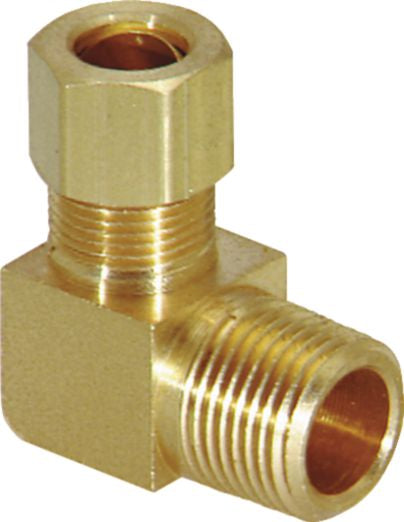

Compression Elbow, Brass, 90°, 1/8-27 x 1/4", Male NPT x Tube, 500PSI
(Pack of
5)
SKU:5081 Item#: 5081
• UL (No. AU 1042) approved for hazardous liquid, fuel equipment and gas• Meets SAE hydraulic tube fittings standards as well as ASA and ASME codes for pressure piping• Compatible tubing: Copper, brass, aluminum and plastic (soft plastic tubing requires support inside)• Pressure: Up to 2,000 PSI on 1/8" to 1/4" tubing; 1,000 PSI on 5/16" to 1/2" tubing; 750 PSI on 3/4" and 1" tubing• Temperature range: –65°F to +250°F (–54°C to +121°C)
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 9-12
Frequently Bought Together
Square Head Plug Brass 1/4-18 Male NPT
Couldn't load pickup availability
Bulkhead Pipe Adapter Brass 3/8-18 x 3/8-18
Couldn't load pickup availability
Pipe Hex Nipple Brass 1/2-14 x 3/8-18
Couldn't load pickup availability
Pipe Street Elbow Brass 45° 1/8-27 x 1/8-27
Couldn't load pickup availability
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4"
Couldn't load pickup availability
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 1/4 x 1/8"
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp 11/16 to 1-1/4"
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/8-27
Couldn't load pickup availability
Non-Perforated Clamp 316 SS #4 7/16 to 11/16"
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Product Description
• UL (No. AU 1042) approved for hazardous liquid, fuel equipment and gas• Meets SAE hydraulic tube fittings standards as well as ASA and ASME codes for pressure piping• Compatible tubing: Copper, brass, aluminum and plastic (soft plastic tubing requires support inside)• Pressure: Up to 2,000 PSI on 1/8" to 1/4" tubing; 1,000 PSI on 5/16" to 1/2" tubing; 750 PSI on 3/4" and 1" tubing• Temperature range: –65°F to +250°F (–54°C to +121°C)Technical Specifications
| Item#: | 5081 |
|---|---|
| Fitting Type | Compression |
| Angle | 90 ° |
| Configuration | Elbow |
| Material | Brass |
| Connection Type A x B | Male NPT x Tube |
| Fitting Dimension A | 1/8-27 |
| Fitting Dimension B | 1/4 " |
| Working Pressure | 500 PSI |
| Temperature Range | -65 to 250 F |
| UNSPSC #: | 40170000 |
| TAA Compliant: | No |
| Weight: | 0.24 lb |
