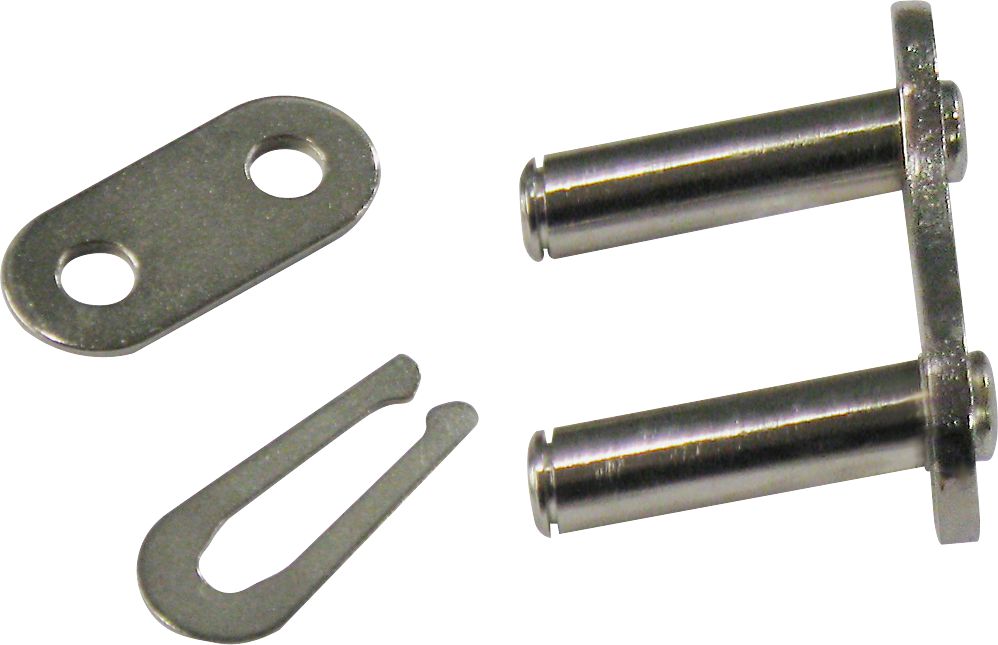

Connecting Link, Single Strand, Steel, Nickel Plated, Industry No. 40, 1/2" Pitch, 4,290lbs Average Tensile Strength
(Pack of 5)

SKU:1443368 Item#: 1443368

Daido®

Nickel-plated chain provides increased corrosion resistance. In applications where chain is exposed to the possibility of hydrogen brittlement caused by acid vapor or salty environment, nickel plating delays the corrosive effect on the chain.

Check Availability

Quantity

Catalog page#: 15-59

Frequently Bought Together

Connecting Link, Double Strand, Steel, Industry No. 80-2

Connecting Link, Double Pitch-Conveyor, Steel, Nickel Plated, Industry

Connecting Link, Double Strand, Steel, Nickel Plated, Industry No. 50-

Screw Pin Anchor Shackle, 1/4", 1,000 lb WLL

Tarp Strap Epdm Rubber with Hooks 19" Long

Tarp Strap Epdm Rubber with Hooks 35" Long

Connecting Link, Single Strand, Steel, Industry No. 35

Offset Link (Half Link), Single Strand, Steel, Industry No. 40

Connecting Link, Single Strand, Steel, Industry No. 60

SAE Flat Washer Thru-Hardened Steel 3/8"

Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can

SAE J995C Locknut with Nylon Insert Grade 8 1/4-20

Product Description

Nickel-plated chain provides increased corrosion resistance. In applications where chain is exposed to the possibility of hydrogen brittlement caused by acid vapor or salty environment, nickel plating delays the corrosive effect on the chain.

Technical Specifications

Item#:	1443368
Configuration	Connecting Link
Type	Single Strand
Style	Standard
Material	Steel
Finish	Nickel Plate
Industry Number	40
Pitch	1/2 "
Roller Width	0.313 "
Roller Diameter	0.312 "
Plate Thickness	0.059 "
Plate Height	0.472 "
Minimum Tensile Strength	3,520 lb
Average Tensile Strength	4,290 lb
Maximum Load	836 lb
UNSPSC #:	31163027
TAA Compliant:	Yes
Weight:	0.1 lb
