Home Material Handling Roller Chain and Tools Links Connecting Link, Double Strand, Steel, Industry No. 60-2
Links
Connecting Link, Double Strand, Steel, Industry No. 60-2, 3/4
Connecting Link, Double Strand, Steel, Industry No. 60-2, 3/4

Connecting Link, Double Strand, Steel, Industry No. 60-2, 3/4" Pitch, 19,800lbs Average Tensile Strength
(Pack of 5)

Item#: 85381

Daido®

Connecting Link, Double Strand, Steel, Industry No. 60-2, 3/4" Pitch, 19,800lbs Average Tensile Strength

Read More
Check Availability

Catalog page#: 15-62

Frequently Bought Together

Connecting Link, Double Strand, Steel, Industry No. 25-2, 1/4

Connecting Link, Double Strand, Steel, Industry No. 25-2

Item#: 1443570
Offset Link (Half Link), Single Strand, Stainless Steel, Industry No. 35, 3/8

Offset Link (Half Link), Single Strand, Stainless Steel, Industry No.

Item#: 1443567
Connecting Link, Single Strand, Stainless Steel, Industry No. 80, 1

Connecting Link, Single Strand, Stainless Steel, Industry No. 80

Item#: 1443527
Wire Rope Sleeve, 7/32

Wire Rope Sleeve, 3/16", Aluminum

Item#: 1440293
Screw Pin Anchor Shackle, 5/8

Screw Pin Anchor Shackle, 5/16", 1,500 lb WLL

Item#: 1424879
Tuff-Edge® Web Sling, Polyester, Silver, 8' Length, Sling, Web, Tuff-Edge, Eye & Eye, Type 3, Flat Eye, 2

Tuff-Edge® Web Sling, Polyester, Silver, 4' Length

Item#: 1412752
Offset Link (Half Link), Single Strand, Steel, Nickel Plated, Industry No. 35, 3/8

Offset Link (Half Link), Single Strand, Steel, Nickel Plated, Industry

Item#: 1443532
Connecting Link, Double Pitch-Conveyor, Stainless Steel, Industry No. C2052, 1-1/4

Connecting Link, Double Pitch-Conveyor, Stainless Steel, Industry No.

Item#: 1443466
Roller Chain, Double Pitch-Conveyor, Steel, Industry No. C2040, 1

Roller Chain, Double Pitch-Conveyor, Steel, Industry No. C2040

Item#: 1443614
Stepdown Butt Connector 16 to 14/12 to 10 AWG, Stepdown Butt Connector, Crystal Clear Insulation, 16 to 14/12 to 10 AWG, Blue

Stepdown Butt Connector 16 to 14/12 to 10 AWG

Item#: 1495189
Superbutt Connector 22 to 18 AWG Red, Superbutt Connector, Extended Barrel, Red, 22 to 18 AWG, 1.05

Superbutt Connector 22 to 18 AWG Red

Item#: 94727
Interchangeable Hex Bit Set 20Pc Torx, 20 Pc, Interchangeable Torx Quick Release Hex Bit Set

Interchangeable Hex Bit Set 20Pc Torx

Item#: DY89310522

Product Description

Connecting Link, Double Strand, Steel, Industry No. 60-2, 3/4" Pitch, 19,800lbs Average Tensile Strength

Technical Specifications

Item#: 85381
Manufacturer Model #: CL60-2
Configuration Connecting Link
Type Double Strand
Style Standard
Material Steel
Finish Plain
Industry Number 60-2
Pitch 3/4 "
Roller Width 0.500 "
Roller Diameter 0.469 "
Plate Thickness 0.094 "
Plate Height 0.713 "
Minimum Tensile Strength 15,840 lb
Average Tensile Strength 19,800 lb
Maximum Load 3,542 lb
UNSPSC #: 31163027
TAA Compliant: Yes
Weight: 0.6 lb

Suggested Products

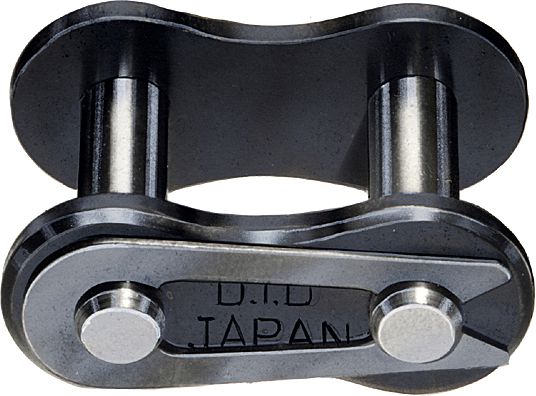

Connecting Link, Single Strand, Steel, Industry No. 50, 5/8
