Cool Steel All Position Vertical Down Elongation 30% Polarity Dcep/Ac Tensile Up To 150000 Will Work Harden To 37Rc Ignitor Tip
(Pack of
5)
SKU:EG00540000 Item#: EG00540000

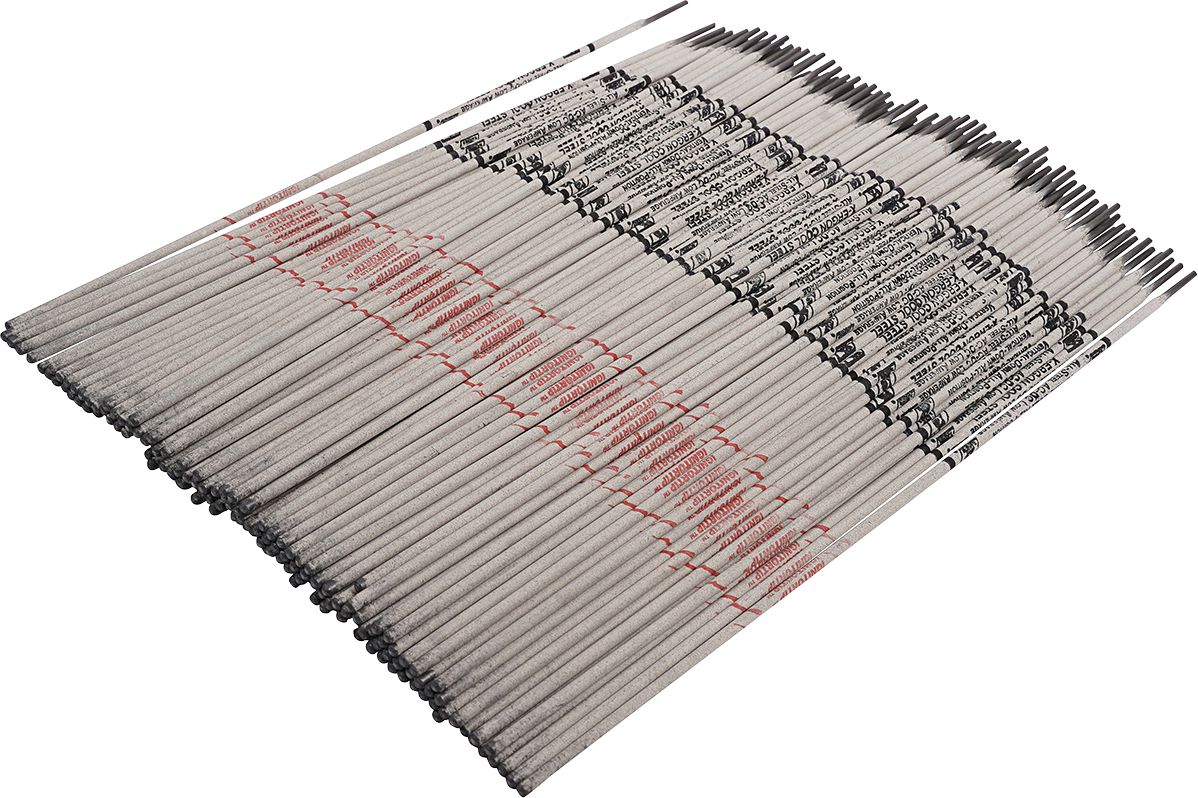

A multi-steel electrode with a fast-freeze coating to give the welder unparalleled control in the vertical down position.
• Versatile – Welds all weldable grades of steels: Cast steel, mild steel, stainless steel, manganese steel, high-strength steel, tool steel, spring steel or any combination of these
• Minimum heat requirements – runs at low amps to reduce distortion
• Designed for all-position welding — even vertical down
• IGNITOR TIP™ for instant strike
• Superior strength and crack resistance
• Tensile strength:
– As deposited: 104,000 PSI/717 MPa
– Work hardened: 150,000 PSI/1034 MPa
• Hardness: – As deposited: 97 Rb
• Work Hardened: 37 Rc
• Elongation: 30%
• Heat Resistance: Good
• Corrosion Resistance: Very good
• Crack Resistance: Excellent
• Chemical Resistance: Very good
• Impact Strength: 100 ft.-lbs. @ -75°F/-59°C
• Machinablilty: Excellent
• Current: DC or AC
Frequently Bought Together
X-Tractalloy Welding Electrode Non-Conductive Flux 5/64 3/32 1/8 2LB E
Couldn't load pickup availability
333 Dissimilar Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
601Xl Fc Multi Steel Flux Core Mig Wire .035X10LB
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Oxy-Therm Cutting Rod 3/8 x 24"
Couldn't load pickup availability
Oxy-Therm Cutting Rod 3/8 x 36"
Couldn't load pickup availability
281 High Strength Silver Bearing Solder .031DIA 19G TUBE
Couldn't load pickup availability
338 Mild/Carbon Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
345 Tool Steel TIG Wire 0.035"
Couldn't load pickup availability
510 Aluminum TIG Wire 1/16"
Couldn't load pickup availability
Product Description
A multi-steel electrode with a fast-freeze coating to give the welder unparalleled control in the vertical down position.• Versatile – Welds all weldable grades of steels: Cast steel, mild steel, stainless steel, manganese steel, high-strength steel, tool steel, spring steel or any combination of these
• Minimum heat requirements – runs at low amps to reduce distortion
• Designed for all-position welding — even vertical down
• IGNITOR TIP™ for instant strike
• Superior strength and crack resistance
• Tensile strength:
– As deposited: 104,000 PSI/717 MPa
– Work hardened: 150,000 PSI/1034 MPa
• Hardness: – As deposited: 97 Rb
• Work Hardened: 37 Rc
• Elongation: 30%
• Heat Resistance: Good
• Corrosion Resistance: Very good
• Crack Resistance: Excellent
• Chemical Resistance: Very good
• Impact Strength: 100 ft.-lbs. @ -75°F/-59°C
• Machinablilty: Excellent
• Current: DC or AC
Technical Specifications
| Item#: | EG00540000 |
|---|---|
| Welding Process | Stick |
| Type | Electrode |
| Diameter | 1/8 " |
| Tensile Strength | 150,000 PSI |
| Yield Strength | 104,000 PSI |
| Elongation | 30 % |
| Hardness | 37 HRC |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 5.32 lb |
