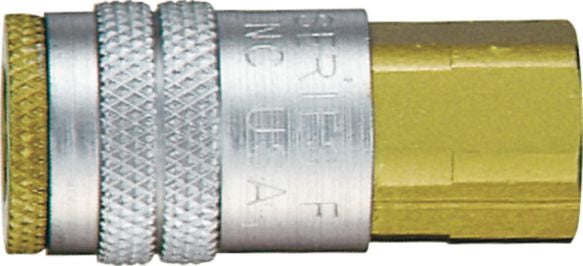

Coupler, Industrial, 1/4'' Body, 1/4-18 Female NPTF, 303 SS
(Pack of
1.0)
Heavy-duty sleeve type couplers feature a built-in sleeve guard to minimize accidental disconnect. Couplers feature stainless steel coupling balls and springs for corrosion resistance. Machined components are manufactured using 303 stainless steel bar stock. Nitrile (Buna-N) seals are standard.
• Industrial interchange design
• Interchanges with the MIL-C-4109F, A-A 59439, and ISO6150B standards.
• Maximum working pressure: 500 PSI
• Temperature Range: -40°F to 250°F (-40°C to 121°C)
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Quick Disconnect Coupler Steel 3/8" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 3/8" x 3/8-18
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
Couldn't load pickup availability
Nipple, Schrader, 1/4'' Body, 1/4-18 Male NPT, Steel
Couldn't load pickup availability
Quick Disconnect Coupler Brass 3/8" x 3/8-18
Couldn't load pickup availability
Hose Barb Brass 3/8" x 3/8-18
Couldn't load pickup availability
Hex Bushing Steel 1/2-14 x 3/8-18
Couldn't load pickup availability
Forged Body Ball Valve Brass 1/2-14 x 1/2-14
Couldn't load pickup availability
Pipe Coupling Brass 3/8-18 x 3/8-18
Couldn't load pickup availability
Hose Barb Brass 3/8" x 3/8-18
Couldn't load pickup availability
Hose Barb Elbow 90° Brass 1/4" x 1/4-18
Couldn't load pickup availability
Hose Barb Brass 5/16" x 3/8-18
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 5/8-11
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
Product Description
Heavy-duty sleeve type couplers feature a built-in sleeve guard to minimize accidental disconnect. Couplers feature stainless steel coupling balls and springs for corrosion resistance. Machined components are manufactured using 303 stainless steel bar stock. Nitrile (Buna-N) seals are standard.• Industrial interchange design
• Interchanges with the MIL-C-4109F, A-A 59439, and ISO6150B standards.
• Maximum working pressure: 500 PSI
• Temperature Range: -40°F to 250°F (-40°C to 121°C)
Technical Specifications
| Item#: | 1593548 |
|---|---|
| Type | Coupler |
| Style | Industrial |
| Body Size | 1/4 " |
| Thread Style | NPTF |
| Thread Size | 1/4 " |
| Working Pressure | 500 PSI |
| Material | 303 Stainless Steel |
| Length | 2.07 " |
| Seal Material | Nitrile |
| Hex Size | 3/4 " |
| Locking Mechanism | 6 Ball |
| Flow | 27 ft³/min |
| UNSPSC #: | 27131613 |
| TAA Compliant: | Yes |
| Weight: | 0.225 lb |
