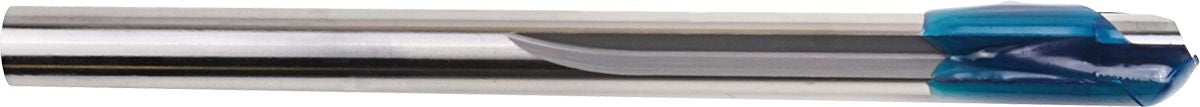

Cryo Armor Cut 8.5MM Dia. Metric Drill Bit, Carbide 118o Point
(Pack of
1.0)
• Drills Hardened Steels – Makes holes in metal normally considered non-machineable from 44 to 65Rc
• Precision – Produces an accurate hole size and can be used to enlarge undersized holes
• Tough Design – Endures the feed pressures needed to drill hard metals
Specifications
• Material: Solid Carbide up to 5/32"; Carbide Tip with M-50 Shank 11/64" and up
• Hardness (tip): 79Rc
• Temperature Resistance: 1400°F
• Surface Treatment: Bead blasted satin finish
• Cryophase™: Thermal cycling cryogenic treatment
• Tip Design: 118° cam relief thinned
Application
• Heavy-Duty – Drill wear plate, hardened truck frames and even armor steel
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
Drill Bit Carbide #25
Couldn't load pickup availability
Solid Drill Bit Set Carbide 1/8 to 3/8"
Couldn't load pickup availability
Drill Bit Carbide 23/64"
Couldn't load pickup availability
Twist-On Surface Conditioning Disc 3" Maroon
Couldn't load pickup availability
Premium Grinding Wheel 4-1/2"
Couldn't load pickup availability
Reinforced Mini Cut-Off Wheel 3"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 7/32"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 1/8"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 25/64"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Phenolic Backing Plate Flap Disc 4-1/2"
Couldn't load pickup availability
3/8" Fractional Drill Bit, Jobber Length, W/Flats
Couldn't load pickup availability
Cut-Off Wheel for Right Angle Grinder 4-1/2"
Couldn't load pickup availability
Product Description
• Drills Hardened Steels – Makes holes in metal normally considered non-machineable from 44 to 65Rc• Precision – Produces an accurate hole size and can be used to enlarge undersized holes
• Tough Design – Endures the feed pressures needed to drill hard metals
Specifications
• Material: Solid Carbide up to 5/32"; Carbide Tip with M-50 Shank 11/64" and up
• Hardness (tip): 79Rc
• Temperature Resistance: 1400°F
• Surface Treatment: Bead blasted satin finish
• Cryophase™: Thermal cycling cryogenic treatment
• Tip Design: 118° cam relief thinned
Application
• Heavy-Duty – Drill wear plate, hardened truck frames and even armor steel
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | DY80237085 |
|---|---|
| Drill Type | Metric |
| Type | Drill Bit |
| Material | Carbide |
| Finish | Bright |
| Diameter | 8.50 mm |
| Decimal Equivalent | 0.3446 " |
| Point | 118 ° |
| Flutes | 2 |
| UNSPSC #: | 23241605 |
| TAA Compliant: | No |
| Weight: | 0.105 lb |
