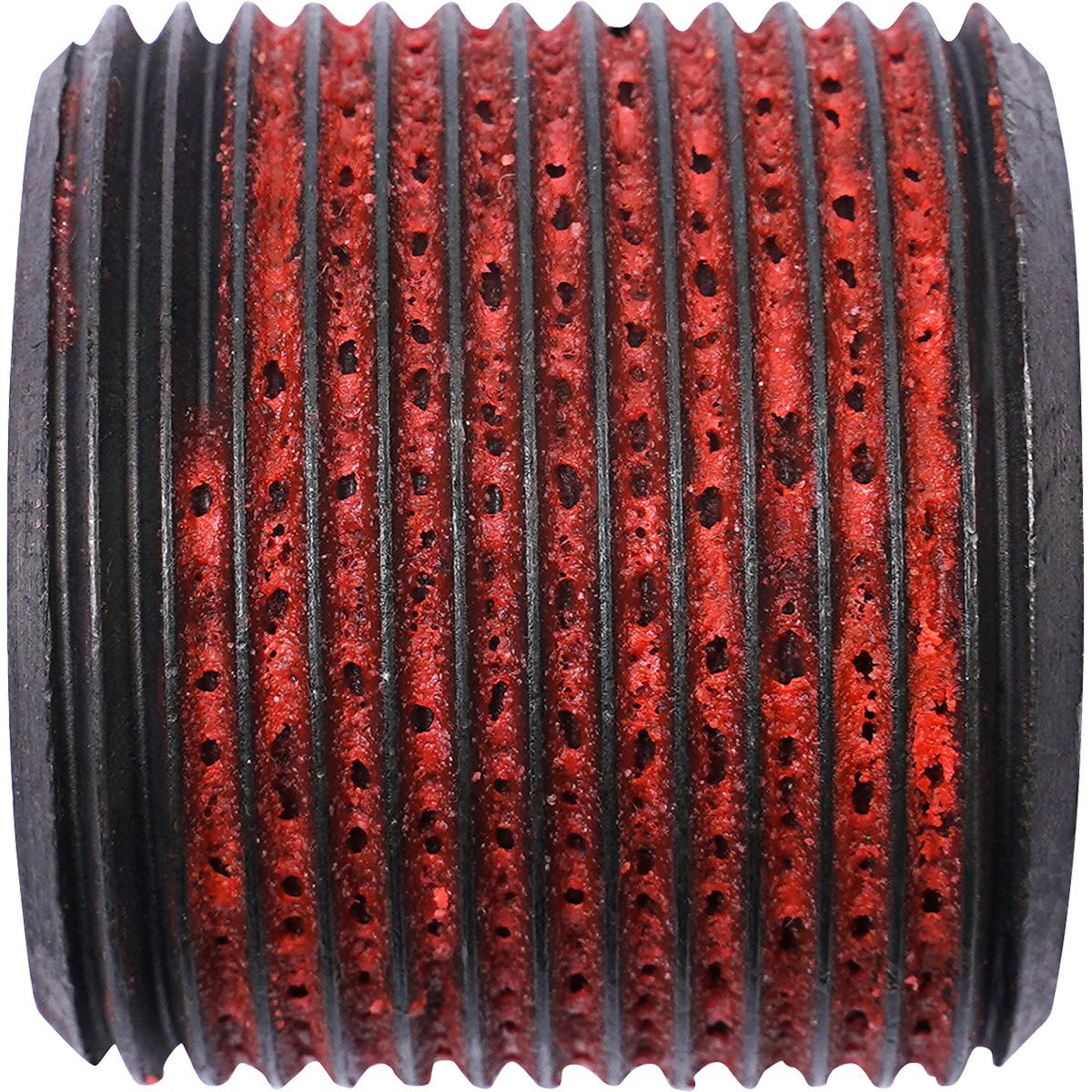

Professional Thread Repair Insert, Carbon Steel, Thin Wall, M12 x 1.5 Internal Thread, 16.2mm Length
(Pack of
20)
• Solid bushing insert guarantees easy installation and allows full load use of tapped hole, ensuring protection against stress and vibration
• Thin-walled due to synchronized internal external threads – thin cross sectional area for installation in areas of limited space and clearance material
• Positive placement – a flange on the top of the insert ensures that the insert will have positive placement and cannot wind down into the newly repaired hole
• Self-locking – the bottom internal threads of the insert are cold-rolled to expand the mating external threads into the base material locking the insert in place; the locking mechanism is at the bottom of the insert
Carbon steel inserts are phosphate-coated.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Jobber Length Drill Bit HSS 17/64"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 1/4"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 9/64"
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Wire Thread Insert Repair Kit M5 to M12
Couldn't load pickup availability
Straight Fluted Screw Extractor 1/4 to 5/16"
Couldn't load pickup availability
Straight Fluted Screw Extractor 5/32 to 3/16"
Couldn't load pickup availability
Lok-Rite 1"-8 Steel Threaded Insert
Couldn't load pickup availability
Lok-Rite 7/8"-9 Steel Threaded Insert
Couldn't load pickup availability
Lok-Rite 1"-14 Steel Threaded Insert
Couldn't load pickup availability
11Pc Lock and Load Hammer Set
Couldn't load pickup availability
8Pc Metric Flare Nut Wrench Set
Couldn't load pickup availability
Jobber Length Drill Bit HSS 13/64"
Couldn't load pickup availability
Product Description
• Solid bushing insert guarantees easy installation and allows full load use of tapped hole, ensuring protection against stress and vibration• Thin-walled due to synchronized internal external threads – thin cross sectional area for installation in areas of limited space and clearance material
• Positive placement – a flange on the top of the insert ensures that the insert will have positive placement and cannot wind down into the newly repaired hole
• Self-locking – the bottom internal threads of the insert are cold-rolled to expand the mating external threads into the base material locking the insert in place; the locking mechanism is at the bottom of the insert
Carbon steel inserts are phosphate-coated.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 1434254 |
|---|---|
| Type | Metric |
| Material | Carbon Steel |
| Style | Thinwall |
| Thread Size Internal | M12 x 1.5 |
| Length | 16.2 mm |
| Recommended Drill Size | 31/64 " |
| Recommended Tap Size | 0.552 " |
| UNSPSC #: | 27112810 |
| TAA Compliant: | Yes |
| Weight: | 0.2 lb |
