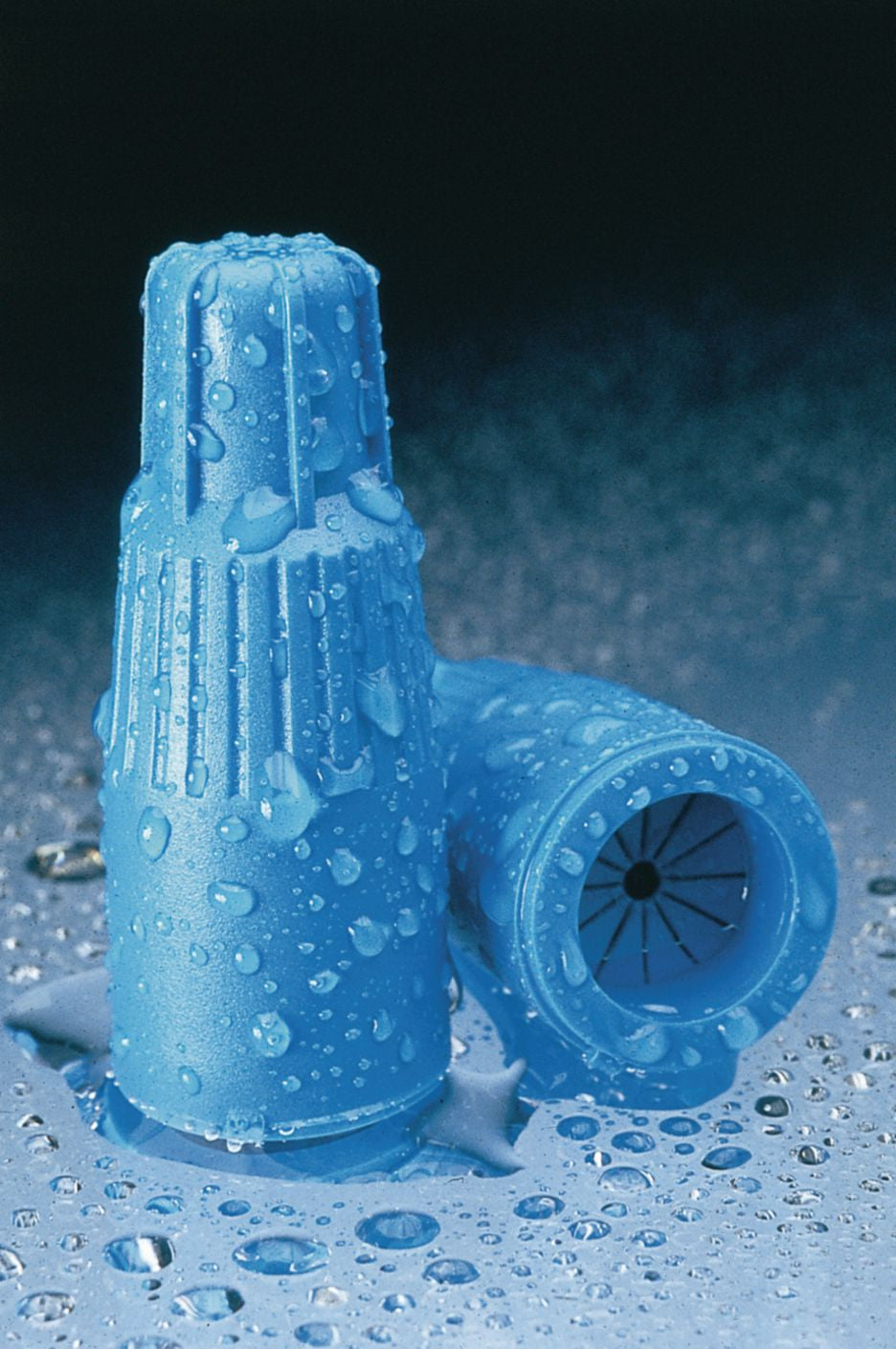

Direct Bury Wire Connector, 22 to 10 AWG, 600/1000 Volts
(Pack of
6)
SKU:98952 Item#: 98952
• The fast, easy way to make direct bury and other moisture-sensitive splices – just insert the stripped wires through the silicone sealant and twist them into the connector
• No pre-twisting of wires
• A square-wire spring locks wires in place – spring scores thread into wire for safe, tight grip
• Silicone sealant never leaks or hardens – locks out moisture and air
• Ribbed housing makes turning easy, even with gloves
• One-time use only
• Maximum voltage 600V; 1,000V in signs and fixtures
• For use with underground conductors – copper to copper only
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 17-63
Frequently Bought Together
ATO/ATC Fuse 30A Green
Couldn't load pickup availability
Right Angle Safety LED Light 3x AA 7.44"
Couldn't load pickup availability
Connector Housing 20A 2-Wire Shroud
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Cable Tie 13.38" Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Female Quick Slide Terminal 12 to 10 AWG Clear
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Term-A-Nut Ring Terminal Connector 22 to 12 AWG
Couldn't load pickup availability
Waterproof Wire Connector 14 to 6 AWG
Couldn't load pickup availability
T/R Plus Wire Connector 22 to 8 AWG
Couldn't load pickup availability
High Temperature Wire Connector 22 to 14 AWG
Couldn't load pickup availability
Wire Nut Watertight 2 - 10 Gauge/2 - 6 Gauge Dark Blue
Couldn't load pickup availability
T/R Plus Wire Connector 22 to 8 AWG
Couldn't load pickup availability
Product Description
• The fast, easy way to make direct bury and other moisture-sensitive splices – just insert the stripped wires through the silicone sealant and twist them into the connector• No pre-twisting of wires
• A square-wire spring locks wires in place – spring scores thread into wire for safe, tight grip
• Silicone sealant never leaks or hardens – locks out moisture and air
• Ribbed housing makes turning easy, even with gloves
• One-time use only
• Maximum voltage 600V; 1,000V in signs and fixtures
• For use with underground conductors – copper to copper only
Technical Specifications
| Item#: | 98952 |
|---|---|
| Wire Gauge | 22 (3 wire)-12 (4 wire) AWG |
| Voltage Rating | 600V Maximum for Building Wire 1,000V Maximum in Signs and Fixtures |
| Color | Blue |
| Temperature Range | –50 to 167 F |
| Celcius Temperature Range | –45 to 75 C |
| Length | 2 " |
| O.D. | 13/16 " |
| Wire Usage | Three 22 Ga. Minimum; Four 12 Ga. or Three 10 Ga. Maximum |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.18 lb |
