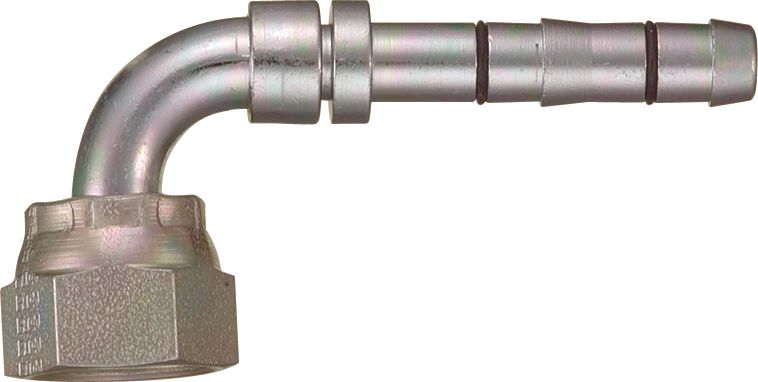

E-Z Clip Series Field Attachable Elbow, Carbon Steel, Female O-Ring Seal, 90°, 1/2" (-10) x 1-14 (-10)
(Pack of
1)
SKU:17500 Item#: 17500
• Make your own hose assemblies in minutes
• Reduce downtime and increase productivity
• Does not require hose-crimping machinery
• Typical applications include: Truck and bus fleets, construction equipment, military vehicles, agricultural equipment, refrigerated trucks (dairy and produce)
Use with GH001 Multi-Refrigerant Hose
Assembly Instructions
Step 1: Cut the hose. Be sure the cut is made square to the hose length.
Step 2: Slip on two clips.
Step 3: Oil the nipple. This MUST be done to lower the force of nipple insertion.
Step 4: Insert the nipple into the hose. Be sure to wipe excess oil from the nipple and hose.
Step 5: Snap the cage into the groove on the nipple.
Step 6: Slide the clips over the cage arms and into the channels on each arm.
Step 7: Close the clips.
E-Z Clip® – Completed assembly.
NOTE: Pilot O-rings are not included and must be purchased separately.
CAUTION: Failure to follow these instructions and/or the use of Weatherhead® hose with fittings supplied by other manufacturers may result in unreliable and unsafe hose assemblies, which may result in sudden or unintended escape of refrigerant gases. Personal injury and/or violations of the EPA regulations may occur as a consequence.Eaton recommends adherence to all guidelines, including EPA guidelines, concerning the services of refrigerant systems.
Couldn't load pickup availability
Catalog page#: 8-125
Frequently Bought Together
Z Series Crimp-On Hose End 1/2" x 1-14
Couldn't load pickup availability
Z Series Crimp-On Elbow Flare 45° 1/2" x 3/4-16
Couldn't load pickup availability
Crimp-On Hose Coupling 3/8" x 3/8-18
Couldn't load pickup availability
Hydraulic Plug, 1-1/16-12"(12) Male JIC SAE 37 Degree Flare
Couldn't load pickup availability
Straight Thread O-Ring Buna-N 0.755 x 0.097"
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/4" x 1-3/16-12
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/8-27
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 9/16-18
Couldn't load pickup availability
Interchangeable Hex Bit Set 20Pc Torx
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Cable Tie 13.38" Black
Couldn't load pickup availability
Product Description
• Make your own hose assemblies in minutes• Reduce downtime and increase productivity
• Does not require hose-crimping machinery
• Typical applications include: Truck and bus fleets, construction equipment, military vehicles, agricultural equipment, refrigerated trucks (dairy and produce)
Use with GH001 Multi-Refrigerant Hose
Assembly Instructions
Step 1: Cut the hose. Be sure the cut is made square to the hose length.
Step 2: Slip on two clips.
Step 3: Oil the nipple. This MUST be done to lower the force of nipple insertion.
Step 4: Insert the nipple into the hose. Be sure to wipe excess oil from the nipple and hose.
Step 5: Snap the cage into the groove on the nipple.
Step 6: Slide the clips over the cage arms and into the channels on each arm.
Step 7: Close the clips.
E-Z Clip® – Completed assembly.
NOTE: Pilot O-rings are not included and must be purchased separately.
CAUTION: Failure to follow these instructions and/or the use of Weatherhead® hose with fittings supplied by other manufacturers may result in unreliable and unsafe hose assemblies, which may result in sudden or unintended escape of refrigerant gases. Personal injury and/or violations of the EPA regulations may occur as a consequence.Eaton recommends adherence to all guidelines, including EPA guidelines, concerning the services of refrigerant systems.
Technical Specifications
| Item#: | 17500 |
|---|---|
| Manufacturer Model #: | FJ5994-04-1010S |
| Manufacturer Series Number | E-Z Clip Series |
| Attachment Method | Field Attachable |
| Fitting Dimension A (Hose) | 1/2 (-10) " |
| Dash Size | -10 |
| Gender | Female |
| Fitting End Style | O-Ring Seal |
| Fitting End Type | Swivel |
| Fitting Angle | 90 ° |
| Fitting Dimension B (Working End) | 1-14 (-10) |
| Weatherhead No. | FJ5994-04-1010S |
| Size | (-10)X(-10) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 0.29 lb |
