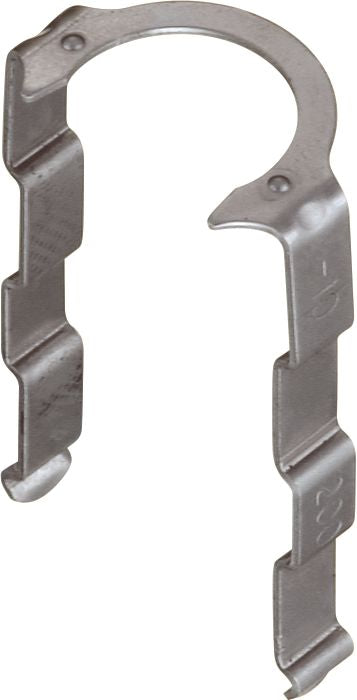

E-Z Clip Series Hydraulic Field Attachable Hose Cage, Carbon Steel, 5/16 (-6) x 5/16 (-6)
(Pack of
4)
SKU:17430 Item#: 17430
• Make your own hose assemblies in minutes• Reduce downtime and increase productivity• Does not require hose-crimping machinery• Typical applications include: Truck and bus fleets, construction equipment, military vehicles, agricultural equipment, refrigerated trucks (dairy and produce)
Use with GH001 Multi-Refrigerant Hose
Assembly InstructionsStep 1: Cut the hose. Be sure the cut is made square to the hose length.Step 2: Slip on two clips.Step 3: Oil the nipple. This MUST be done to lower the force of nipple insertion.Step 4: Insert the nipple into the hose. Be sure to wipe excess oil from the nipple and hose.Step 5: Snap the cage into the groove on the nipple.Step 6: Slide the clips over the cage arms and into the channels on each arm.Step 7: Close the clips.E-Z Clip® – Completed assembly.
NOTE: Pilot O-rings are not included and must be purchased separately.
CAUTION: Failure to follow these instructions and/or the use of Weatherhead® hose with fittings supplied by other manufacturers may result in unreliable and unsafe hose assemblies, which may result in sudden or unintended escape of refrigerant gases. Personal injury and/or violations of the EPA regulations may occur as a consequence.Eaton recommends adherence to all guidelines, including EPA guidelines, concerning the services of refrigerant systems.
Couldn't load pickup availability
Catalog page#: 8-123
Frequently Bought Together
Crimp-On Hose Coupling 3/8" x 9/16-18
Couldn't load pickup availability
Crimp-On Coupling 3/8" x 13/16-16
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 1/2-14
Couldn't load pickup availability
Crimp-On Coupling 3/8" x 11/16-16
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose Rubber 0.69" x 50'
Couldn't load pickup availability
KH Series Crimp-On Elbow Flare 90° 1/2" x 3/4-16
Couldn't load pickup availability
Crimp-On Hose Coupling 1/2" x 3/4-16
Couldn't load pickup availability
Hose Clamp 304 SS 3/4 to 1-3/4"
Couldn't load pickup availability
Crimp-On Hose Coupling 3/8" x 9/16-18
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Product Description
• Make your own hose assemblies in minutes• Reduce downtime and increase productivity• Does not require hose-crimping machinery• Typical applications include: Truck and bus fleets, construction equipment, military vehicles, agricultural equipment, refrigerated trucks (dairy and produce)Use with GH001 Multi-Refrigerant Hose
Assembly InstructionsStep 1: Cut the hose. Be sure the cut is made square to the hose length.Step 2: Slip on two clips.Step 3: Oil the nipple. This MUST be done to lower the force of nipple insertion.Step 4: Insert the nipple into the hose. Be sure to wipe excess oil from the nipple and hose.Step 5: Snap the cage into the groove on the nipple.Step 6: Slide the clips over the cage arms and into the channels on each arm.Step 7: Close the clips.E-Z Clip® – Completed assembly.
NOTE: Pilot O-rings are not included and must be purchased separately.
CAUTION: Failure to follow these instructions and/or the use of Weatherhead® hose with fittings supplied by other manufacturers may result in unreliable and unsafe hose assemblies, which may result in sudden or unintended escape of refrigerant gases. Personal injury and/or violations of the EPA regulations may occur as a consequence.Eaton recommends adherence to all guidelines, including EPA guidelines, concerning the services of refrigerant systems.
Technical Specifications
| Item#: | 17430 |
|---|---|
| Manufacturer Model #: | 1F40105-06C |
| Manufacturer Series Number | E-Z Clip Series |
| Attachment Method | Field Attachable |
| Fitting Dimension A (Hose) | 5/16 (-6) " |
| Dash Size | -6 |
| Gender | Hose Cage |
| Fitting End Style | E-Z Clip Hose Cage |
| Fitting Dimension B (Working End) | 5/16 (-6) |
| Weatherhead No. | 1F40105-06C |
| Pilot Size | (-6) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 0.03 lb |
