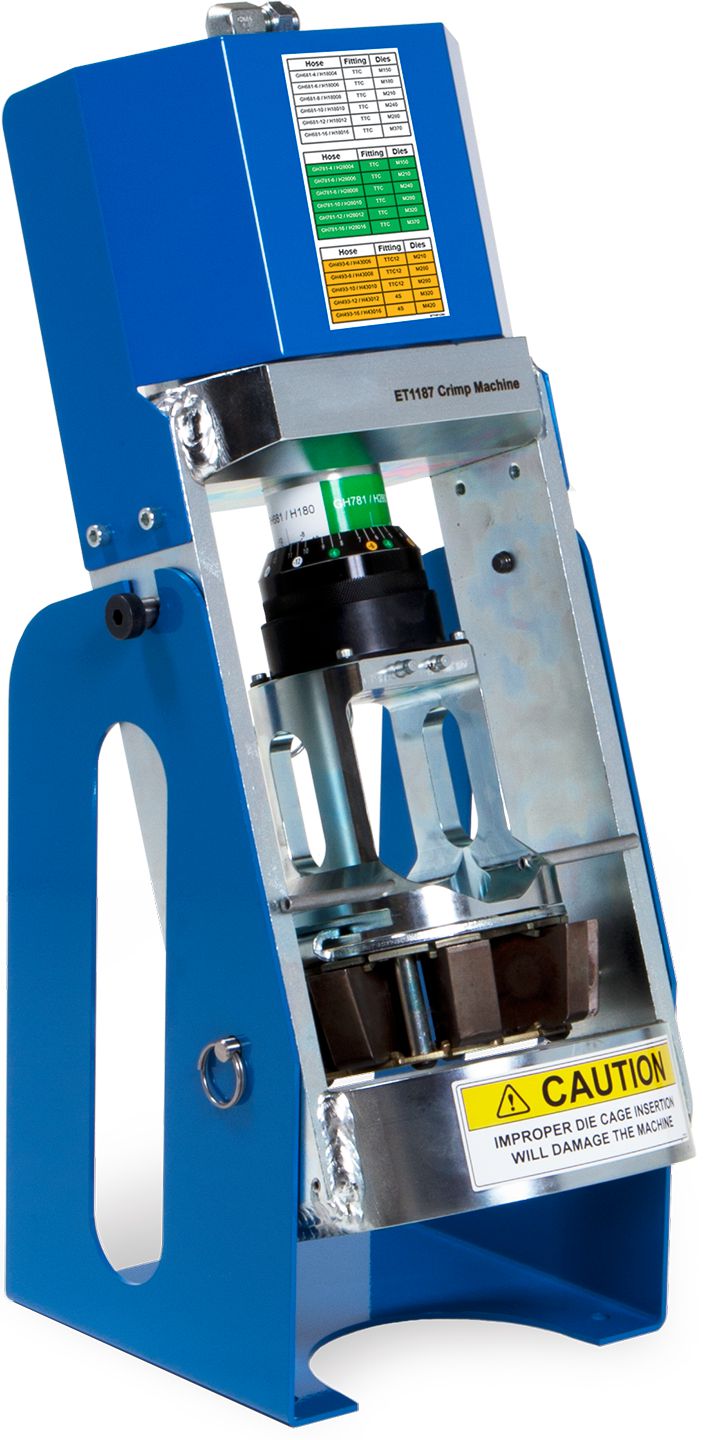

ET1187 Portable Variable Crimp Machine - Bench Mount with Air/Hydraulic Pump
(Pack of
1)
SKU:1600766 Item#: 1600766
The ET1187 crimper is Eaton's most economical variable crimper to date. It boasts a broad crimping capability with a new "ease-of-use" that is sure to excite hose assemblers in the field.
• Overall press capacity of up to 1-1/4" (-20) for braided hose and up to 1" (-16) for spiral hose
• Type: Variable
• Size: 9"W x 22"H x 11"D
• Weight: 65 lbs.
The ET1187 crimper is designed to easily adjust to the Aeroquip™ and Weatherhead® core products. It’s as simple as turning the collar to the correct color to match the layline on the hose. Adjust the ring so that the correct size dot aligns with the correct size line on the collar and the machine is set for the correct crimp. Load the correct crimp die based on the crimp die chart attached to the machine, and the machine is ready to crimp.
Couldn't load pickup availability
Catalog page#: 8-29
Frequently Bought Together
MC36 Die Cage 1"
Couldn't load pickup availability
Portable Barb-Lok Tool
Couldn't load pickup availability
Equipment & Parts POCKET THREAD ID KIT
Couldn't load pickup availability
KH Series Crimp-On Elbow Flare 90° 1/2" x 3/4-16
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 7/16-20
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 9/16-18
Couldn't load pickup availability
DOT Elbow Male Nylon 3/8 x 1/4-18
Couldn't load pickup availability
Hose Clamp 301 SS 1-5/16 to 2-1/4"
Couldn't load pickup availability
Miniature Clamp SS 5/16 to 7/8"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Product Description
The ET1187 crimper is Eaton's most economical variable crimper to date. It boasts a broad crimping capability with a new "ease-of-use" that is sure to excite hose assemblers in the field.• Overall press capacity of up to 1-1/4" (-20) for braided hose and up to 1" (-16) for spiral hose
• Type: Variable
• Size: 9"W x 22"H x 11"D
• Weight: 65 lbs.
The ET1187 crimper is designed to easily adjust to the Aeroquip™ and Weatherhead® core products. It’s as simple as turning the collar to the correct color to match the layline on the hose. Adjust the ring so that the correct size dot aligns with the correct size line on the collar and the machine is set for the correct crimp. Load the correct crimp die based on the crimp die chart attached to the machine, and the machine is ready to crimp.
Technical Specifications
| Item#: | 1600766 |
|---|---|
| Description | Air/Hydraulic Pump and ET1187 Variable Bench Mount Crimper |
| Crimper | ET1187 Variable Crimper |
| Power Source | Air/Hydraulic Pump |
| UNSPSC #: | 27121500 |
| TAA Compliant: | Yes |
