Home Eye Bolts Eye Bolt, Lifting, M20 x2.5
Eye Bolts

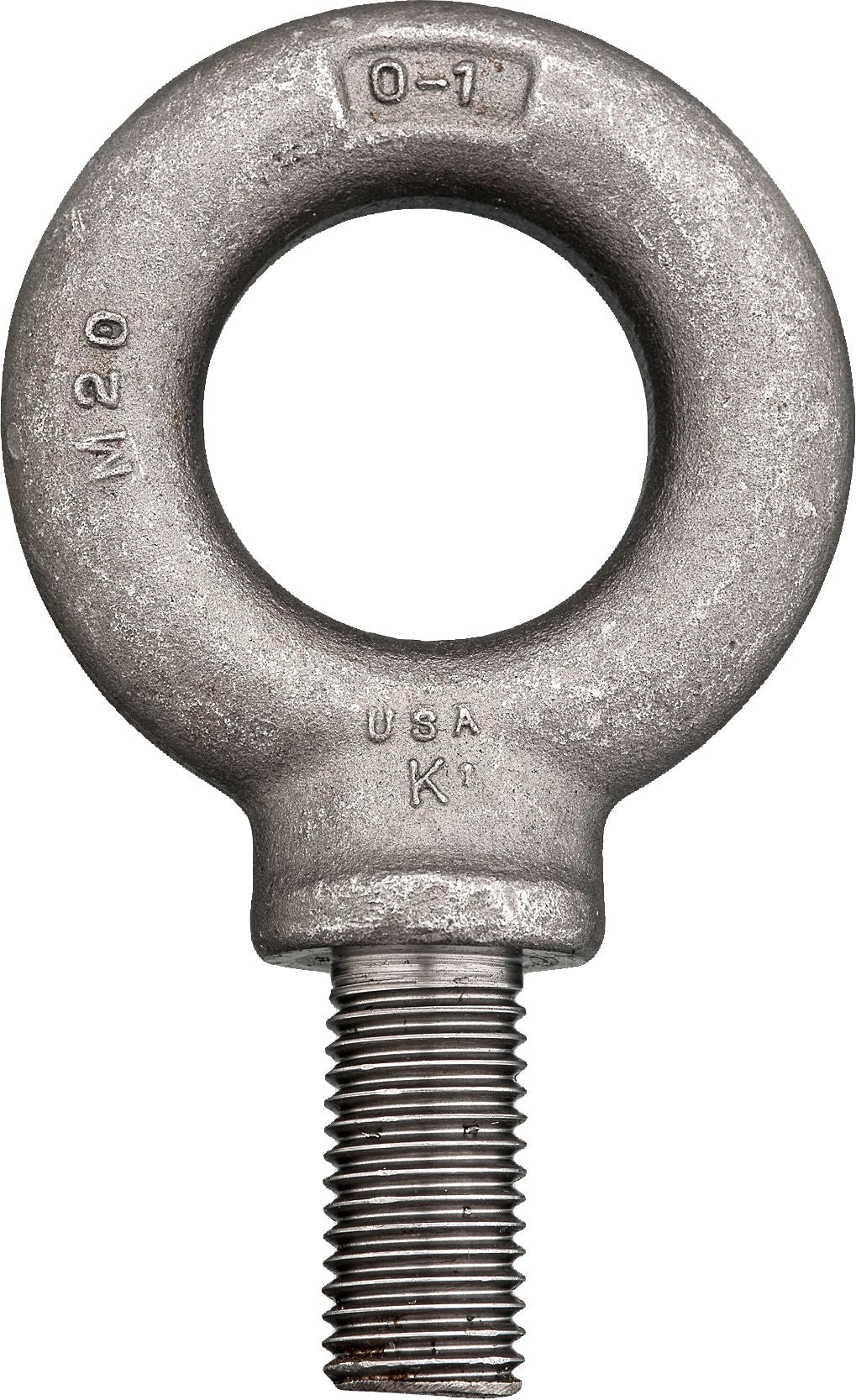

Eye Bolt, Lifting, M20 x2.5
(Pack of 1.0)

Lawson Products

• Shoulder pattern
• Drop-forged steel
• Manufactured from C-1030 steel
• Heat-treated
Always match working loads when making chain assemblies.
Safe working load capacities for 90° pull not available, as using lift angles exceeding 45° are not recommended for this product. CAUTION: Do not exceed safe working load. Angular lifts should be avoided whenever possible.

Read More
Check Availability

Frequently Bought Together


Eyebolt, Machinery, Stainless Steel, 5/16" x 1-1/8"

Item#: 1442160

Shoulder Eyebolt, Machinery, Self-Colored, 7/16" x 1-3/8"

Item#: 1593365

Shoulder Eyebolt, Machinery, Galvanized, M18 x 2.5 x 51

Item#: 1442301

Spring Link, 3/16", 100 lb WLL, Zinc

Item#: 1424960

Quick Link, Stainless Steel, 3/16", 800 LB WLL

Item#: 1427747

Welded Eye Bolt with Nut, Stainless Steel, 6mm, 400 lb WLL

Item#: 1427879

Wire Rope Sleeve, 1/8", Copper, Zinc Plated

Item#: 1440328

Drum Dolly 55 Gal. 1400 Lb Capacity 5 Wheel

Item#: 10868

Screw Pin Anchor Shackle, 5/16", 1,500 lb WLL

Item#: 1424879

Stepdown Butt Connector 22 to 18/16 to 14 AWG

Item#: 1495188

Qwik Stik® Electrolyte Powder Mix Grape

Item#: SF12394

Utility Knife, Folding , 4" Closed

Item#: FA5474

Product Description

• Shoulder pattern
• Drop-forged steel
• Manufactured from C-1030 steel
• Heat-treated
Always match working loads when making chain assemblies.
Safe working load capacities for 90° pull not available, as using lift angles exceeding 45° are not recommended for this product. CAUTION: Do not exceed safe working load. Angular lifts should be avoided whenever possible.

Technical Specifications

Item#: 59243
Type Machinery Eye Bolt
Style Shoulder Pattern
Material Forged Steel
Thread Size M20 x 2.5
Eye I.D. 41 mm
Eye O.D. 81 mm
Overall Length 135.4 mm
Thread Length 40 mm
Working Load Limit 2,860 kg
UNSPSC #: 31162600
TAA Compliant: Yes
Weight: 1.52 lb
