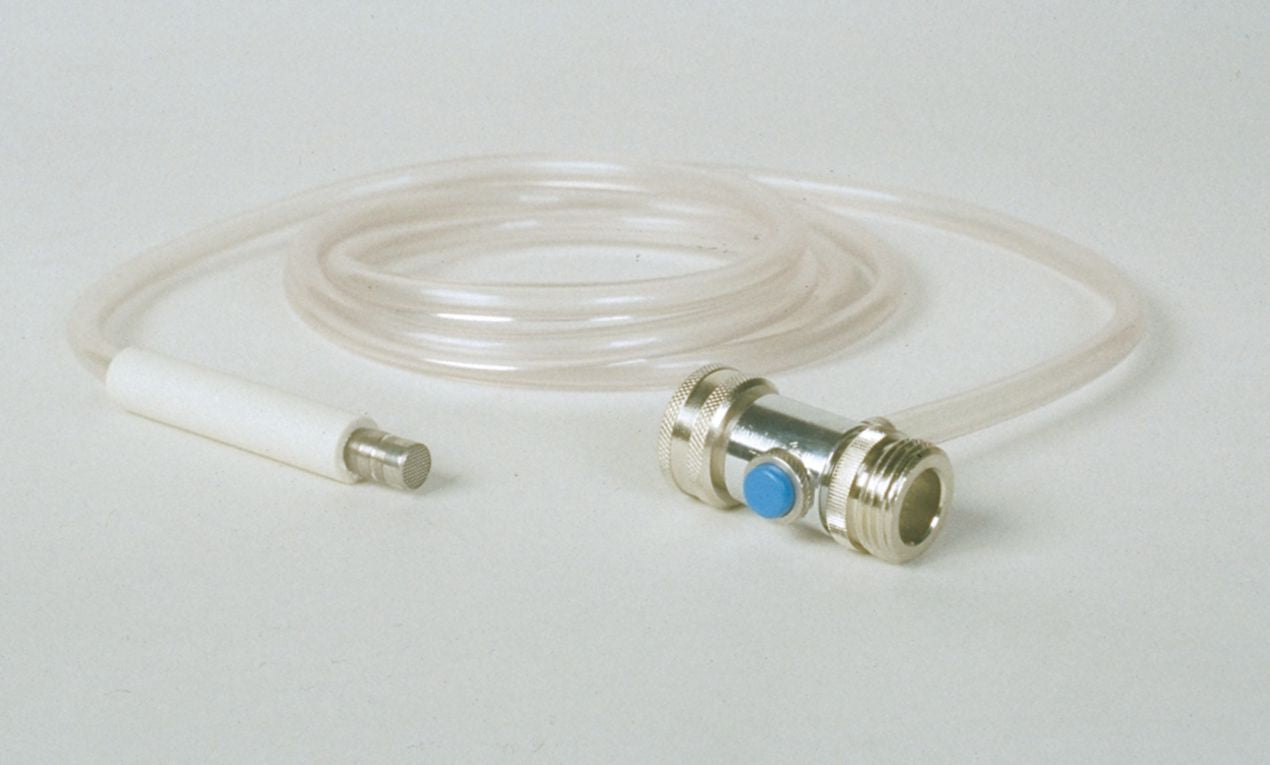

Faucet Mount Proportioner Eductor #625
(Pack of
1.0)
Ensure the right proportion. Plastic tube drops into chemical drum, pail or bottle, and connects to threaded faucet or to ordinary water hose for proper proportion of product to water. Different color-coded metering tips automatically give the dilution rate you select.
INSTALLATION
Note: All installations must conform with local plumbing codes and use approved backflow preventers.
Screw proportioner directly onto garden hose type faucets. Remove inlet adapters for mounting onto standard external aerator threads. For other faucets, see parts break-down for adapter part numbers. Select a metering tip, and screw it into the inlet barb.
Place the chemical container in a convenient location not more than 6 feet below the proportioner (greater lifts will reduce injection capacities). Insert the vinyl supply tubing with the foot end into the chemical container. Cut the vinyl tube to any convenient length that will allow it to extend from the bottom of the chemical container to the proportioner inlet barb.
OPERATION
WARNING: USE CARE WHEN HANDLING HAZARDOUS CHEMICALS
Turn on water and press the blue button to draw in chemical. When water is turned off, proportioner will reset to dispense clear water.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 16-33
Frequently Bought Together
Concrete Finishing Trowel 14"x4"
Couldn't load pickup availability

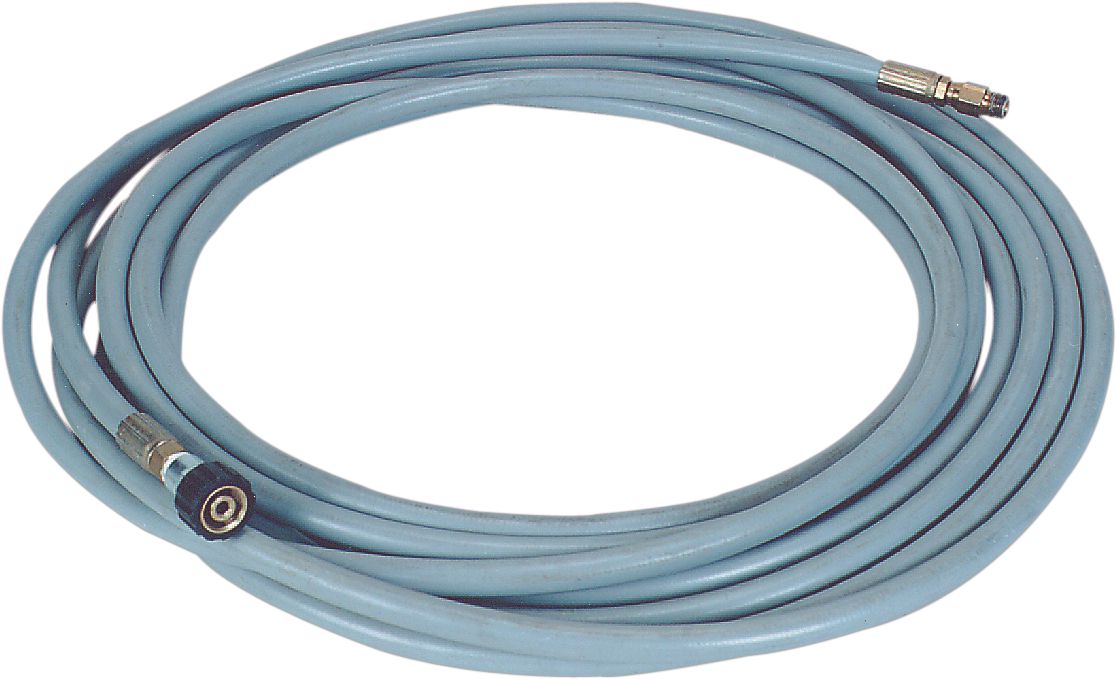

Extension/Replacement Pressure Washer Hose 20'
Couldn't load pickup availability
Dip Basket 5 to 6gal
Couldn't load pickup availability
Reclaimed Mixed Color T-Shirt Rags
Couldn't load pickup availability
Premium Polypropylene Packaging Tape 2" x 55 Yards
Couldn't load pickup availability
Small Medium and Large Funnel Kit 3Pcs
Couldn't load pickup availability
3/8" Drive, Cross-Over Deep Socket, 1/2''
Couldn't load pickup availability
Hex Cap Screw 316 Stainless Steel 3/8-16 x 4"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-28
Couldn't load pickup availability
Oil-Only Sorbent Pad
Couldn't load pickup availability
Qwik Stik® Electrolyte Powder Mix 0 Cal Orange
Couldn't load pickup availability
WypAll X80 ShopPro Towel 9.1 x 16.8"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
Paint Marker White
Couldn't load pickup availability
Valve Action® Permanent Paint Marker Orange
Couldn't load pickup availability
Valve Action® Permanent Paint Marker Yellow
Couldn't load pickup availability
Product Description
Ensure the right proportion. Plastic tube drops into chemical drum, pail or bottle, and connects to threaded faucet or to ordinary water hose for proper proportion of product to water. Different color-coded metering tips automatically give the dilution rate you select.INSTALLATION
Note: All installations must conform with local plumbing codes and use approved backflow preventers.
Screw proportioner directly onto garden hose type faucets. Remove inlet adapters for mounting onto standard external aerator threads. For other faucets, see parts break-down for adapter part numbers. Select a metering tip, and screw it into the inlet barb.
Place the chemical container in a convenient location not more than 6 feet below the proportioner (greater lifts will reduce injection capacities). Insert the vinyl supply tubing with the foot end into the chemical container. Cut the vinyl tube to any convenient length that will allow it to extend from the bottom of the chemical container to the proportioner inlet barb.
OPERATION
WARNING: USE CARE WHEN HANDLING HAZARDOUS CHEMICALS
Turn on water and press the blue button to draw in chemical. When water is turned off, proportioner will reset to dispense clear water.
Technical Specifications
| Item#: | DD1076 |
|---|---|
| Type | Faucet Mount Proportioner |
| Style | Faucet Mount |
| UNSPSC #: | 40151552 |
| TAA Compliant: | Yes |
| Weight: | 0.8 lb |
