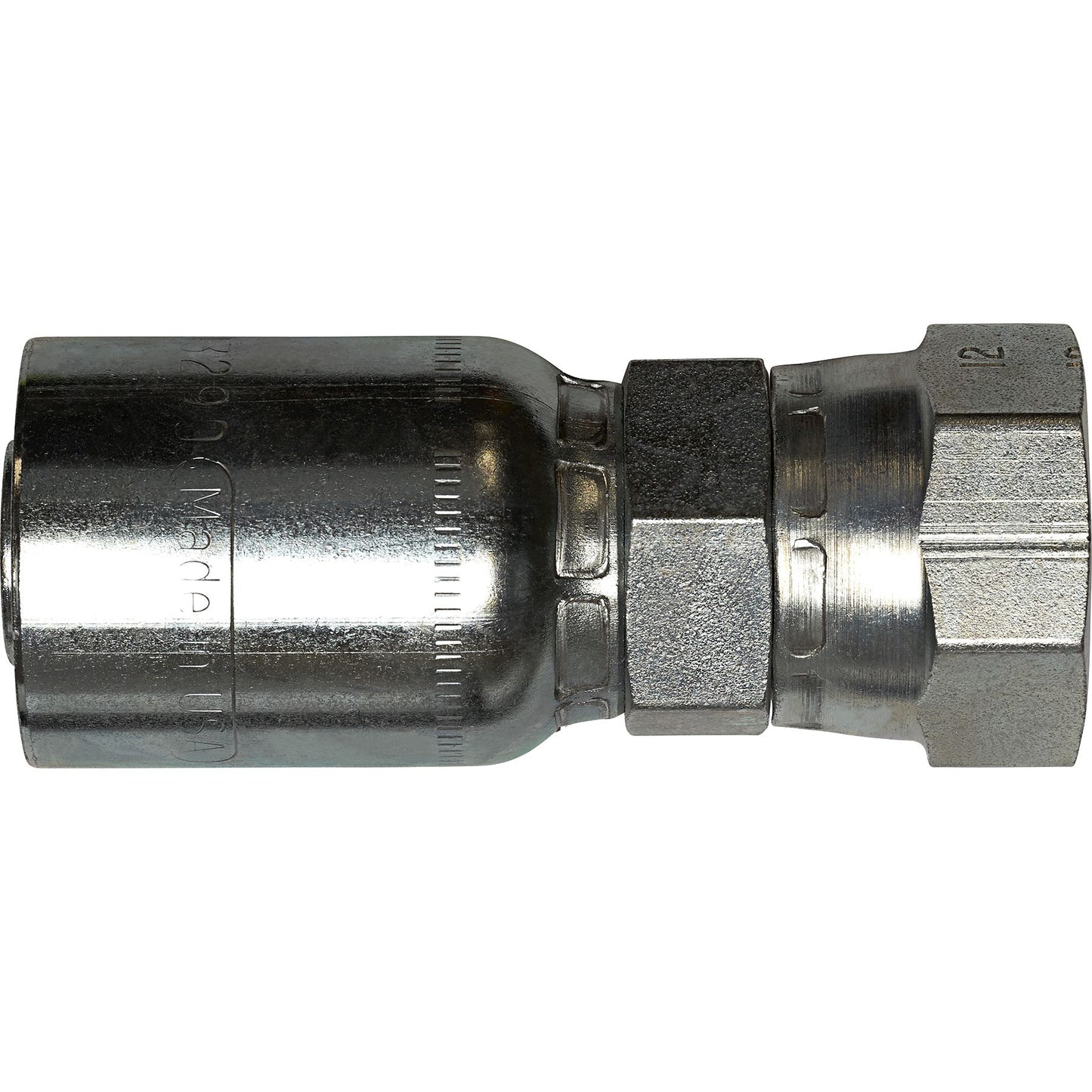

Female BSPP 60 Degee Flare - British Standard Pipe Parallel 60° Flare Straight 5/8 (-10)x G-5/8-14** Crimp-on End Fitting
(Pack of
2)
SKU:1562189 Item#: 1562189
These fittings are designed to be crimped with Kurt 100R2S and 100R16S hoses
G as part of thread size is ISO designation for parallel thread
Frequently Bought Together
MityLite™ 1910 LED Flashlight 1x AAA 3.6" Black
Item#: 1328127
Couldn't load pickup availability
MityLite™ 1910 LED Flashlight 1x AAA 3.6" Black
Item#: 1328127
Couldn't load pickup availability
MityLite™ 1910 LED Flashlight 1x AAA 3.6" Black
Item#: 1328127
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Item#: 1368141
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Item#: 1368140
Couldn't load pickup availability
High Solids Paints Gloss Black
Item#: 1509224
Couldn't load pickup availability
Product Description
These fittings are designed to be crimped with Kurt 100R2S and 100R16S hosesG as part of thread size is ISO designation for parallel thread
Technical Specifications
| Item#: | 1562189 |
|---|---|
| Manufacturer Model #: | F-BSPX-10-10 |
| Attachment Method | Crimp-on |
| Fitting Dimension A (Hose) | 5/8 (-10) " |
| Dash Size | -10 |
| Gender | Female |
| Fitting End Style | BSPP 60 Degree Flare - British Standard Pipe Parallel 60 Degree Flare |
| Fitting End Type | Swivel |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | G-5/8-14 (-10) |
| Size | (-10)X(-10) |
| Hex Size | 1-3/16 " |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 0.89 lb |
