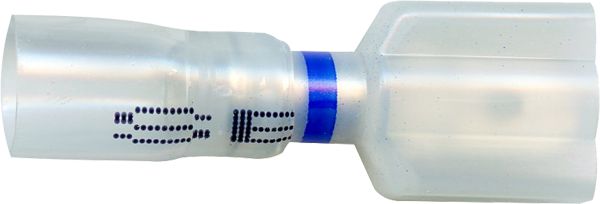

Female Quick Slide Terminal 16 to 14 AWG Blue
(Pack of
25.0)
The dual protection of heat shrink tubing, pre-shrunk around a nylon-insulated terminal, is an excellent product for harsh, over-the-road and off-road heavy equipment applications.
• Dual wall self-seals if accidentally punctured prior to heating
• Clear tubing allows visual inspection and shrinks faster than standard tubing
• Inspection hole completely seals when heat is applied
• Provides positive strain relief at the flex point
• Vapor-proof bond protects connection from moisture, air, dirt, dust, oil and abrasion
3-Piece Heat Seal
• Tensile strength: 2,200 PSI
• Elongation: 600%
• Rated at 600V
• Female – Superior clamping power even after many connections
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 17-13
Frequently Bought Together
Female Quick Slide Terminal 22 to 18 AWG Red
Couldn't load pickup availability
Female Disconnect Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Female Disconnect Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
180-degree Wide Beam Head Light with Side Light
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Stepdown Butt Connector 24 to 22/22 to 18 AWG
Couldn't load pickup availability
Product Description
The dual protection of heat shrink tubing, pre-shrunk around a nylon-insulated terminal, is an excellent product for harsh, over-the-road and off-road heavy equipment applications.• Dual wall self-seals if accidentally punctured prior to heating
• Clear tubing allows visual inspection and shrinks faster than standard tubing
• Inspection hole completely seals when heat is applied
• Provides positive strain relief at the flex point
• Vapor-proof bond protects connection from moisture, air, dirt, dust, oil and abrasion
3-Piece Heat Seal
• Tensile strength: 2,200 PSI
• Elongation: 600%
• Rated at 600V
• Female – Superior clamping power even after many connections
Technical Specifications
| Item#: | 89463 |
|---|---|
| Type | Crimp and Heat Shrink |
| Wire Gauge | 16-14 AWG |
| Tab Width | 1/4 " |
| Connection Type | Female |
| Color | Blue |
| Approvals | CSA, UR |
| Description | Female Quick Slide |
| Style | 3-piece heat seal fully-insulated quick slides |
| UNSPSC #: | 39121432 |
| TAA Compliant: | Yes |
| Weight: | 0.14 lb |
