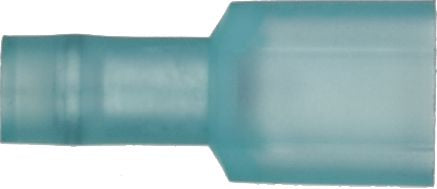

Male Quick Slide Terminal 16 to 14 AWG Blue
(Pack of
25.0)
Designed for medium-gauge wires, this quick-connect slide is ideal for mechanical and industrial applications. The butted-seam barrel with a flared seamless brass sleeve provides an extremely strong two-crimp connection. Reusable and the fastest way to connect and disconnect two wires.
• Full-length crimp barrel for excellent electrical contact
• A second crimp at the flared portion of the sleeve that provides mechanical stress relief and vibration-resistance at the junction of the wire insulation and barrel
• Nylon insulation provides high-quality, chemical-resistant electrical insulation for industrial applications
• Manufactured from high-grade copper
• Annealed to flow freely under crimping pressure for best connection
• Electro-tin-plated for greatest corrosion resistance
• 600V
• Male – dimpled tabs help hold the two connectors together even in high-vibration applications
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 17-21
Frequently Bought Together
Female Disconnect Terminal 22 to 18 AWG Red
Couldn't load pickup availability
Female Quick Slide Terminal 22 to 18 AWG Red
Couldn't load pickup availability
Female Disconnect Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
180-degree Wide Beam Head Light with Side Light
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Stepdown Butt Connector 24 to 22/22 to 18 AWG
Couldn't load pickup availability
Product Description
Designed for medium-gauge wires, this quick-connect slide is ideal for mechanical and industrial applications. The butted-seam barrel with a flared seamless brass sleeve provides an extremely strong two-crimp connection. Reusable and the fastest way to connect and disconnect two wires.• Full-length crimp barrel for excellent electrical contact
• A second crimp at the flared portion of the sleeve that provides mechanical stress relief and vibration-resistance at the junction of the wire insulation and barrel
• Nylon insulation provides high-quality, chemical-resistant electrical insulation for industrial applications
• Manufactured from high-grade copper
• Annealed to flow freely under crimping pressure for best connection
• Electro-tin-plated for greatest corrosion resistance
• 600V
• Male – dimpled tabs help hold the two connectors together even in high-vibration applications
Technical Specifications
| Item#: | 82924 |
|---|---|
| Type | Crimp |
| Wire Gauge | 16-14 AWG |
| Tab Width | 1/4 " |
| Connection Type | Male |
| Color | Blue |
| Style | Electro-Lok Fully-Insulated Quick Slides |
| UNSPSC #: | 39121432 |
| TAA Compliant: | Yes |
| Weight: | 0.13 lb |
