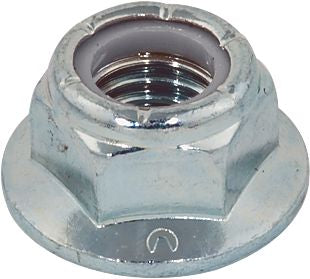

Locknut Flange with Nylon Insert, Grade F, Steel, Zinc Finish, Fine Thread, 3/4" Across Flats, 0.555" Thickness, 1/2-20
(Pack of
50)
SKU:18242 Item#: 18242
• Nylon insert has low coefficient of friction (will not damage bolt threads), high resilience, low chemical activity and relatively great hardness
• Locks uniformly over entire range of bolt thread tolerances and has low, even torque scatter, permitting repeated predictable tightening torques
• Grade F Nylon Insert Flange Nuts can be used with Grade 2 or Grade 5 fasteners
• Solves the problem of an oversized hole and eliminates the need for a washer
• Non-serrated flange will not mar the surface
Couldn't load pickup availability
Catalog page#: 3-28
Frequently Bought Together
Hex Nut Grade 8 Alloy Steel 5/8-11
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 5/16-18
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 1/2-13
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-18
Couldn't load pickup availability
DIN 980V Top Locknut Grade 10 M12-1.75
Couldn't load pickup availability
Locknut with Nylon Insert 316 SS 3/8-16
Couldn't load pickup availability
Locknut with Nylon Insert 18-8 SS 1/4-20
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 7/16-14
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/16-18
Couldn't load pickup availability
Hex Cap Screw Grade 8 5/8-11 x 2"
Couldn't load pickup availability
Hex Cap Screw Grade 8 3/8-16 x 1-1/4"
Couldn't load pickup availability
Hex Cap Screw Grade 8 1/2-13 x 1-1/2"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Product Description
• Nylon insert has low coefficient of friction (will not damage bolt threads), high resilience, low chemical activity and relatively great hardness• Locks uniformly over entire range of bolt thread tolerances and has low, even torque scatter, permitting repeated predictable tightening torques
• Grade F Nylon Insert Flange Nuts can be used with Grade 2 or Grade 5 fasteners
• Solves the problem of an oversized hole and eliminates the need for a washer
• Non-serrated flange will not mar the surface
Technical Specifications
| Item#: | 18242 |
|---|---|
| Diameter | 1/2 " |
| Thread Pitch | 20 |
| Grade | F |
| Finish | Bright Zinc |
| Type | Nylon Insert Flange Lock Nut |
| Material | Carbon Steel |
| Thickness | 0.555 " |
| Across Flats | 3/4 " |
| Thread | Fine |
| Specifications | IFI 100/107 |
| Quantity Per Package | 50.0000 |
| Flange Diameter | 1.070 " |
| UNSPSC #: | 31161712 |
| TAA Compliant: | No |
| Weight: | 2.59 lb |
