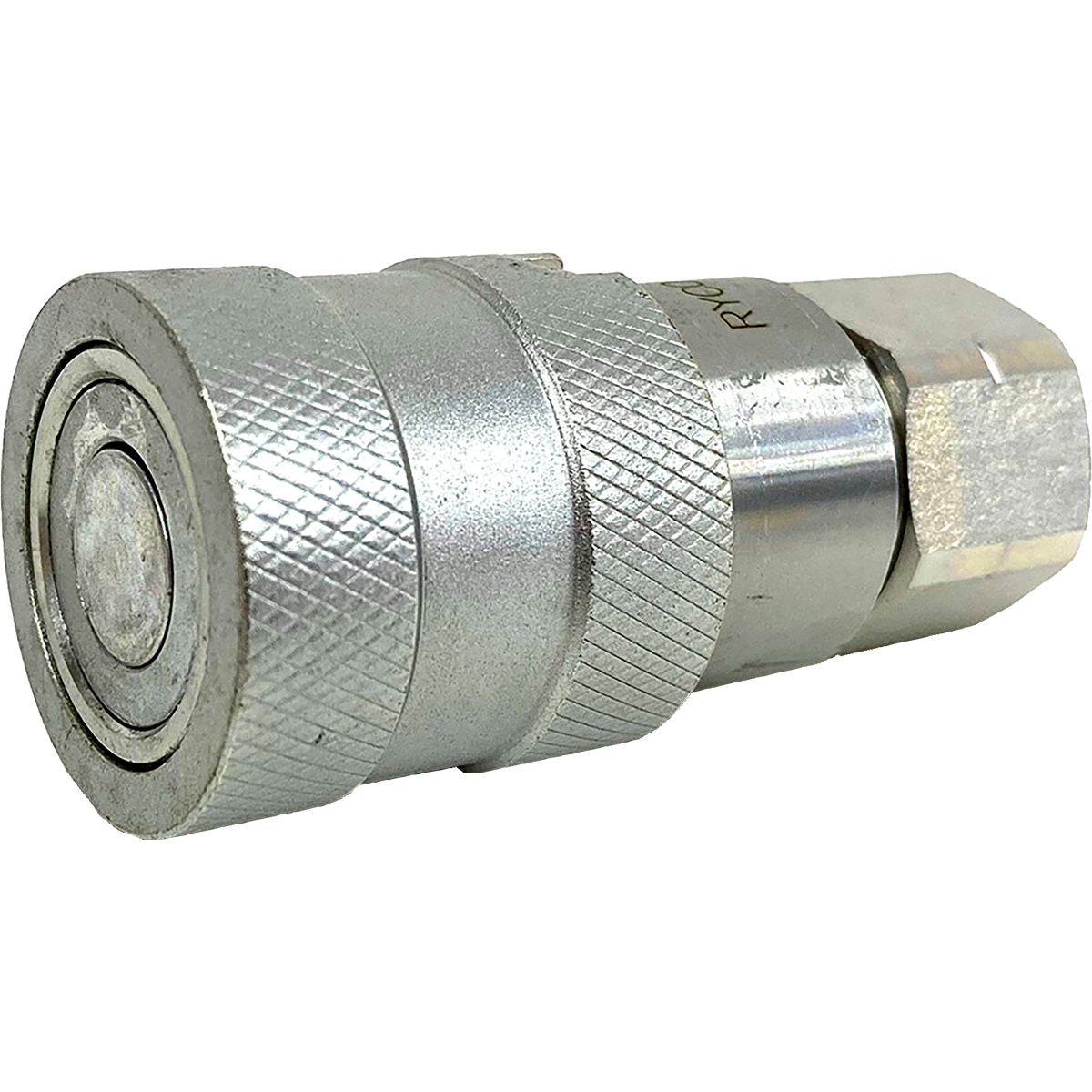

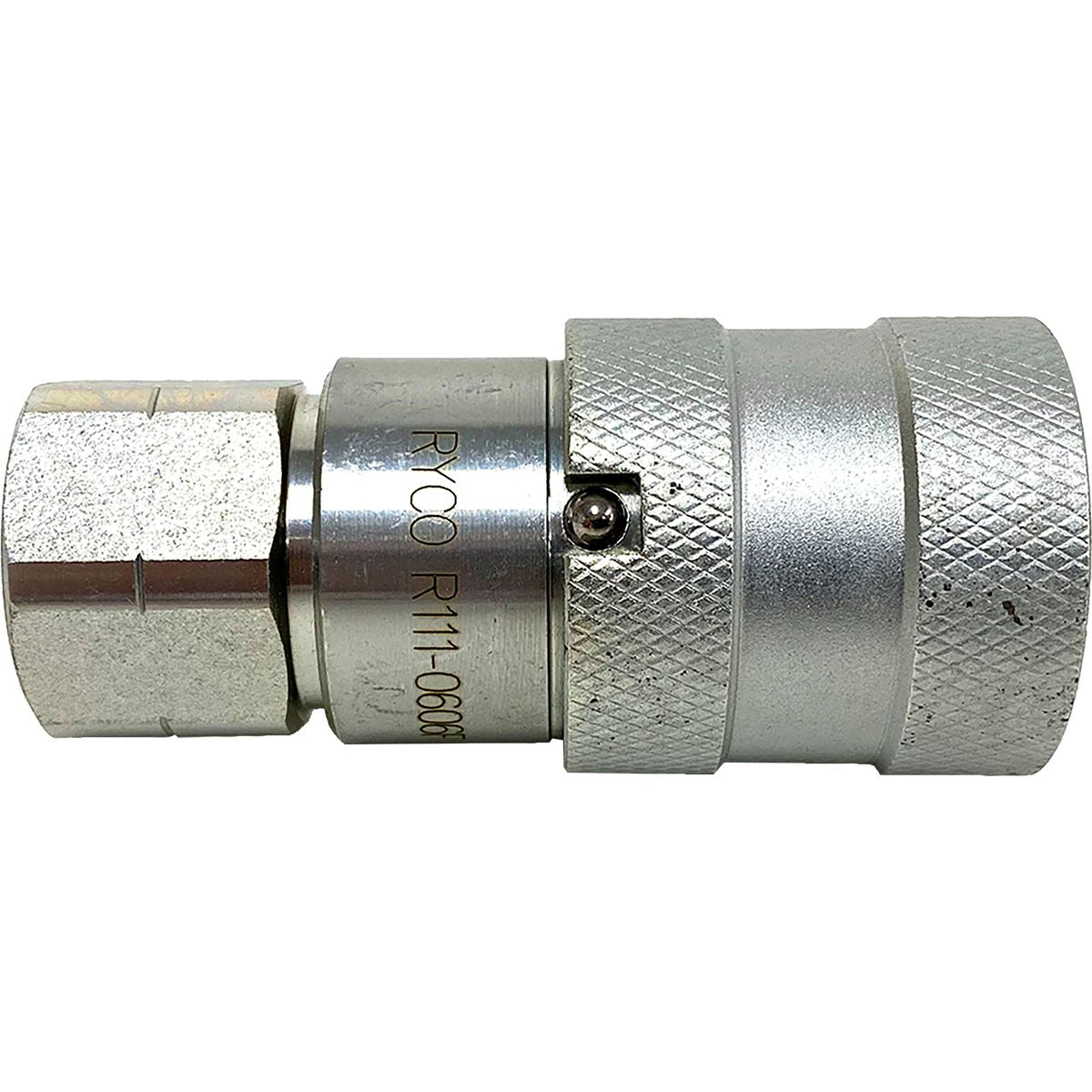

Flatface Hydraulic Quikconnect Fitting, 3/8 FPT X 3/8 Female Flatface Body, ISO 16028 Compliant, Connects Against 250 PSI Pressure
(Pack of
1)
SKU:DY44700086 Item#: DY44700086
Used in applications where hydraulic oil spillage is a safety or environmental hazard, either in plant or in the field. The flat face coupler design minimizes fluid loss on disconnection for a cleaner, safer environment. Recommended for applications where a quick changeover of equipment tools is necessary.
• Heavy-duty plating for improved service life and corrosion-resistance
• High-flow rate with low-pressure loss for smooth equipment operation
• Easily cleaned surfaces reduce the possibility of contamination
• Easy one-handed push-to-connect operation when one half of the coupling is rigidly mounted
• Connects against up to 250 PSI static pressure
• Rotating sleeve lock guards against unintentional disconnection
• Complies with ISO 16028
• Connects against 250 PSI static pressure
• Material: Steel, zinc plated and passivated for corrosion resistance
• Operating Temperature: -4°F to 257°F (-20°C to 125°C)
• Fluid Compatibility: Mineral/petroleum based hydraulic oils
• Comparable to Parker FEM, Faster FFN, Stucchi FIRG, Safeway FFE and all couplings that comply with ISO 16028
Couldn't load pickup availability
Catalog page#: LE-35
Frequently Bought Together
Hydraulic Plug, 9/16-18"(06) Male JIC SAE 37 Degree Flare
Couldn't load pickup availability
Hydraulic Hose Protector 4 x 2-1/2" Yellow
Couldn't load pickup availability
Crimp-On Hose Coupling 1/2" x 1/2-14
Couldn't load pickup availability
Pipe Coupling Brass 3/8-18 x 3/8-18
Couldn't load pickup availability
Miniature Clamp SS 5/16 to 7/8"
Couldn't load pickup availability
DOT Compression Union Brass 1/4"
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 1" x 1-11-1/2
Couldn't load pickup availability
Hydraulic Dust Cap for Coupler PVC/Rubber 1/2"
Couldn't load pickup availability
Hydraulic Quick Connect Nipple 3/4" x 3/4-14
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
Nut Torq Tite Hex Flange, 1/4-20
Couldn't load pickup availability
USS Flat Washer Steel 5/16"
Couldn't load pickup availability
1" Dia. X 1" Wide, Flap Wheel, 60 Grit, 1/4" Shank
Couldn't load pickup availability
Nut Torq Tite Hex Flange, 1/4-20
Couldn't load pickup availability
USS Flat Washer Steel 5/16"
Couldn't load pickup availability
1" Dia. X 1" Wide, Flap Wheel, 60 Grit, 1/4" Shank
Couldn't load pickup availability
Product Description
Used in applications where hydraulic oil spillage is a safety or environmental hazard, either in plant or in the field. The flat face coupler design minimizes fluid loss on disconnection for a cleaner, safer environment. Recommended for applications where a quick changeover of equipment tools is necessary.• Heavy-duty plating for improved service life and corrosion-resistance
• High-flow rate with low-pressure loss for smooth equipment operation
• Easily cleaned surfaces reduce the possibility of contamination
• Easy one-handed push-to-connect operation when one half of the coupling is rigidly mounted
• Connects against up to 250 PSI static pressure
• Rotating sleeve lock guards against unintentional disconnection
• Complies with ISO 16028
• Connects against 250 PSI static pressure
• Material: Steel, zinc plated and passivated for corrosion resistance
• Operating Temperature: -4°F to 257°F (-20°C to 125°C)
• Fluid Compatibility: Mineral/petroleum based hydraulic oils
• Comparable to Parker FEM, Faster FFN, Stucchi FIRG, Safeway FFE and all couplings that comply with ISO 16028
Technical Specifications
| Item#: | DY44700086 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Flat Face Female Coupler |
| Style | ISO 16028 |
| Standards | ISO 16028 |
| Body Size | 3/8 " |
| Thread Size | 3/8-18 |
| Thread Style | Female NPT |
| Burst Pressure | 17400 PSI |
| Seal Material | Nitrile O-Ring with PTFE Bonded Seals |
| Material | Zinc Plated Steel |
| Locking Mechanism | Multiple Metal Balls |
| Flow | 6 gal/min |
| Length | 2.52 " |
| Temperature Range | -4°F to 257°F (-20°C to 125°C) |
| Working Pressure | 4,350 PSI |
| Hex Size | 24mm (0.95") |
| Maximum Diameter | 1.26 " |
| Coupled Length | 4.25 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | No |
| Weight: | 0.535 lb |
