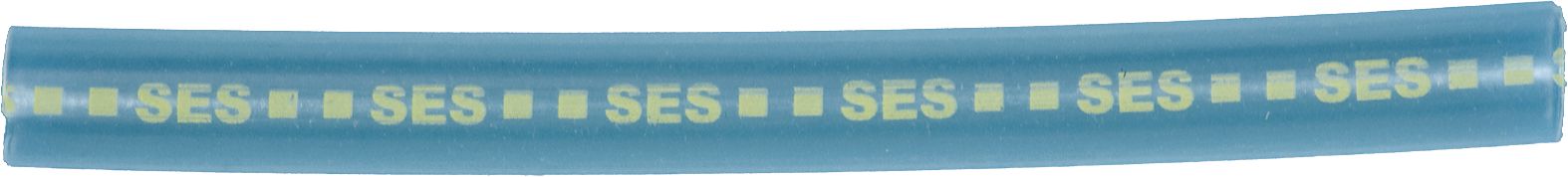

Flow Form Heat Shrink Tubing 1 1/0 2/0 AWG Blue
(Pack of
5.0)
• 3:1 shrink ratio
• Prevents failure due to corrosion, vibration, abrasion and strain
• Sturdy dual wall construction – the outer wall shrinks, providing strength, rigidity and abrasion resistance, while the inner wall provides a water-resistant seal to keep out contaminants and water
• Chemical-resistant – not affected by road salt, oil, diesel fuel, gasoline, dust, moisture and battery acid
• Easy to install – shrinks with a heat gun, torch or other heat source
• Color-coded for easy size identification
• Easily cuts to size
• High dielectric strength: 500V/mil; up to 16,000V per application
• Temperature range: –67°F to +230°F (–55°C to +110°C)
• Voltage rating in USA 600V; in Canada 32V
Applications
• Electrical terminals and connectors exposed to corrosion, pull-out or vibration
• Repair welding cables and insulate stingers and lugs
• Installation and repair of vehicular equipment wiring and lights
• Strain relief for robotic applications
• Insulate tool handles to reduce electric shock
• Seal butt connectors for in-line splices
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 17-31
Frequently Bought Together
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 16 to 14 AWG Blue
Couldn't load pickup availability
Heat Shrink Tubing 8 to 2 AWG Black
Couldn't load pickup availability
Heat Shrink Tubing 12 to 6 AWG Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 14 to 6 AWG Red
Couldn't load pickup availability
Split Wire Loom Polyethylene Black 1" ID 25'
Couldn't load pickup availability
Heat Shrink Tubing 18 to 12 AWG Clear
Couldn't load pickup availability
Product Description
• 3:1 shrink ratio• Prevents failure due to corrosion, vibration, abrasion and strain
• Sturdy dual wall construction – the outer wall shrinks, providing strength, rigidity and abrasion resistance, while the inner wall provides a water-resistant seal to keep out contaminants and water
• Chemical-resistant – not affected by road salt, oil, diesel fuel, gasoline, dust, moisture and battery acid
• Easy to install – shrinks with a heat gun, torch or other heat source
• Color-coded for easy size identification
• Easily cuts to size
• High dielectric strength: 500V/mil; up to 16,000V per application
• Temperature range: –67°F to +230°F (–55°C to +110°C)
• Voltage rating in USA 600V; in Canada 32V
Applications
• Electrical terminals and connectors exposed to corrosion, pull-out or vibration
• Repair welding cables and insulate stingers and lugs
• Installation and repair of vehicular equipment wiring and lights
• Strain relief for robotic applications
• Insulate tool handles to reduce electric shock
• Seal butt connectors for in-line splices
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Technical Specifications
| Item#: | P32330 |
|---|---|
| Type | Pre-Cut |
| Style | Dual Wall |
| Wire Gauge Coverage | 1, 1/0, 2/0 AWG |
| Length | 2 ft |
| Color | Blue |
| I.D. Before Shrinkage | 1/2 " |
| I.D. After Shrinkage | 5/32 " |
| Shrink Ratio | 3 to 1 |
| Wall Thickness Before Shrinkage | 0.030 " |
| Wall Thickness After Shrinkage | 0.055 " |
| Dielectric Strength | 500 - 16,000 V/mm |
| Voltage Rating | 600 V |
| Temperature Rating | -67°F to 230°F/ -55°C to 110°C |
| UNSPSC #: | 39121723 |
| TAA Compliant: | Yes |
| Weight: | 0.24 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
