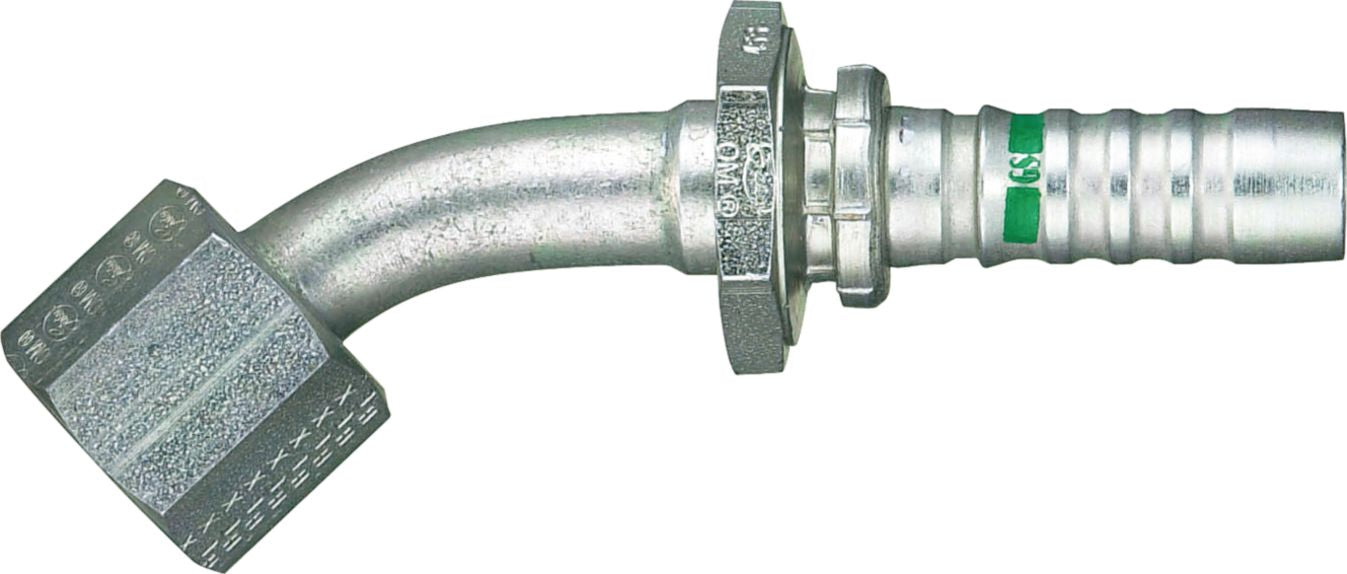

Global Spiral Series Female Flat Face O-Ring Face Seal 45° 1 (-16)x 1-11/16-12 Crimp-on End Fitting
(Pack of
1)
SKU:23132 Item#: 23132
• For use with all Gates® spiral wire hose through 1-1/4" (-20) I.D.
• When using Mobile Crimp press, MGS one-piece fittings must be used with hose I.D. over 1"
Product Description
• For use with all Gates® spiral wire hose through 1-1/4" (-20) I.D.• When using Mobile Crimp press, MGS one-piece fittings must be used with hose I.D. over 1"
Technical Specifications
| Item#: | 23132 |
|---|---|
| Manufacturer Model #: | 16GS-20FFORX45S |
| Manufacturer Series Number | Global Spiral Series |
| Attachment Method | Crimp-on |
| Fitting Dimension A (Hose) | 1 (-16) " |
| Dash Size | -16 |
| Gender | Female |
| Fitting End Style | Flat Face O-Ring Face Seal |
| Fitting End Type | Swivel |
| Fitting Angle | 45 Degrees |
| Fitting Dimension B (Working End) | 1-11/16-12 (-20) |
| Gates Number | 16GS-20FFORX45S |
| Drop Length | Short |
| Size | (-16)X(-20) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 1.65 lb |
