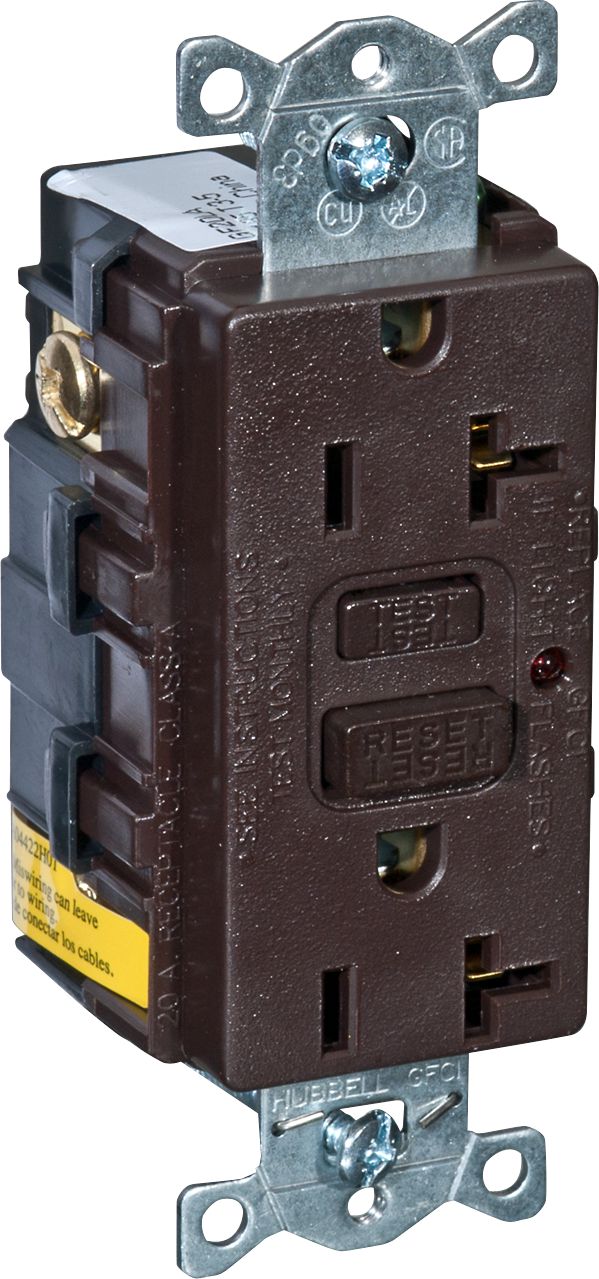

Ground Fault Receptacle 20A 125V Brown
(Pack of
1)
• Built-in LED light test feature indicates if the ground fault circuit is functioning; LED light is normally off
• Designed with safety in mind; if the line and load wires are miswired, there is no power to the face of the outlet or downstream, and the unit will not be able to reset
• Meets the requirements of new UL 943 standard effective 7/28/06
• Superior surge protection: 50 joules/250V over voltage capability, and resistant to nuisance tripping
Test Procedure: With the receptacle properly wired, press the test button. If the GFCI circuit is functional, the LED light will be OFF and the reset button will pop out. Press the reset button to re-energize. If the GFCI circuit is NOT functional, the LED light flashes red and the reset button does not pop out, indicating the receptacle should be replaced.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 17-88
Frequently Bought Together
Extension Cord Tri-Tap Adapter 15A 125V
Couldn't load pickup availability
Stepdown Butt Connector 24 to 22/22 to 18 AWG
Couldn't load pickup availability
Cable Tie 11.41" Black
Couldn't load pickup availability
Industrial Duty Connector 20A 125V
Couldn't load pickup availability
Industrial Duty Connector 20A 125V
Couldn't load pickup availability
Hospital Grade Angle Plug 20A 125V
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
Alu-Master 8-Way Torpedo Level
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
Weather Protected Plug Boot 2 Pole 3 Wire 30A 250V
Couldn't load pickup availability
Push-Pull Switch SPST 25A at 6V/15A at 12V Off-On
Couldn't load pickup availability
Industrial Duty SAF-T Connect Plug 15A 125V
Couldn't load pickup availability
Product Description
• Built-in LED light test feature indicates if the ground fault circuit is functioning; LED light is normally off• Designed with safety in mind; if the line and load wires are miswired, there is no power to the face of the outlet or downstream, and the unit will not be able to reset
• Meets the requirements of new UL 943 standard effective 7/28/06
• Superior surge protection: 50 joules/250V over voltage capability, and resistant to nuisance tripping
Test Procedure: With the receptacle properly wired, press the test button. If the GFCI circuit is functional, the LED light will be OFF and the reset button will pop out. Press the reset button to re-energize. If the GFCI circuit is NOT functional, the LED light flashes red and the reset button does not pop out, indicating the receptacle should be replaced.
Technical Specifications
| Item#: | 15509 |
|---|---|
| Style | LED Ground Fault Receptacle |
| Volts | 125 |
| NEMA Configuration | 5-20R |
| Color | Brown |
| Approvals | UL 943 Standard, CSA |
| Type | Plugs, Connectors and Receptacles |
| UNSPSC #: | 39121400 |
| TAA Compliant: | No |
| Weight: | 0.33 lb |
