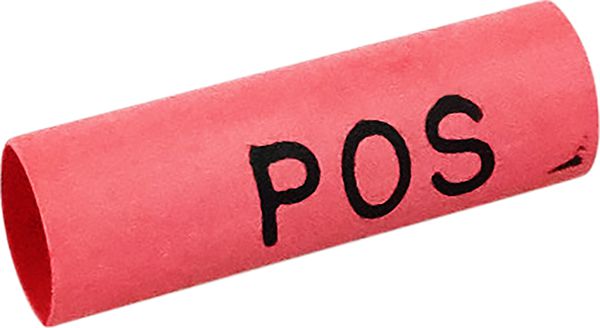

Heat Shrink Wire Marker Tag, 16 to 14 AWG, Blue, 2400 PSI, 2:1 Shrink Ratio, 400% Elongation, Positive Red Legend
(Pack of
10)
SKU:98538 Item#: 98538
• Made of pre-printed, 3/4" cross-linked polyolefin heat-shrinkable tubing
• Colors will not fade, smear or rub off
• Cannot slip or be pulled off – will not split or crack
• UL-listed and CSA-listed material – meets military standards• 2:1 shrink ratio• Tensile strength: 2,400 PSI• Elongation: 400%• Operating temperature: –67°F to +275°F (–55°C to +135°C)• Dielectric strength: 1,300V/mil• Voltage rating: 600V• Shrink temperature: 250°F (121°C)
• Provides permanent lead wire identification, strain relief and can be used as a protective sleeve
• May be used to insulate and mark terminals and connectors
Frequently Bought Together
Cable Tie 11.41" Black
Couldn't load pickup availability
Cable Tie 13.38" Black
Couldn't load pickup availability
Cable Tie 7.31" Black
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
Wire Marker Tag 8' Length 3mm Thickness #3
Couldn't load pickup availability
Wire Marker Booklet Alpha/Numeric
Couldn't load pickup availability
Heat Shrink Wire Marker Tag 22 to 18 AWG #6
Couldn't load pickup availability
Split Wire Loom Polyethylene Black 1" ID 25'
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 20 to 18 AWG Red
Couldn't load pickup availability
Super 33+ Series Vinyl Electrical Tape Black 3/4"
Couldn't load pickup availability
Product Description
• Made of pre-printed, 3/4" cross-linked polyolefin heat-shrinkable tubing• Colors will not fade, smear or rub off
• Cannot slip or be pulled off – will not split or crack
• UL-listed and CSA-listed material – meets military standards• 2:1 shrink ratio• Tensile strength: 2,400 PSI• Elongation: 400%• Operating temperature: –67°F to +275°F (–55°C to +135°C)• Dielectric strength: 1,300V/mil• Voltage rating: 600V• Shrink temperature: 250°F (121°C)
• Provides permanent lead wire identification, strain relief and can be used as a protective sleeve
• May be used to insulate and mark terminals and connectors
Technical Specifications
| Item#: | 98538 |
|---|---|
| Style | Heat-Shrink Wire Markers |
| Marker Designation | Positive (Red) |
| Color | Blue |
| Shrink Ratio | 2:1 |
| Tensile Strength | 2400 PSI |
| Elongation | 400 % |
| Operating Temperature Range | -67 - 275 °F |
| Dielectric Strength | 1,300 V/mm |
| Voltage Rating | 600 V |
| Shrink Temperature | 250 °F |
| Wire Gauge | 16-14 AWG |
| Approvals | UL, CSA, and meets military standards |
| Type | Wire Marker |
| UNSPSC #: | 39131500 |
| TAA Compliant: | Yes |
| Weight: | 0.005 lb |
