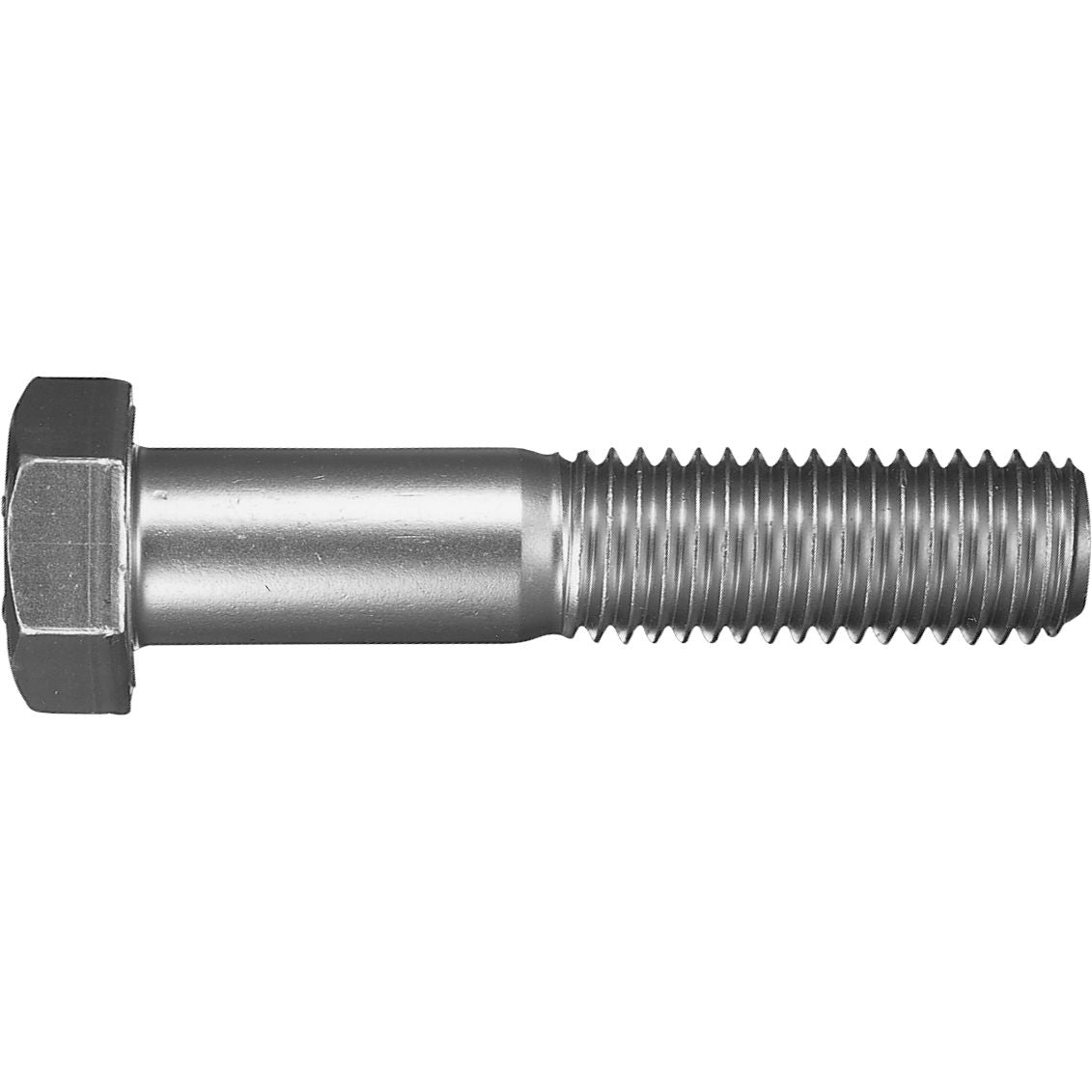

Hex Cap Screw Grade 5 1-8 x 17"
(Pack of
1.0)
• 120,000 PSI minimum tensile strength (SAE Grade 5)
• Conforms to SAE J429 material and mechanical properties
• High quality
• Available in coarse (UNC) and fine (UNF) thread types
• Product dimensions to ANSI B18.2.1
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 3-23
Frequently Bought Together
Hex Cap Screw Grade 8 Alloy Steel 3/8-16 x 1-1/2"
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 1/4-20 x 1"
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 1/4-20 x 3/4"
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 1/4-20 x 1"
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 1/4-20 x 3/4"
Couldn't load pickup availability
Hex Cap Screw Grade 5 3/8-16 x 1"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
Nylon Cable Tie 8" Black
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
Product Description
• 120,000 PSI minimum tensile strength (SAE Grade 5)• Conforms to SAE J429 material and mechanical properties
• High quality
• Available in coarse (UNC) and fine (UNF) thread types
• Product dimensions to ANSI B18.2.1
Technical Specifications
| Item#: | 21384 |
|---|---|
| Style | Industry Standard |
| Diameter | 1 " |
| Thread Pitch | 8 |
| Thread | Coarse |
| Length | 17 " |
| Type | Hex Cap Screw |
| Across Flats | 1-1/2 " |
| Material | Carbon Steel |
| Grade | 5 |
| Finish | Plain |
| Tensile Strength | 120,000 PSI |
| Head Style | Hex |
| Head Height | 39/64 " |
| Thread Form | UNR |
| Thread Length | Partial |
| Thread Length Minimum | 2-1/2 " |
| UNSPSC #: | 31161501 |
| TAA Compliant: | No |
| Weight: | 0.0 lb |
