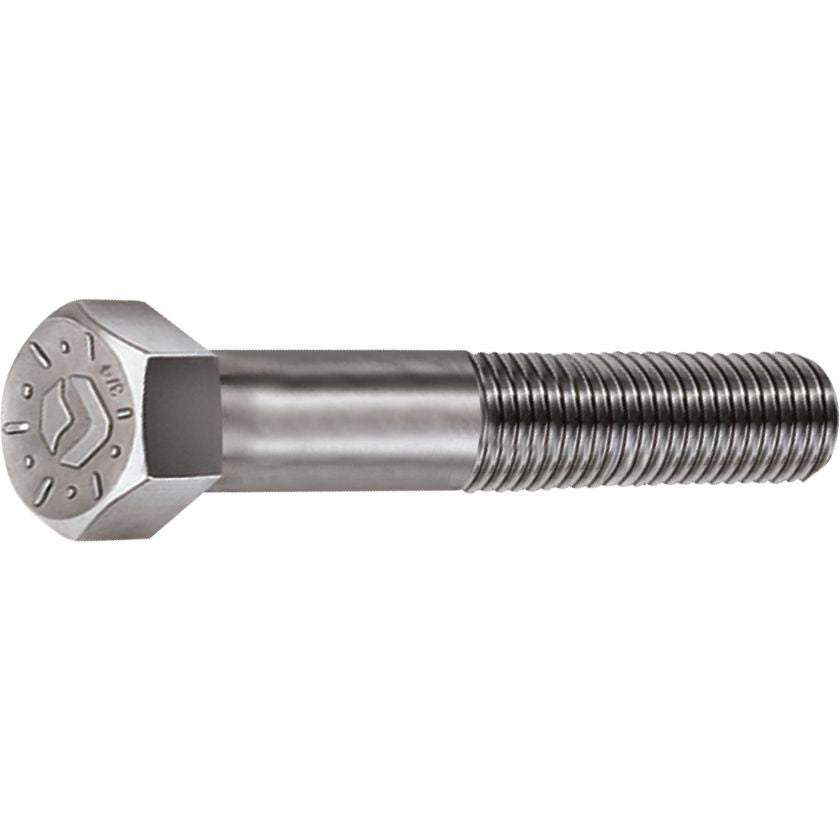

Hex Cap Screw Grade 9 Alloy Steel 3/4-10 x 2-1/2"
(Pack of
25.0)
• Ultra-high-strength matched component fastening system
• 20% stronger than Grade 8
• Fatigue/vibration-resistant UNJ thread design
• 20% higher-than-normal wrenching surface for increased safety and even distribution of torque forces
• Heat-treated, quenched and tempered
• Perma Plated for superior corrosion protection
• Proprietary head marking for improved traceability
• Diameter marked on head for easy identification
• Trailing thread does not enter the extrusion angle
• Increased length of chamfer allows easier alignment and assembly

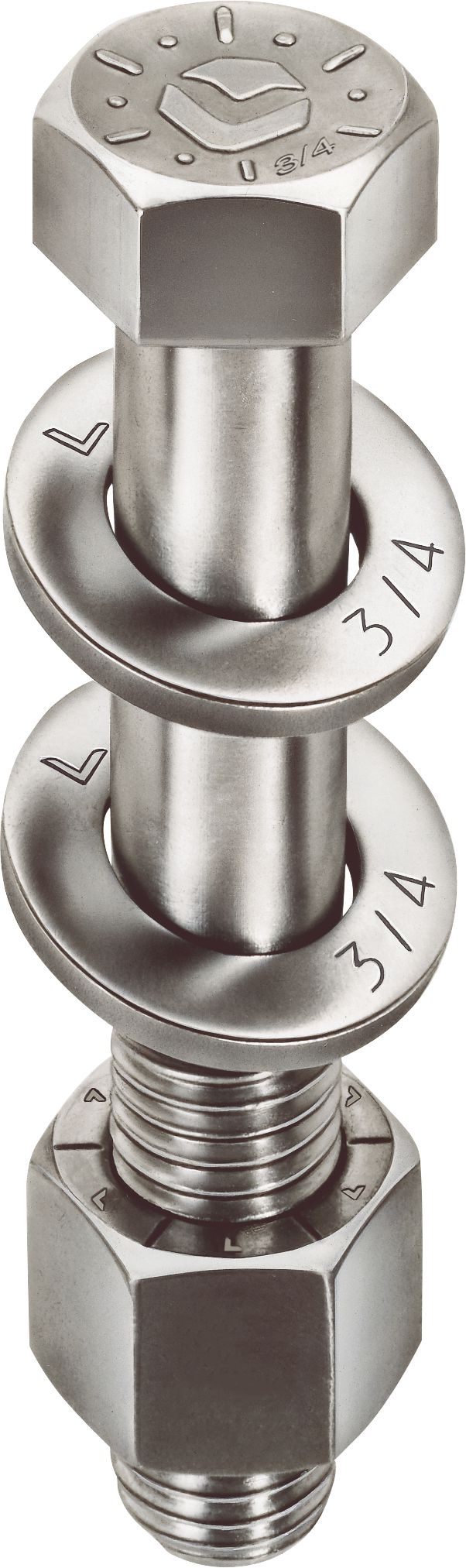

• Matched strength nuts, flat washers and lock nuts available
• Minimum 180,000 PSI tensile strength
• Exceeds SAE, ASTM and Military Grade 8 strength requirements
• Designed for the most demanding maintenance requirements
• For use in critical applications
Minimum Threaded Length – Up to 6" Long: (2 x Diameter) + 1/4"; Over 6" Long: (2 x Diameter) + 1/2
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog Page#: 3-7
Frequently Bought Together
Hex Cap Screw Grade 8 1/4-20 x 3/4"
Couldn't load pickup availability
Hex Cap Screw Grade 8 3/8-16 x 1-1/2"
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 3/8-16 x 1-1/4"
Couldn't load pickup availability
Hex Cap Screw Grade 8 1/4-20 x 3/4"
Couldn't load pickup availability
Hex Cap Screw Grade 8 3/8-16 x 1-1/2"
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 3/8-16 x 1-1/4"
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
Product Description
• Ultra-high-strength matched component fastening system• 20% stronger than Grade 8
• Fatigue/vibration-resistant UNJ thread design
• 20% higher-than-normal wrenching surface for increased safety and even distribution of torque forces
• Heat-treated, quenched and tempered
• Perma Plated for superior corrosion protection
• Proprietary head marking for improved traceability
• Diameter marked on head for easy identification
• Trailing thread does not enter the extrusion angle
• Increased length of chamfer allows easier alignment and assembly
• Matched strength nuts, flat washers and lock nuts available
• Minimum 180,000 PSI tensile strength
• Exceeds SAE, ASTM and Military Grade 8 strength requirements
• Designed for the most demanding maintenance requirements
• For use in critical applications
Minimum Threaded Length – Up to 6" Long: (2 x Diameter) + 1/4"; Over 6" Long: (2 x Diameter) + 1/2
Technical Specifications
| Item#: | A717 |
|---|---|
| Style | Premium |
| Diameter | 3/4 " |
| Thread Pitch | 10 |
| Thread | Coarse |
| Length | 2-1/2 " |
| Type | Hex Cap Screw |
| Across Flats | 1-1/8 " |
| Material | Alloy Steel |
| Grade | 9 |
| Finish | Bright Zinc |
| Tensile Strength | 180,000 PSI |
| Head Style | High Hex |
| Head Height | 9/16 " |
| Thread Form | UNJ |
| Thread Length | Partial |
| Thread Length Minimum | 1-3/4 " |
| UNSPSC #: | 31161501 |
| TAA Compliant: | Yes |
| Weight: | 10.79 lb |
