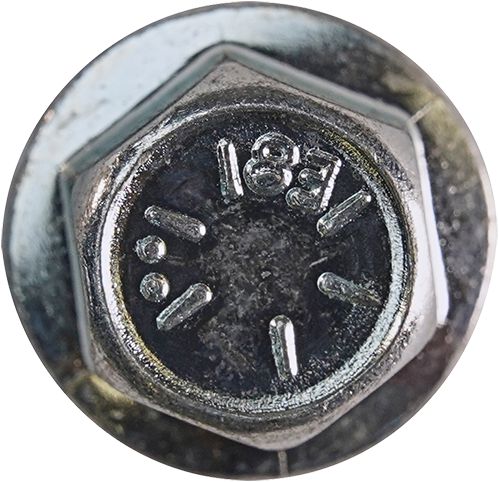

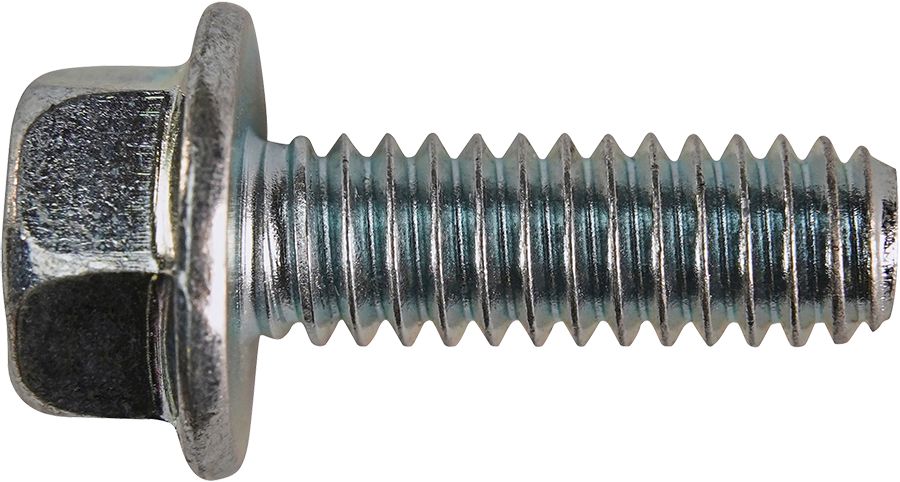

Hex Flange Bolt, Grade 8, Alloy Steel, Zinc Finish, Fine Thread, 15/16" Across Flats, 5/8-18 x 2-1/2"
(Pack of
10)
SKU:97663 Item#: 97663
• Available in coarse and fine thread
• Dimensions conform to IFI-111
• 150,000 PSI minimum tensile strength
• Maximum service temperature: 650°F (343°C)
• Specially designed for truck frame bolting
• For use on Freightliner, Mack, Western, White, Autocar, Peterbilt, IHC and other types of heavy equipment
Couldn't load pickup availability
Catalog page#: 3-58
Frequently Bought Together
Hex Cap Screw Grade 8 Alloy Steel 5/8-11 x 3"
Couldn't load pickup availability
Hex Cap Screw 18-8 Stainless Steel 5/16-18 x 1"
Couldn't load pickup availability
USS Flat Washer Low Carbon Steel 5/16"
Couldn't load pickup availability
Hex Cap Screw Grade 8 3/8-16 x 1-1/2"
Couldn't load pickup availability
Hex Flange Bolt Grade 8 5/8-11 x 2-1/4"
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.5 x 50mm
Couldn't load pickup availability
Utility Knife, Folding , 4" Closed
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Product Description
• Available in coarse and fine thread• Dimensions conform to IFI-111
• 150,000 PSI minimum tensile strength
• Maximum service temperature: 650°F (343°C)
• Specially designed for truck frame bolting
• For use on Freightliner, Mack, Western, White, Autocar, Peterbilt, IHC and other types of heavy equipment
Technical Specifications
| Item#: | 97663 |
|---|---|
| Type | Hex Flange Bolt |
| Diameter | 5/8 " |
| Thread Pitch | 18 |
| Thread | Fine |
| Length | 2-1/2 " |
| Finish | Bright Zinc |
| Material | Alloy Steel |
| Grade | 8 |
| Head Style | Hex Flange |
| Size | 5/8-18X2-1/2 " |
| Across Flats | 15/16 " |
| Specifications | IFI-111 |
| Tensile Strength | 150,000 PSI |
| Maximum Temperature | 650 °F |
| UNSPSC #: | 31161620 |
| TAA Compliant: | Yes |
| Weight: | 3.35 lb |
