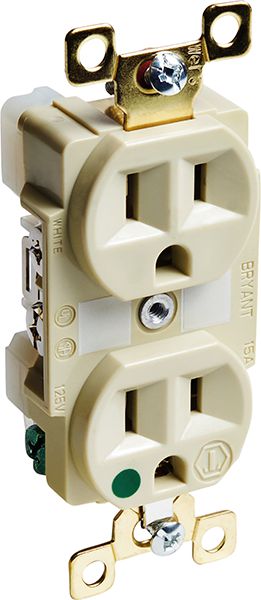

Hospital Grade Duplex Receptacle, 2-Pole, 3-Wire, 15 Amps, 125 Volts, Ivory, NEMA 5-15R
(Pack of
1)
SKU:82551 Item#: 82551
• Green dot signifies Hospital Grade
• 2 pole, 3 wire
• Double-wipe, copper alloy grounding contacts
• One-piece, triple-wipe brass line contacts
• Heavy-duty, copper alloy self-grounding strap
• High-impact, chemical-resistant nylon face and back
• Strip gauge for accurate back wiring
• Heavy-duty, double-plated wraparound steel yoke locked in for maximum strength and security
• Back wiring – eight wiring pockets for convenient feed-through wiring, clamp-type terminals
• Large No. 10 binding head terminal screws fasten wire securely and easily – backed out and staked for fast wiring
• Extra-large green hex head grounding screw for positive grounding
• Break-off tabs for split-circuit wiring
• Thread-cleaning captive mounting screws
• All Lawson Hospital Grade wiring devices conform to OSHA and NEMA specifications and all other safety regulations• Entire device meets or exceeds UL, CSA, NEMA/ANSI and Federal specifications
Couldn't load pickup availability
Catalog page#: 17-88
Frequently Bought Together
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Industrial Duty Watertight Connector 15A 125V
Couldn't load pickup availability
Industrial Duty Watertight Plug 15A 125V
Couldn't load pickup availability
Thermoplastic Plug 15A 125V Yellow
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Ground Fault Receptacle 20A 125V Brown
Couldn't load pickup availability
Toggle Switch SPST 20A 12V Off-White/On-Red
Couldn't load pickup availability
Push-Pull Switch SPST 36VDC Momentary On
Couldn't load pickup availability
Product Description
• Green dot signifies Hospital Grade• 2 pole, 3 wire
• Double-wipe, copper alloy grounding contacts
• One-piece, triple-wipe brass line contacts
• Heavy-duty, copper alloy self-grounding strap
• High-impact, chemical-resistant nylon face and back
• Strip gauge for accurate back wiring
• Heavy-duty, double-plated wraparound steel yoke locked in for maximum strength and security
• Back wiring – eight wiring pockets for convenient feed-through wiring, clamp-type terminals
• Large No. 10 binding head terminal screws fasten wire securely and easily – backed out and staked for fast wiring
• Extra-large green hex head grounding screw for positive grounding
• Break-off tabs for split-circuit wiring
• Thread-cleaning captive mounting screws
• All Lawson Hospital Grade wiring devices conform to OSHA and NEMA specifications and all other safety regulations• Entire device meets or exceeds UL, CSA, NEMA/ANSI and Federal specifications
Technical Specifications
| Item#: | 82551 |
|---|---|
| Style | Hospital Grade Receptacles |
| Volts | 125 |
| Description | Duplex |
| NEMA Configuration | 5-15R |
| Color | Ivory |
| Approvals | UL, CSA, NEMA/ANSI, and Federal Specifications |
| Type | Plugs, Connectors and Receptacles |
| UNSPSC #: | 39121400 |
| TAA Compliant: | No |
| Weight: | 0.22 lb |
