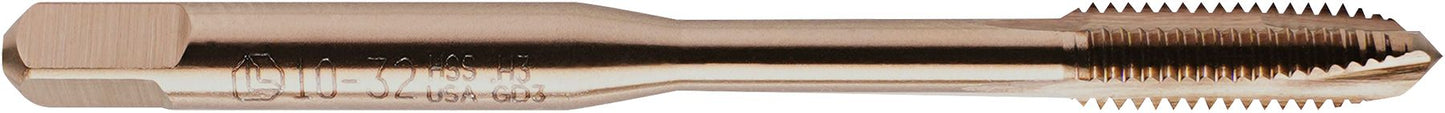

HSS Spiral Point Hand Tap 10-32
(Pack of
1.0)
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap
• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 11-43
Frequently Bought Together
Jobber Length Drill Bit Kit 29 Pcs
Couldn't load pickup availability
Curved Wood Handle Scratch Brush
Couldn't load pickup availability
Jobber Length Drill Bit HSS 19/64"
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
HSS Spiral Point Hand Tap 10-24
Couldn't load pickup availability
HSS Spiral Point Hand Tap 1/4-20
Couldn't load pickup availability

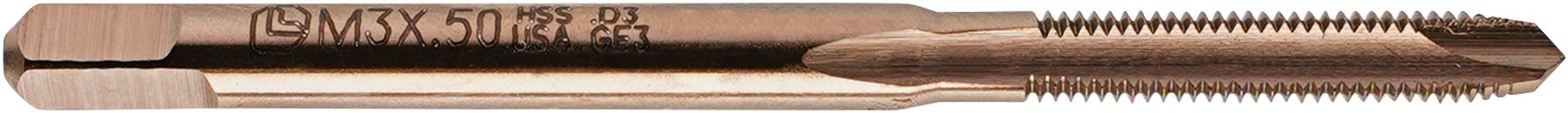

HSS Spiral Point Hand Tap M3 x 0.5
Couldn't load pickup availability
4-Flute HSS Plug Hand Tap M10 x 1.25
Couldn't load pickup availability
4-Flute HSS Plug Hand Tap M5 x 0.8
Couldn't load pickup availability
4-Flute HSS Plug Hand Tap M8 x 1.25
Couldn't load pickup availability
Jobber Length Drill Bit HSS 1/8"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 15/64"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 9/32"
Couldn't load pickup availability
Product Description
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 61121 |
|---|---|
| Type | Machine Screw |
| Diameter | #10 |
| Pitch | 32 |
| Flutes | 3 |
| Thread Length | 1/2 " |
| H Limits | GH3 |
| Material | HSS |
| Recommended Drill Size | No. 21 |
| UNSPSC #: | 23241615 |
| TAA Compliant: | Yes |
| Weight: | 0.125 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
