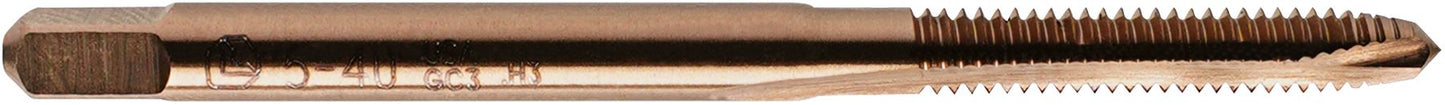

HSS Spiral Point Hand Tap 5-40
(Pack of
1.0)
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap
• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
NOTE: Item No. 61106 through 61111 do not have reduced neck or threads.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 11-43
Frequently Bought Together
Jobber Length Drill Bit HSS 15/64"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 17/64"
Couldn't load pickup availability
Abrasive Hand Pad All Purpose 6 x 9"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Qwik Stik® Electrolyte Powder Mix Grape
Couldn't load pickup availability
Pilotdrive Cryotap 7/8"-9 Starter Hand Tap
Couldn't load pickup availability
Pilotdrive Cryotap M14 x 2.0 Starter Hand Tap
Couldn't load pickup availability
Pilotdrive Cryotap M5 x 0.8 Starter Hand Tap
Couldn't load pickup availability
4-Flute HSS Bottoming Hand Tap M10 x 1.5
Couldn't load pickup availability
4-Flute HSS Bottoming Hand Tap 5/16-18
Couldn't load pickup availability
Cryotap 5/16"-18 Taper Hand Tap
Couldn't load pickup availability
Jobber Length Drill Bit HSS 13/64"
Couldn't load pickup availability
7" Straight Jaw Locking Pliers
Couldn't load pickup availability
Jobber Length Drill Bit HSS 7/64"
Couldn't load pickup availability
Product Description
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
NOTE: Item No. 61106 through 61111 do not have reduced neck or threads.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 61110 |
|---|---|
| Type | Machine Screw |
| Diameter | #5 |
| Pitch | 40 |
| Flutes | 2 |
| Thread Length | 5/8 " |
| H Limits | GH3 |
| Material | HSS |
| Recommended Drill Size | No. 39 |
| UNSPSC #: | 23241615 |
| TAA Compliant: | Yes |
| Weight: | 0.015 lb |
