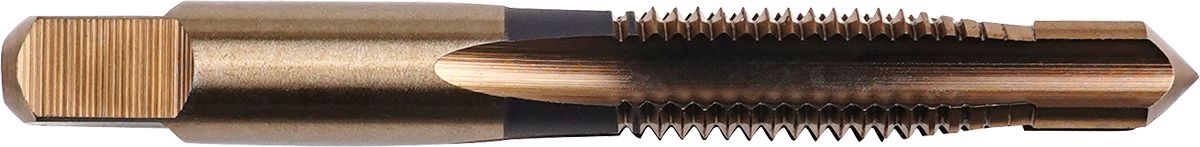

Pilotdrive Cryotap M14 x 2.0 Starter Hand Tap
(Pack of
1)
• Easiest Starting Tap - CENTERLine™ point firmly lodges in the hole to eliminate tap shifting or wobbling with no guide blocks needed
• Non-Drifting - CENTERLine™ point maintains alignment from start to finish even while hand tapping
• Cryophase™ Treated - Increases tool life and maximizes torsion strength
• Precise - Perfect for tapping thin metals because the first few tapped threads are as clean and precise as the last few tapped threads
Specifications
• Material: High Speed Steel
• Coating: Gold Oxide
• Hardness: 64-66Rc
• Number of Chamfered Threads: 4 to 4-1/2 Threads
• Cryophase™: Thermal cycle cryogenic treatment
• Thread Standard: Exceeds ANSI B1.1
Note: Not intended for depths greater than 1-1/2 times tap diameter.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov
Catalog page#: LE-74
Frequently Bought Together
Jobber Length Drill Bit HSS 1/8"
Couldn't load pickup availability
Cut-Off Wheel for Right Angle Grinder 4-1/2"
Couldn't load pickup availability
Twist-On Surface Conditioning Disc 2" Maroon
Couldn't load pickup availability
Hex Cap Screw Property Class 12.9 M20-2.5 x 90mm
Couldn't load pickup availability
Hex Head Bolt with 7/8" Washer Steel 5/16-18
Couldn't load pickup availability
Cable Tie 30" White
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability

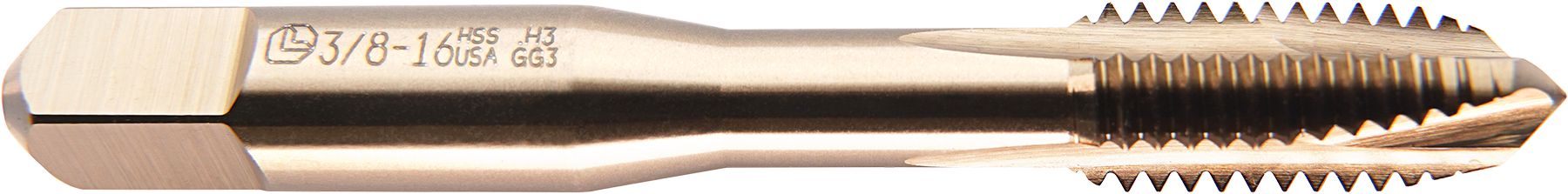

HSS Spiral Point Hand Tap 3/8-16
Couldn't load pickup availability
HSS Spiral Point Hand Tap 9/16-18
Couldn't load pickup availability
HSS Spiral Point Hand Tap 8-36
Couldn't load pickup availability
Cryo-Drap 1/2"-13 Drill & Tap Combo, 135o Split Point, W/Flats
Couldn't load pickup availability
HSS Combination Drill-Tap 6-32
Couldn't load pickup availability
4-Flute HSS Bottoming Hand Tap M10 x 1.5
Couldn't load pickup availability
Jobber Length Drill Bit HSS 11/64"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 7/64"
Couldn't load pickup availability
Screwdriver Anti Slip Phillips No 2 X 4In
Couldn't load pickup availability
Product Description
• Easiest Starting Tap - CENTERLine™ point firmly lodges in the hole to eliminate tap shifting or wobbling with no guide blocks needed• Non-Drifting - CENTERLine™ point maintains alignment from start to finish even while hand tapping
• Cryophase™ Treated - Increases tool life and maximizes torsion strength
• Precise - Perfect for tapping thin metals because the first few tapped threads are as clean and precise as the last few tapped threads
Specifications
• Material: High Speed Steel
• Coating: Gold Oxide
• Hardness: 64-66Rc
• Number of Chamfered Threads: 4 to 4-1/2 Threads
• Cryophase™: Thermal cycle cryogenic treatment
• Thread Standard: Exceeds ANSI B1.1
Note: Not intended for depths greater than 1-1/2 times tap diameter.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | DY80636024 |
|---|---|
| Type | Metric |
| Diameter | M14 |
| Pitch | 2.0 mm |
| Flutes | 4 |
| Overall Length | 3-19/32 " |
| Recommended Drill Size | 12 mm |
| UNSPSC #: | 23241615 |
| TAA Compliant: | No |
| Weight: | 0.135 lb |
Product Restrictions
California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov
