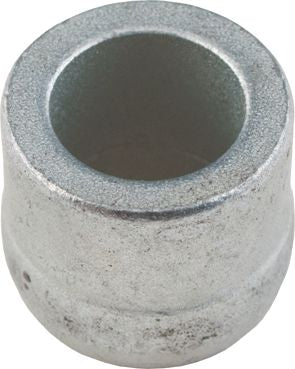

HuckBolt® C50L® Rivet Collar, Standard, Non-Flanged, Carbon Steel, Zinc Plated, 1/2" Diameter, 0.61 to 0.645" Overall Height
(Pack of
10)
SKU:1504984 Item#: 1504984
Delivering uniform, consistent clamp load and high shear and tensile strength, HuckBolts® are ideal for applications ranging from general manufacturing to high-vibration environments such as HVAC, trailer and container assembly and repair, rotating equipment, railroad and transit cars, storage pods, and many others.
HuckBolts® feature an exclusive locking groove design that ensures a tight, permanent fit. In addition to superior fastening performance regardless of which lock bolt type you require, HuckBolts® have been proven to reduce labor and installation costs, along with rework and warranty expenses.
• Superior vibration resistance and overall durability for heavy-duty applications
• Meets or exceeds torqued bolts in shear and tensile strength, and fatigue life
• Offers consistently high, uniform clamp force
• Exceeds ASTM 325 Specifications
• Swaged-on collar forms a permanent, vibration-proof connection
• Initial long length of fastener enables pull-out of large gaps
• Pre-load remains consistent from installation to installation
• Zinc-plated carbon steel
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 7-24
Frequently Bought Together
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
Hex Nut Grade 8 Steel 3/8-16
Couldn't load pickup availability
Hex Nut Grade 5 Steel 1/4-20
Couldn't load pickup availability
Lockbolt Collar Standard Flange Carbon Steel 1/4"
Couldn't load pickup availability
HuckBolt® C6L® Rivet Collar Flanged 3/8"
Couldn't load pickup availability
Lockbolt Collar Standard Flange Carbon Steel 1/4"
Couldn't load pickup availability
Open End Rivet 120° Countersunk Head Steel 1/8"
Couldn't load pickup availability
Backup Washer Round Steel 3/16" Hole
Couldn't load pickup availability
Structural Rivet Internal Lock Aluminum 1/4"
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
1" Dia. X 1" Wide, Flap Wheel, 60 Grit, 1/4" Shank
Couldn't load pickup availability
14Pc Metric 12Pt Cross-Torque Wrench Set
Couldn't load pickup availability
3/8 x 3'' Red Thermapod Sealflex Heat Shrink Tube
Couldn't load pickup availability
1" Dia. X 1" Wide, Flap Wheel, 60 Grit, 1/4" Shank
Couldn't load pickup availability
14Pc Metric 12Pt Cross-Torque Wrench Set
Couldn't load pickup availability
3/8 x 3'' Red Thermapod Sealflex Heat Shrink Tube
Couldn't load pickup availability
Product Description
Delivering uniform, consistent clamp load and high shear and tensile strength, HuckBolts® are ideal for applications ranging from general manufacturing to high-vibration environments such as HVAC, trailer and container assembly and repair, rotating equipment, railroad and transit cars, storage pods, and many others.HuckBolts® feature an exclusive locking groove design that ensures a tight, permanent fit. In addition to superior fastening performance regardless of which lock bolt type you require, HuckBolts® have been proven to reduce labor and installation costs, along with rework and warranty expenses.
• Superior vibration resistance and overall durability for heavy-duty applications
• Meets or exceeds torqued bolts in shear and tensile strength, and fatigue life
• Offers consistently high, uniform clamp force
• Exceeds ASTM 325 Specifications
• Swaged-on collar forms a permanent, vibration-proof connection
• Initial long length of fastener enables pull-out of large gaps
• Pre-load remains consistent from installation to installation
• Zinc-plated carbon steel
Technical Specifications
| Item#: | 1504984 |
|---|---|
| Manufacturer Model #: | LC-2R16G |
| Series | Fixed Grip |
| Diameter | 1/2 " |
| Style | Non-Flanged |
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Body Diameter | 0.765 - 0.800 " |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.49 lb |
