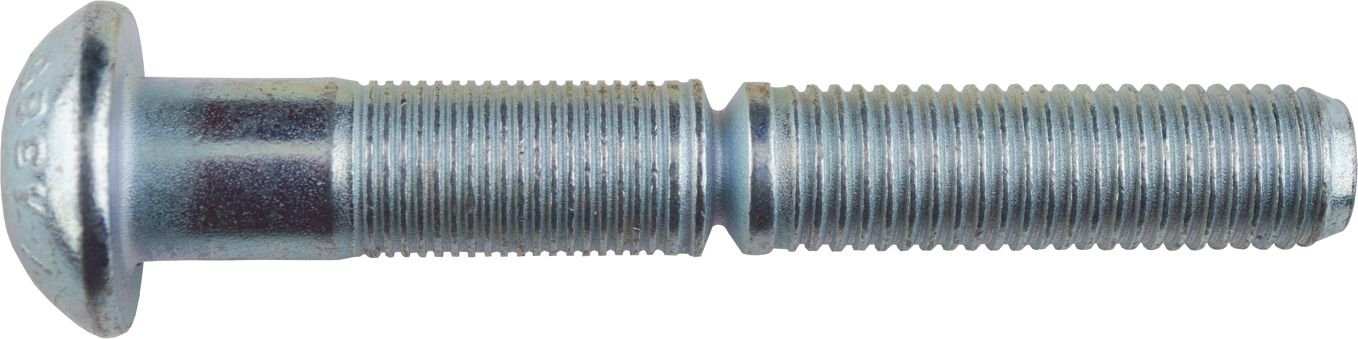

HuckBolt® C50L® Rivet Lockbolt, Round/Button Head, Carbon Steel, Plain Finish, 5/8" Diameter, 0.25 to 0.5" Grip Range
(Pack of
5)
SKU:1504977 Item#: 1504977
Delivering uniform, consistent clamp load and high shear and tensile strength. HuckBolts® are ideal for applications ranging from general manufacturing to high-vibration environments such as HVAC, trailer and container assembly and repair, rotating equipment, railroad and transit cars, storage pods, and many others.
HuckBolts® feature an exclusive locking groove design that ensures a tight, permanent fit. In addition to superior fastening performance regardless of which lock bolt type you require, HuckBolts® have been proven to reduce labor and installation costs, along with rework and warranty expenses.
• Superior vibration resistance and overall durability for heavy-duty applications
• Meets or exceeds torqued bolts in shear and tensile strength, and fatigue life
• Offers consistently high, uniform clamp force
• Exceeds ASTM 325 Specifications
• Swaged-on collar forms a permanent, vibration-proof connection
• Initial long length of fastener enables pull-out of large gaps
• Pre-load remains consistent from installation to installation
• Round/button head design
• Plain finish carbon steel
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 7-24
Frequently Bought Together
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
HuckBolt® Magna-Grip® Rivet Lockbolt 1/4"
Couldn't load pickup availability
HuckBolt® C6L® Rivet Lockbolt Carbon Steel 1/4"
Couldn't load pickup availability
HuckBolt® C6L® Rivet Lockbolt Carbon Steel 1/4"
Couldn't load pickup availability
Structural Rivet Internal Lock Steel 1/4"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Multi-Grip Rivet Large Flange Head Aluminum 3/16"
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Universal Socket Set, SAE, 3/8" Drive, 8pc
Couldn't load pickup availability
Met 24mm, Cross-Torque Wrench
Couldn't load pickup availability
11Pc Lock and Load Hammer Set
Couldn't load pickup availability
Universal Socket Set, SAE, 3/8" Drive, 8pc
Couldn't load pickup availability
Met 24mm, Cross-Torque Wrench
Couldn't load pickup availability
11Pc Lock and Load Hammer Set
Couldn't load pickup availability
Product Description
Delivering uniform, consistent clamp load and high shear and tensile strength. HuckBolts® are ideal for applications ranging from general manufacturing to high-vibration environments such as HVAC, trailer and container assembly and repair, rotating equipment, railroad and transit cars, storage pods, and many others.HuckBolts® feature an exclusive locking groove design that ensures a tight, permanent fit. In addition to superior fastening performance regardless of which lock bolt type you require, HuckBolts® have been proven to reduce labor and installation costs, along with rework and warranty expenses.
• Superior vibration resistance and overall durability for heavy-duty applications
• Meets or exceeds torqued bolts in shear and tensile strength, and fatigue life
• Offers consistently high, uniform clamp force
• Exceeds ASTM 325 Specifications
• Swaged-on collar forms a permanent, vibration-proof connection
• Initial long length of fastener enables pull-out of large gaps
• Pre-load remains consistent from installation to installation
• Round/button head design
• Plain finish carbon steel
Technical Specifications
| Item#: | 1504977 |
|---|---|
| Manufacturer Model #: | C50LR-BR20-4 |
| Series | Fixed Grip |
| Diameter | 5/8 " |
| Maximum Hole Size | 0.688 " |
| Grip Range | 0.250 - 0.500 " |
| Head Style | Button (Brazier) Head |
| Length | 3.656 " |
| Material | Carbon Steel |
| Finish | Plain |
| Head Diameter | 1.141 " |
| Head Height | 0.397 " |
| Clamp Load | 19,200 lb |
| Tensile Strength | 27,100 lb |
| Shear Strength | 22,500 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 1.77 lb |
