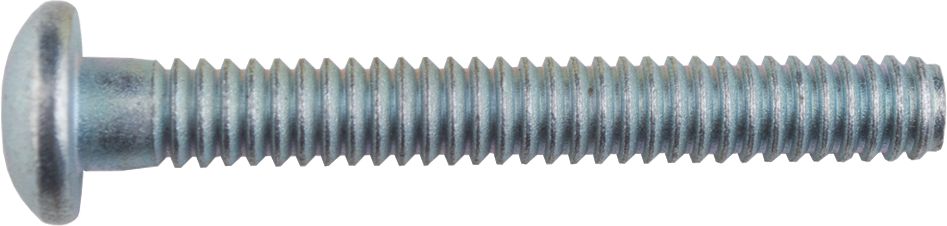

HuckBolt® Magna-Grip® Rivet Lockbolt, Round/Button Head, Carbon Steel, Zinc Plated, 1/4" Diameter, 0.312 to 1.25" Grip Range
(Pack of
10)
Delivering uniform, consistent clamp load and high shear and tensile strength, HuckBolts® are ideal for applications ranging from general manufacturing to high-vibration environments such as HVAC, trailer and container assembly and repair, rotating equipment, railroad and transit cars, storage pods, and many others.
HuckBolts® feature an exclusive locking groove design that ensures a tight, permanent fit. In addition to superior fastening performance regardless of which lock bolt type you require, HuckBolts® have been proven to reduce labor and installation costs, along with rework and warranty expenses.
• Offers the highest level of vibration resistance available
• Consistently provides high, uniform installed values
• Wide grip range can replace up to four traditional HuckBolts®
• Flush-breaking, lock-groove design provides a wide grip range to reduce inventory requirements
• Easy, consistently accurate installations minimize operator errors and rework costs
• Collar material swaged into the annular pin grooves forms a permanent, vibration-proof connection
• Round/button head design
• Zinc-plated carbon steel
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 7-24
Frequently Bought Together
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
HuckBolt® C6L® Rivet Lockbolt Carbon Steel 3/8"
Couldn't load pickup availability
HuckBolt® C6L® Rivet Lockbolt Carbon Steel 1/4"
Couldn't load pickup availability
HuckBolt® Hucktainer® Rivet Lockbolt 3/8"
Couldn't load pickup availability
Backup Washer Round Aluminum 3/16" Hole
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Product Description
Delivering uniform, consistent clamp load and high shear and tensile strength, HuckBolts® are ideal for applications ranging from general manufacturing to high-vibration environments such as HVAC, trailer and container assembly and repair, rotating equipment, railroad and transit cars, storage pods, and many others.HuckBolts® feature an exclusive locking groove design that ensures a tight, permanent fit. In addition to superior fastening performance regardless of which lock bolt type you require, HuckBolts® have been proven to reduce labor and installation costs, along with rework and warranty expenses.
• Offers the highest level of vibration resistance available
• Consistently provides high, uniform installed values
• Wide grip range can replace up to four traditional HuckBolts®
• Flush-breaking, lock-groove design provides a wide grip range to reduce inventory requirements
• Easy, consistently accurate installations minimize operator errors and rework costs
• Collar material swaged into the annular pin grooves forms a permanent, vibration-proof connection
• Round/button head design
• Zinc-plated carbon steel
Technical Specifications
| Item#: | 1504952 |
|---|---|
| Series | Multi-Grip |
| Diameter | 1/4 " |
| Maximum Hole Size | 0.281 " |
| Grip Range | 0.312 - 1.250 " |
| Head Style | Button (Brazier) Head |
| Length | 2.580 - 2.680 " |
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Head Diameter | 0.480 - 0.520 " |
| Head Height | 0.134 - 0.154 " |
| Clamp Load | 2,000 lb |
| Tensile Strength | 4,000 lb |
| Shear Strength | 2,700 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.35 lb |
