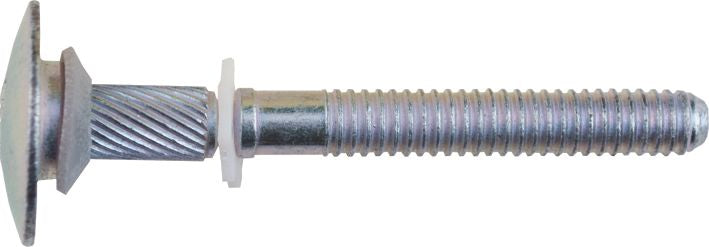

HuckBolt® Hucktainer® Rivet Lockbolt, Standard Low Profile Head, Carbon Steel, Zinc Plated, 0.75 to 0.875" Grip Range
(Pack of
10)
SKU:1504961 Item#: 1504961
Delivering uniform, consistent clamp load and high shear and tensile strength, HuckBolts® are ideal for applications ranging from general manufacturing to high-vibration environments such as HVAC, trailer and container assembly and repair, rotating equipment, railroad and transit cars, storage pods, and many others.
HuckBolts® feature an exclusive locking groove design that ensures a tight, permanent fit. In addition to superior fastening performance regardless of which lock bolt type you require, HuckBolts® have been proven to reduce labor and installation costs, along with rework and warranty expenses.
• Two-piece specialty fastener for fiberglass-reinforced plywood (FRP) panels
• Installs with consistent pressure, reducing crushing or crazing
• Features a heavy zinc plating that resists corrosion
• Incorporates an integral seal keeping elements from invading the joint
• Can never be over-torqued or under-torqued
• Tamper-resistant
• Low profile head design
• Zinc-plated carbon steel
• Tensile strength
– Minimum grip: 1,800 lbs.
– Mid grip: 1,200 lbs.
– Maximum grip: 800 lbs.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 7-25
Frequently Bought Together
Hex Nut Grade 5 Steel 5/8-11
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
Multi-Grip Lockbolt Rivet Head Aluminum 3/16"
Couldn't load pickup availability
Multi-Grip Lockbolt Rivet Head Steel 1/4"
Couldn't load pickup availability
Multi-Grip Lockbolt Rivet Head Steel 1/4"
Couldn't load pickup availability
Open End Rivet Dome Head Stainless Steel 3/16"
Couldn't load pickup availability
Structural Rivet Internal Lock Steel 3/16"
Couldn't load pickup availability
Closed End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
Utility Knife, Folding , 4" Closed
Couldn't load pickup availability
Z-Flex 2" Dia., 60 Grit, Roll Lock Mount, Zirconia Alumina
Couldn't load pickup availability
Slasher Cut-Off Wheel, All Steel, 2 Inch X 1/32 Inch X 3/8 Inch
Couldn't load pickup availability
Industrial-Grade High Solids Spray Paint, Gloss Black
Couldn't load pickup availability
Z-Flex 2" Dia., 60 Grit, Roll Lock Mount, Zirconia Alumina
Couldn't load pickup availability
Slasher Cut-Off Wheel, All Steel, 2 Inch X 1/32 Inch X 3/8 Inch
Couldn't load pickup availability
Industrial-Grade High Solids Spray Paint, Gloss Black
Couldn't load pickup availability
Product Description
Delivering uniform, consistent clamp load and high shear and tensile strength, HuckBolts® are ideal for applications ranging from general manufacturing to high-vibration environments such as HVAC, trailer and container assembly and repair, rotating equipment, railroad and transit cars, storage pods, and many others.HuckBolts® feature an exclusive locking groove design that ensures a tight, permanent fit. In addition to superior fastening performance regardless of which lock bolt type you require, HuckBolts® have been proven to reduce labor and installation costs, along with rework and warranty expenses.
• Two-piece specialty fastener for fiberglass-reinforced plywood (FRP) panels
• Installs with consistent pressure, reducing crushing or crazing
• Features a heavy zinc plating that resists corrosion
• Incorporates an integral seal keeping elements from invading the joint
• Can never be over-torqued or under-torqued
• Tamper-resistant
• Low profile head design
• Zinc-plated carbon steel
• Tensile strength
– Minimum grip: 1,800 lbs.
– Mid grip: 1,200 lbs.
– Maximum grip: 800 lbs.
Technical Specifications
| Item#: | 1504961 |
|---|---|
| Manufacturer Model #: | HLPP-R12-13PL |
| Series | Fixed Grip |
| Diameter | 3/8 " |
| Maximum Hole Size | 0.421 " |
| Grip Range | 0.750 - 0.875 " |
| Head Style | Standard Low Profile Head |
| Length | 2.420 " |
| Material | Carbon Steel |
| Finish | Zinc Plated |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.44 lb |
