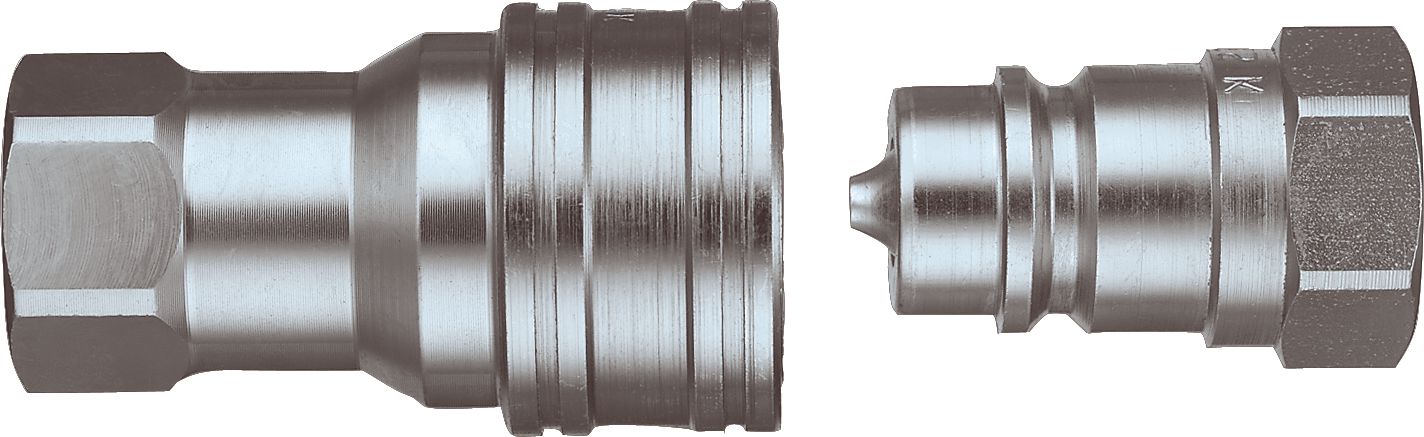

Hydraulic Quick Connect Coupler, Steel, ISO 7241 Series 'A' 1/4" x 1/4-18, Female NPTF, 1.76" Length, 5000PSI
(Pack of
1)
SKU:55900 Item#: 55900
These quality-manufactured couplers and nipples provide excellent performance, outstanding flow characteristics, little pressure drop, and quick connect and disconnect. Best for use with high-pressure hose, and for hydraulic, pneumatic and fluid lines (primarily high-pressure oil lines). Made of solid steel bar stock, they meet the most rugged performance standards.
• Equally effective for low-pressure hydraulic, pneumatic and fluid lines
• All units incorporate a Teflon® back-up ring to withstand dynamic impulse
• Specially tested to the most rugged industry standards
• Stainless steel springs
• Hardened nipples for maximum service life
• Corrosion-resistant finish

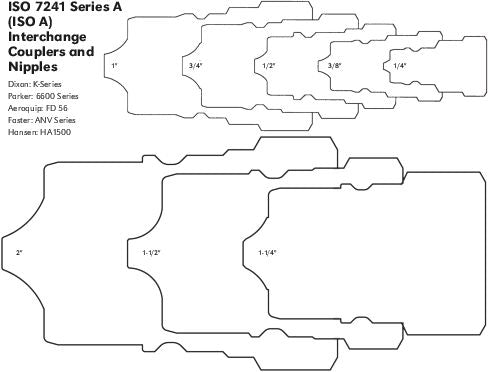

Dixon: K-Series
Parker: 6600 Series
Snap-tite: 61 Series
Faster: ANV Series
Hansen: IA Series
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 8-85
Frequently Bought Together
Crimp-On Hose Coupling 3/4" x 1-1/16-12
Couldn't load pickup availability
MegaCrimp Crimp-On Coupling 1/2" x 3/4-16
Couldn't load pickup availability
Z Series/1A Series Crimp-On Hose End 1/2" x 1/2-14
Couldn't load pickup availability
Ball Check Grease Fitting Straight
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/8-27
Couldn't load pickup availability
Pipe Street Elbow Brass 90° 3/8-18 x 3/8-18
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 3/4" x 3/4-14
Couldn't load pickup availability
Hydraulic Quick Connect Nipple Steel 3/4" x 3/4-14
Couldn't load pickup availability
Hydraulic Dust Cap for Coupler PVC/Rubber 1/2"
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Product Description
These quality-manufactured couplers and nipples provide excellent performance, outstanding flow characteristics, little pressure drop, and quick connect and disconnect. Best for use with high-pressure hose, and for hydraulic, pneumatic and fluid lines (primarily high-pressure oil lines). Made of solid steel bar stock, they meet the most rugged performance standards.• Equally effective for low-pressure hydraulic, pneumatic and fluid lines
• All units incorporate a Teflon® back-up ring to withstand dynamic impulse
• Specially tested to the most rugged industry standards
• Stainless steel springs
• Hardened nipples for maximum service life
• Corrosion-resistant finish
Dixon: K-Series
Parker: 6600 Series
Snap-tite: 61 Series
Faster: ANV Series
Hansen: IA Series
Technical Specifications
| Item#: | 55900 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Coupler |
| Style | ISO 7241 Series 'A' |
| Standards | ANSI/NFPA B93.113M-A |
| Body Size | 1/4 " |
| Thread Size | 1/4-18 |
| Thread Style | Female NPTF |
| Burst Pressure | 18,270 PSI |
| Seal Material | Nitrile (Buna-N) |
| Material | Steel |
| Locking Mechanism | 6 Balls |
| Flow | 2.9 gal/min |
| Length | 1.76 " |
| Temperature Range | -40 to 250 F |
| Working Pressure | 5,000 PSI |
| Hex Size | 3/4 " |
| Maximum Diameter | 1 " |
| Coupled Length | 2-21/32 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 0.2 lb |
